Heavy Duty CNC Vertical Lathe

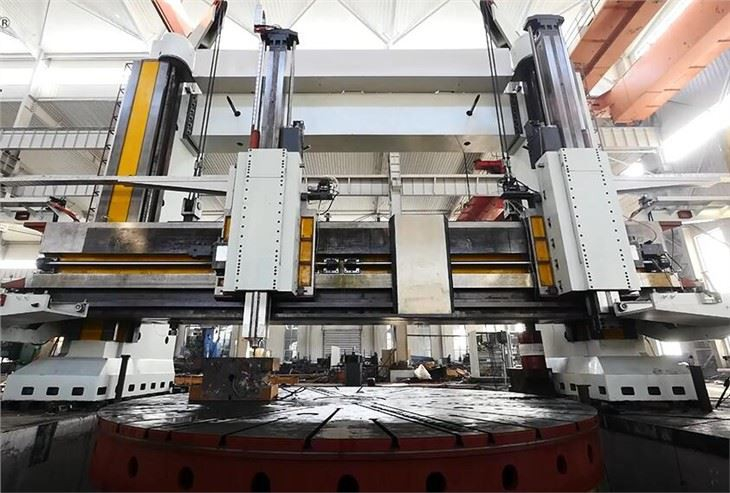

Introduction of Heavy Duty CNC Vertical Lathe Machine

1. It mainly consists of gantry, gearbox, C-axis transmission box, worktable, crossbeam, left and right vertical tool post, etc. The two-axis contour processing is realized by Siemens 828D CNC system.

2. The main drive of the machine tool is driven by a 132KW DC motor, thyristor stepless speed regulation, magnetism 1:4, voltage regulation 1:6.25, mechanical speed regulation ratio 1:4, total speed regulation ratio 1:100.

3. The C-axis transmission of the worktable adopts a separate transmission box, driven by Siemens 1FT6 AC servo motor,

4. The horizontal and vertical directions of the feed mechanism are driven by Siemens IFT6 AC servo motors. The speed is reduced by gear transmission, and the ESC and the override switch are used to make the tool post in the horizontal and vertical directions stepless speed regulation and corresponding speed change. Range and fast movement.

5. The left and right upright columns and the worktable base adopt a separate structure. The gantry is composed of left and right upright columns connected by connecting beams; the lower part of the left and right upright columns are connected with the foundation to form a closed frame structure with high rigidity.

6. The worktable part is composed of worktable, worktable base, main shaft part and transmission mechanism. The worktable part adopts a separated structure, that is, the left and right columns are separated from the worktable base, and the guide rail part of the worktable base is separated from the main shaft.

7. The beam moves vertically on the column guide rail. The beam adopts a welded double-wall symmetrical structure.

8. The beam is made of high-strength and low-stress HT300 castings, the rest are made of HT250 castings, and the ram is made of 45 steel castings;

Parameter of Heavy Duty CNC Vertical Lathe
