Heavy Duty Horizontal Turning Machine Model: CW61100,CW61125,CW61140
| Quantity: | |
|---|---|

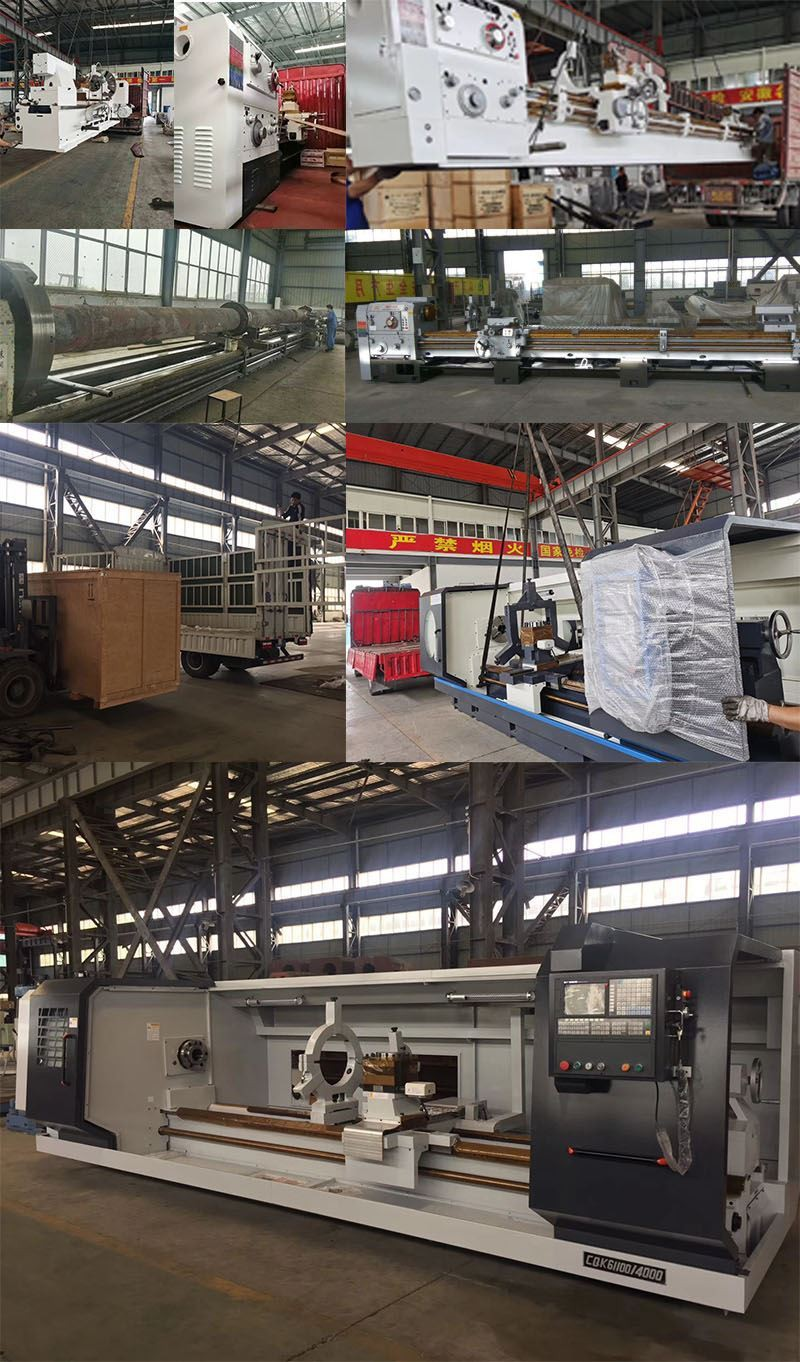

Product Introduction of Heavy Duty Horizontal Turning Machine
CW series Heavy duty Parallel lathe lathe is heavy-duty turning lathes have been developed specifically for turning, milling and heavy-duty machining of very large workpieces. Individually customized by us to its customers' needs, the machines are used in a diverse range of industries: roll manufacturing, section mills, large forges and heavy-duty machine manufacturers as well as companies in the energy sector all over the world.
In addition to rolls, different kinds of shafts are machined, such as marine drive shafts, turbine rotors and toothed gear shafts..
We have a professional R&D team, overseas sales team, documentary team, lorry team, customs clearance team, team for shipping, aftersales team and professional business partner we can rely on.
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
Products Specification of Heavy Duty Horizontal Turning Machine
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
Item | Unit | CW61400 | CW61160 | CW61180 | CW61200 | CW61220 |
Swing over bed | mm | 1400 | 1600 | 1800 | 2000 | 2200 |
Swing over cross slide | mm | 1000 | 1200 | 1400 | 1600 | 1800 |
Wdith of guideway | mm | 1100 | ||||
Distance between center | mm | 3000-20000 | ||||
Max. workpiece through spindle | mm | 128 | ||||
Spindle bore | mm | 130 | ||||
Taper of spindle bore | A2-15 | |||||
Spindle front bearing diameter | mm | 220/280 | ||||
Spindle taper bore | 140; 1:7,120；1:7 | |||||
Spindle rotation step | Manual 6 gear, Manual 4 gear | |||||
Spindle rotation range | r/min | 3-300, 2-200 | ||||
Main motor power | kW | AC30, AC47/AC45 | ||||
Rapid speed motor power | kW | 2.2 | ||||
Tool section | mm | 45x45 | ||||
Tool Turning Angle | ° | ±90 | ||||
Cross Tool Post Travel | mm | 200 | ||||
Longitudinal Too Post Travel | mm | 400 | ||||
Slide travel | mm | 850/920 | ||||
Longitudinal tool post rapid speed | mm/min | 935 | ||||
Cross rapid speed | mm/min | 1870 | ||||
Longitudinal rapid speed | mm/min | 3740 | ||||
Metric thread kinds/range | mm | 43, 1-120 | ||||
Inch thread kinds/range | T.P.I | 29, 28-3/8 | ||||
Module thread kinds/range | mm | 45, 0.5-60 | ||||
Pitch threads range | D.P. | 25, 1-55 | ||||
Longitudinal feeding kinds/range | m/rev | 56, 0.1-12 | ||||
Cross feeding kinds/range | m/rev | 56, 0.5-6 | ||||
Upper tool post | m/rev | 56, 0.025-3 | ||||
Tailstock quill diameter | mm | 260, 280 | ||||
Tailstock quill taper | 80; 1:7 | |||||
Tailstock quill travel | mm | 300 | ||||
Weight | Kg | 23000T(3000mm) | ||||
