Feature of C series Vertical Metal Lathe Customer include: Siemens The vertical lathes are especially suited for machining engine and turbine components, which are primarily used in the turning industry as well as for alternative and classical power generation. The vertical lathes are...
| Quantity: | |
|---|---|
Feature
1. This series 2 Axis Vertical Lathe is suitable for finely and roughly turning cylinder and inner hole,inner and outer taper surfacing, grooving of the ferrous, nonferrous metal and some kind of non-metal materials with carbide alloy porcelain tools.
2. Feed is driven by AC motor, transmitted by ball screw. The universal type has such construction that can be rebuilt into CNC type.
3. By the exchange of 2 Axis Vertical Lathe spindle motor drive, with 16 vertical shaft speed to achieve the speed of table.
4. Table for the hot symmetrical structure. Workstations using high-precision spindle adjustable redial clearance double row cylindrical roller bearings
Short centering. Use constant current axial pressure rails, table rotation with high accuracy, large capacity, small heat distortion characteristics.
5. Holders of the vertical guide rails for HIP unloading. Ram vertical movement for the sliding rails.
6. The 2 Axis Vertical Lathe are especially suited for machining engine and turbine
components, which are primarily used in the turning industry as well as for alternative
and classical power generation. The vertical lathes are characterized by a complete
cast design, high-precision static and dynamic positioning as well as long-lasting
reliability.
7. Bed, as an overall structure, is made of high-strength, low-stress iron casting, adopt effective anti-vibration measures. Combination of bed and table base can improve the reliability of overall rigidity of 2 Axis Vertical Lathe substantially.
Table drive gear and all bearing are supplied with lubricant through specialized oil line by hydraulic system.
8. The working table is made of iron casting, it is a symmetrical geometry which ensure the working table move smoothly within rated speed.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

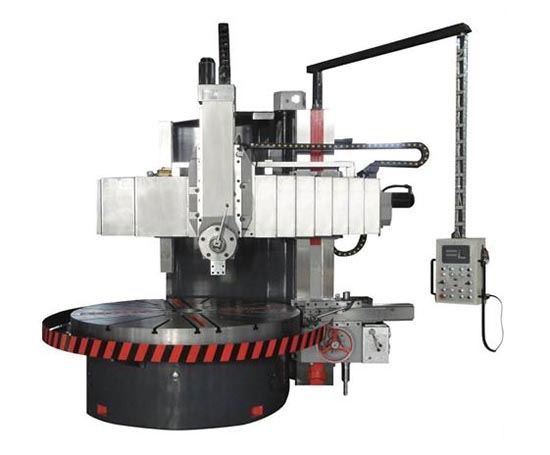

Details of Vertical Lathe Machine of 2 Axis Vertical Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working
Work piece
Customers
Serious and professional testing
Package and Shipping
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Manufacturing Facilities...
Feature
1. This series 2 Axis Vertical Lathe is suitable for finely and roughly turning cylinder and inner hole,inner and outer taper surfacing, grooving of the ferrous, nonferrous metal and some kind of non-metal materials with carbide alloy porcelain tools.
2. Feed is driven by AC motor, transmitted by ball screw. The universal type has such construction that can be rebuilt into CNC type.
3. By the exchange of 2 Axis Vertical Lathe spindle motor drive, with 16 vertical shaft speed to achieve the speed of table.
4. Table for the hot symmetrical structure. Workstations using high-precision spindle adjustable redial clearance double row cylindrical roller bearings
Short centering. Use constant current axial pressure rails, table rotation with high accuracy, large capacity, small heat distortion characteristics.
5. Holders of the vertical guide rails for HIP unloading. Ram vertical movement for the sliding rails.
6. The 2 Axis Vertical Lathe are especially suited for machining engine and turbine
components, which are primarily used in the turning industry as well as for alternative
and classical power generation. The vertical lathes are characterized by a complete
cast design, high-precision static and dynamic positioning as well as long-lasting
reliability.
7. Bed, as an overall structure, is made of high-strength, low-stress iron casting, adopt effective anti-vibration measures. Combination of bed and table base can improve the reliability of overall rigidity of 2 Axis Vertical Lathe substantially.
Table drive gear and all bearing are supplied with lubricant through specialized oil line by hydraulic system.
8. The working table is made of iron casting, it is a symmetrical geometry which ensure the working table move smoothly within rated speed.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Details of Vertical Lathe Machine of 2 Axis Vertical Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working
Work piece
Customers
Serious and professional testing
Package and Shipping
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Manufacturing Facilities...
