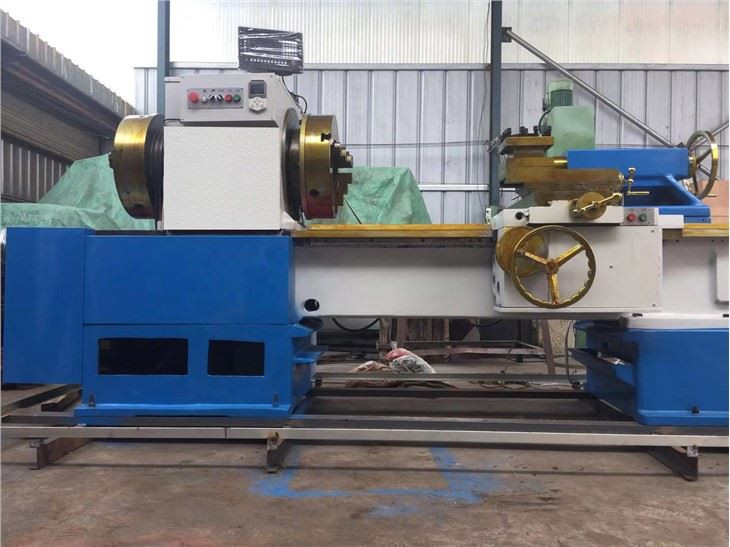

Manual Engine Lathes

1. All cast iron construction 2. Hardened & precision ground bedways 3. No gear in head stock, independent spindle 4. Two chuck for bigger diameter shaft 5. X and Z axis feeded by manual 6. Hardened and ground alloy steel gears, shafts and splines 7. Max. workpiece diameter 245mm 8. Max. length to be machined is 2000+

Quantity:




Inquire Add to Basket

Product Description

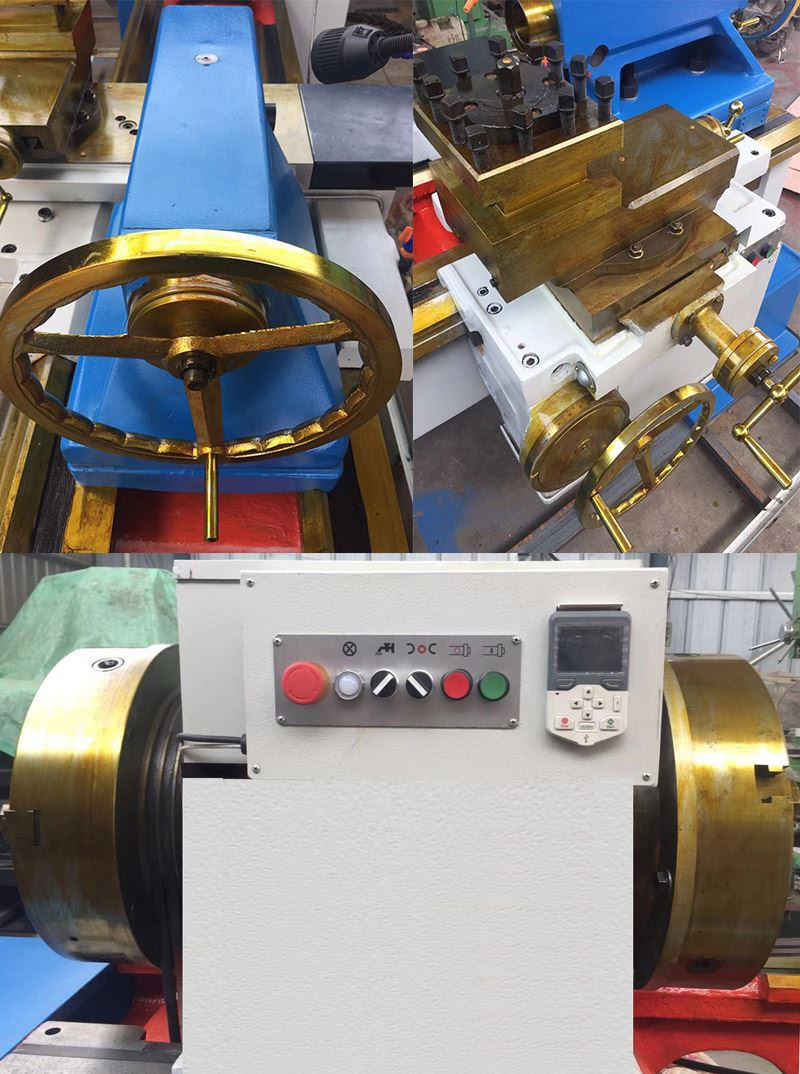

Product Introduction of Manual Engine Lathes

1. All cast iron construction

2. Hardened & precision ground bedways

3. No gear in head stock, independent spindle

4. Two chuck for bigger diameter shaft

5. X and Z axis feeded by manual

6. Hardened and ground alloy steel gears, shafts and splines

7. Max. workpiece diameter 245mm

8. Max. length to be machined is 2000+

Specification of Manual Engine Lathes

Item	Unit	Q1325G	Q1313G
Swing over bed	mm	630	500/400
Swing over carriage	mm	350	330/230
Guideway width	mm	550	360
Spindle bore	mm	250	130
Max. OD of workpiece	mm	245	125
Max. Turning length	mm	As request	As request
Max. Working speed	mm	15-450	15-450
Toolpost position		4 position	4 position
Guideway hardness		HRC52	HRC52
Main spindle power	kW	7.5kW	5.5kW
Chuck O.D.	mm	500	320
X/Z feeding		Manual feeding	Manual feeding
X travel	mm	350	320/180
Z Travel	mm	1000+	1000+
