Are CNC flat bed lathes truly worth replacing traditional lathes? Lathes have shaped manufacturing for centuries, producing parts with accuracy and skill. Today, CNC flat bed lathes promise faster speeds, greater precision, and higher efficiency.
In this post, you’ll learn how they compare in cost, productivity, and quality.

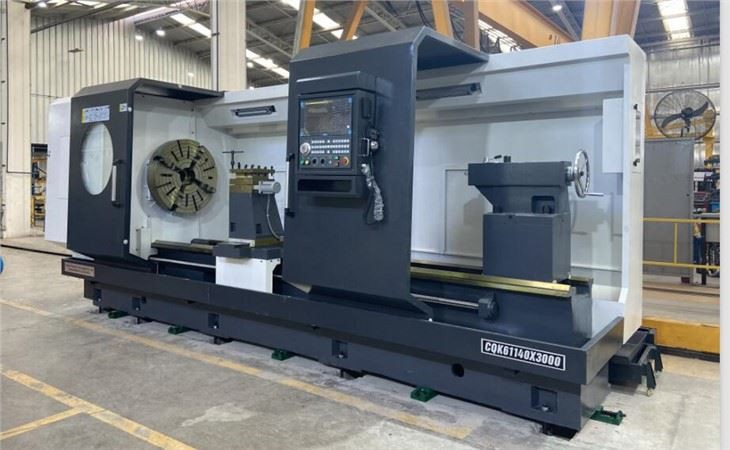

A CNC flat bed lathe is a computer-controlled machine used for turning cylindrical workpieces. It has a flat bed structure that supports the carriage and tool post, allowing stable movement during cutting. The machine’s core parts include the headstock, spindle, tailstock, tool turret, and control panel. Instead of relying on manual adjustments, it uses programmed instructions to set cutting paths, spindle speed, and feed rates. Operators can load a program, and the lathe will repeat the same process with high accuracy. Tool changes happen automatically through an integrated turret or changer, which keeps production moving without constant intervention. This technology is common in industries like automotive, aerospace, oil and gas, and heavy machinery manufacturing, where precision and repeatability are critical.

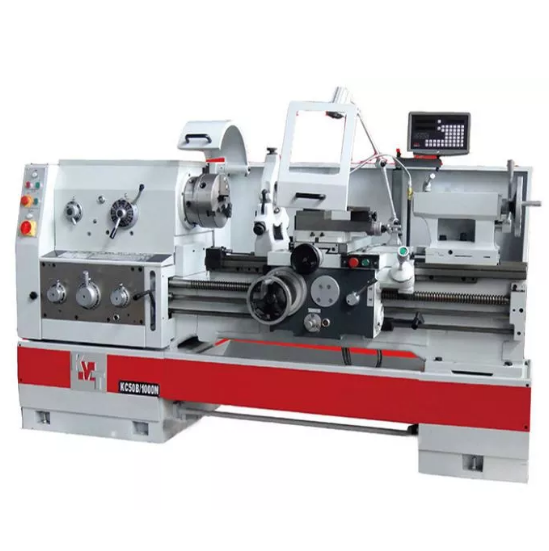

A traditional lathe is manually operated and depends heavily on the skill of the machinist. Common types include engine lathes for general turning, bench lathes for smaller work, and turret lathes for higher output on simpler parts. Operators control cutting depth, speed, and feed by hand, often making adjustments while watching the cut in progress. Because there is no automated control system, the quality of each part can vary, especially across large batches. Traditional lathes are widely used for repair work, one-off prototypes, and jobs where quick setup is more important than speed or tight tolerances. They are versatile in the hands of skilled machinists, but they require more physical effort and constant attention during operation.
A CNC flat bed lathe is built to maintain tight tolerances, often in the range of 0.05 to 0.1 millimeters. It uses automated control to ensure every part matches the programmed design, no matter how many pieces are produced. Operators can run the same program for hours, and the machine will keep producing identical parts. This level of repeatability is hard for a traditional lathe to match because it depends on the operator’s consistency. Even skilled machinists may see small variations between parts after long runs. Automation in CNC machines reduces fatigue-related errors and eliminates many of the variables that can occur during manual turning.
CNC flat bed lathes can control multiple axes at the same time, which speeds up operations. They can perform complex cutting paths in a single setup without stopping for manual repositioning. In many cases, they run three to five times faster than a traditional lathe for similar parts. Another advantage is that they can operate unattended for long periods, especially in high-volume production. A machinist can set it up, start the program, and attend to other tasks while the machine runs. Traditional lathes work at the pace of the operator, which means productivity depends on how quickly and accurately a person can complete each step.
Changing from one part to another on a CNC flat bed lathe is often as simple as loading a different program. There’s no need to manually reset the machine’s position or adjust cutting parameters one by one. This makes them ideal for small-batch production where frequent changeovers are necessary. They can also handle complex geometries without having to switch tools or create special fixtures. On a traditional lathe, switching jobs takes more time because the operator must adjust the machine by hand, select the right tools, and verify the setup before starting the next run. This difference impacts overall throughput, especially in workshops dealing with varied product designs.
Most CNC flat bed lathes are equipped with automatic tool changers that allow them to switch between different tools during a program without stopping. This keeps the spindle turning longer and boosts overall machine utilization. It also reduces downtime since there’s no need for the operator to step in for every tool change. Traditional lathes rely on manual changes, which interrupt the workflow and add setup time. In high-volume environments, those interruptions add up, cutting into potential productivity gains.
Because CNC flat bed lathes control feed rates and spindle speeds precisely, they can achieve consistent and smooth finishes across every part. The machine can adjust parameters mid-process to optimize cutting conditions for different materials or shapes. This consistency makes them valuable for industries where appearance and precision matter equally. In contrast, the finish on a traditional lathe depends heavily on the machinist’s touch. Slight variations in hand control, tool sharpness, or feed pressure can lead to differences in surface quality from one piece to the next. For tight cosmetic or dimensional requirements, that variability can become a limitation.
CNC flat bed lathes are designed to achieve levels of precision that manual machines rarely match. They maintain tight tolerances even over long production runs, keeping part dimensions within a fraction of a millimeter. Automated controls remove much of the variability caused by human input, making every component as accurate as the first. This consistency is critical in industries where a minor dimensional error can affect assembly or performance.
Efficiency is another strong advantage. These machines can work continuously, producing parts faster than a traditional lathe operated by hand. Multi-axis control allows them to perform complex cutting actions in a single setup, eliminating the need for multiple passes or repositioning. By minimizing idle time, they increase throughput and make better use of available shop hours. For high-volume orders, this improvement in productivity directly impacts profitability.
Their ability to create complex shapes and intricate contours sets them apart from older equipment. The programming flexibility lets machinists cut curves, angles, and features that would be difficult or impossible on a manual machine. It also means custom parts can be produced without custom tooling, which saves both time and money. From aerospace components to medical devices, the range of applications is broad.
Preparation and setup times are notably shorter compared to manual processes. Once a part program is ready, the machine can be reconfigured quickly for new jobs. Tool paths, speeds, and feeds are preloaded, so operators spend less time making adjustments. This makes them particularly valuable for shops handling a variety of products with frequent changeovers.
Integration into digital manufacturing systems is straightforward. CNC flat bed lathes can connect to CAD/CAM software, allowing seamless transfer of design data to production. In smart factory environments, they can link to monitoring systems for real-time performance tracking, predictive maintenance, and automated scheduling. This connectivity helps companies optimize their workflow while reducing downtime caused by unexpected issues.
Traditional lathes often have a much lower upfront purchase cost compared to CNC models. For small workshops or businesses just starting out, this makes them an accessible entry point into machining. They require less initial investment, so it’s easier to recover costs even with lower production volumes. Many shops use them as a dependable backup when CNC machines are fully booked.
Maintenance and repairs are also simpler. Most issues can be fixed without specialized diagnostic tools or software, which reduces downtime. Replacement parts are often more affordable and widely available, and repairs can be handled by in-house technicians instead of waiting for a service engineer. This straightforward upkeep keeps them operational for many years when properly cared for.
When it comes to quick, one-off jobs, traditional lathes are hard to beat. There’s no need to create a program or set up a digital file. A skilled machinist can measure the workpiece, set the tooling, and start cutting within minutes. This speed is especially useful for urgent repairs or custom components that need to be made on the spot.
Workshops staffed by experienced manual machinists can get excellent results from these machines. Operators can make small adjustments during the process, responding to variations in material or fit as they go. This level of hands-on control is difficult to replicate with automated systems. For certain applications, that human adaptability remains an asset, especially in low-volume, high-customization environments.
A CNC flat bed lathe can require a significant initial investment, and ongoing maintenance costs are also higher compared to manual machines. Shops must budget for specialized servicing, software updates, and occasional component replacements. It’s not a machine you can simply plug in and operate without preparation. Skilled programmers and trained operators are essential to get the most out of its capabilities. Without them, even the most advanced machine may underperform. Another concern is downtime from software or control system failures. When the programming, sensors, or electronics malfunction, production can halt until the issue is diagnosed and fixed, sometimes requiring external technical support.
Traditional lathes, while simpler to operate, are slower in terms of production speed. They rely entirely on the operator to carry out each step, so output is limited by human pace. Over large batches, maintaining consistent quality can be challenging. Small variations in feed pressure, cutting depth, or alignment can cause differences from part to part. This means more time spent on inspection and rework. The quality of the final product is tied closely to the skill and experience of the machinist. Without a highly trained operator, it’s easy for tolerance requirements to be missed, especially on complex or tight-tolerance jobs.
Choosing between a CNC flat bed lathe and a traditional lathe depends on the kind of work you plan to handle. If parts have complex shapes or demand tight tolerances, CNC machines offer better control and repeatability. They excel when multiple axes must work in precise coordination. Production volume also plays a major role. High output and short turnaround schedules favor CNC automation, while smaller, irregular jobs can be more practical on a traditional lathe. The skill level of your workforce matters too. If your team includes experienced manual machinists, they can maximize the flexibility of traditional equipment. On the other hand, CNC machines need trained programmers and operators who can handle setup and troubleshooting. Budget and long-term goals should not be ignored. CNC machines require higher initial investment but can pay off over time through faster cycles and reduced scrap rates.
| Feature / Requirement | CNC Flat Bed Lathe | Traditional Lathe |
|---|---|---|
| Precision and Repeatability | Very high, automated control | Depends on operator skill |
| Production Speed | High, can run unattended | Moderate to low, manual pace |
| Setup and Changeovers | Quick with stored programs | Manual adjustments take longer |
| Complex Geometry Capability | Excellent, multi-axis programming | Limited by manual tool control |
| Initial Cost | High | Low |
| Maintenance Complexity | Requires specialized support | Simple, often in-house |
| Best For | High-volume, tight-tolerance production | One-off jobs, repair work, prototypes |
In most cases, CNC flat bed lathes fit environments where precision, speed, and automation drive profitability. Traditional lathes remain strong in shops where adaptability and hands-on machining still play a central role.
In the automotive sector, CNC flat bed lathes have become a core part of high-volume parts production. A manufacturer producing brake discs and wheel hubs switched from manual turning to CNC. The change allowed them to cut cycle times by almost half while holding tolerances within 0.05 millimeters across thousands of units. Operators could run multiple machines simultaneously, and automated tool changes reduced downtime between operations. It also meant faster response to design updates because new programs could be uploaded without reworking the setup.
In contrast, a small machine shop specializing in custom repair work relies heavily on a traditional lathe. Their jobs often involve unique or worn parts that don’t have CAD drawings or exact specifications. The machinist measures the damaged component, makes on-the-spot adjustments, and machines the replacement piece by hand. This flexibility lets them serve industries like agriculture and marine repair, where equipment downtime must be minimized, and no standard part will fit without modification.
Transitioning from traditional to CNC operations brings lessons that go beyond the hardware. One manufacturer learned that investing in operator training was just as important as buying the machine. They found that programming efficiency directly affected production gains. Another takeaway was the need for preventive maintenance on CNC systems to avoid costly downtime. Shops that planned for both equipment and skill development saw smoother integration and a faster return on investment.
CNC flat bed lathes deliver precision, speed, and automation, while traditional lathes offer lower cost and adaptability. The right choice depends on part complexity, production volume, and available skills. Weigh the total investment, efficiency gains, and operator requirements carefully before committing.
It uses automated controls to maintain tight tolerances, reducing variations caused by human error.
Only to a limited extent, since manual tool control restricts the range of shapes it can produce.
Yes, trained operators and programmers are necessary to achieve full efficiency and avoid costly mistakes.
A traditional lathe is often faster for small, unique jobs that don’t need programming.
CNC machines require specialized servicing and software support, while traditional lathes have simpler upkeep.
