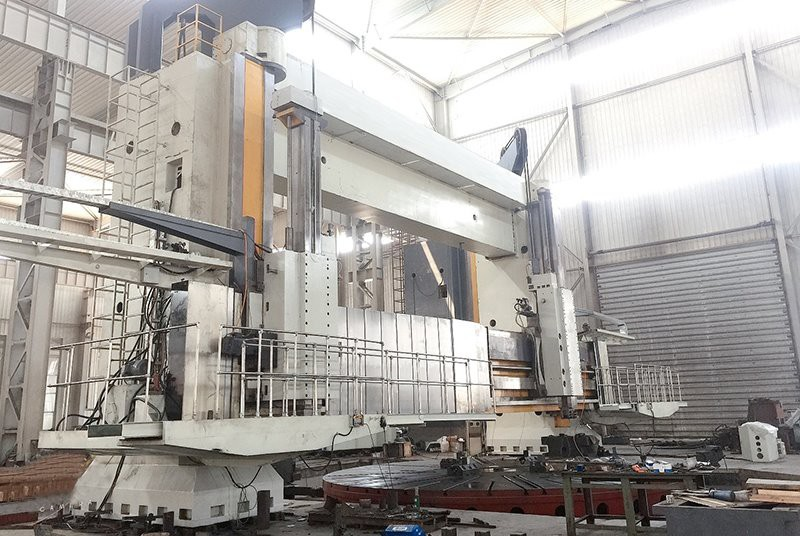

Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. The Single Column Vertical Lathe has high-tech mechanics products with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency
2. The Single Column Vertical Lathe is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
3. Single Column Vertical Lathe is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
4. Spindle bearings use domestic famous-brand company products.
5. The Hardness reaches HRC40-45，gear grinder，Precision can reach level 6. Thereby reduce the vibration and noise of machine tools, improved efficiency and reliability.
6. Feeding system (X-axis, Z axis) is driven by servo motor. Flexible coupling and ball screw directly connect to achieve horizontal and vertical turret feed and fast moving.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

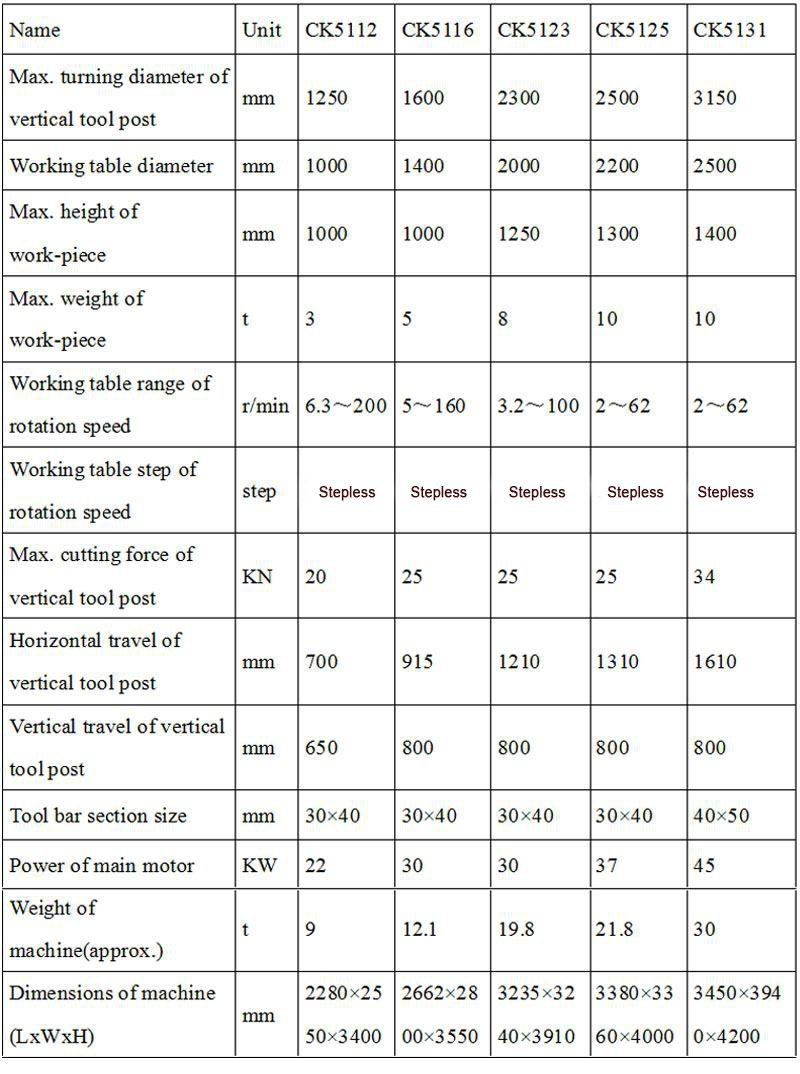

Parameters
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.

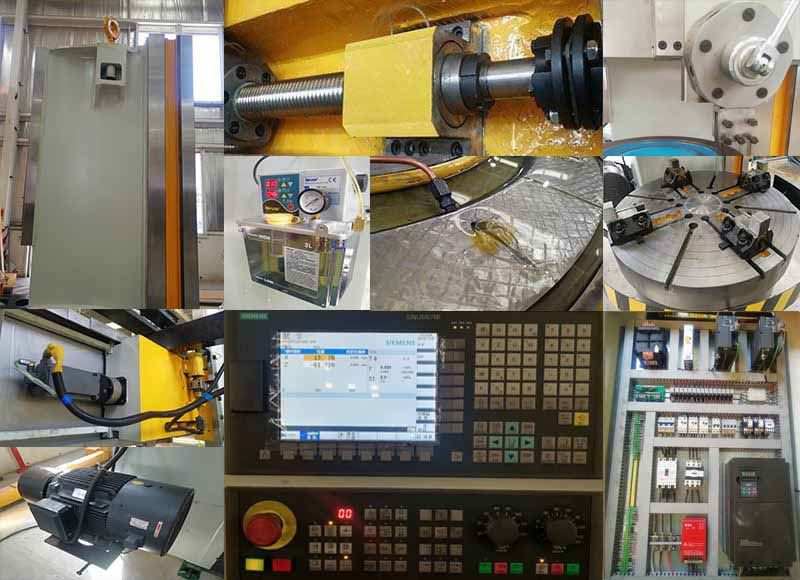

Production details
Guideway is very strenthen and straight.
Low noise while working

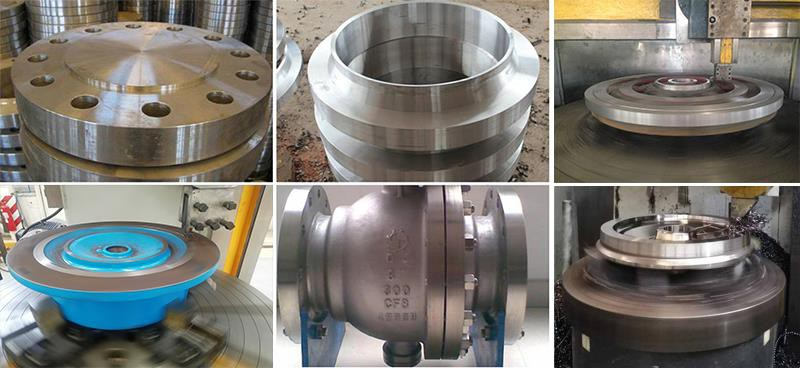

Work piece
The vertical lathe is good at machining tougher work and better.
We use our vertical lathe to machine train wheel, which require high roundness and smoothness.
Customers
Our customers include ITT, Siemens...

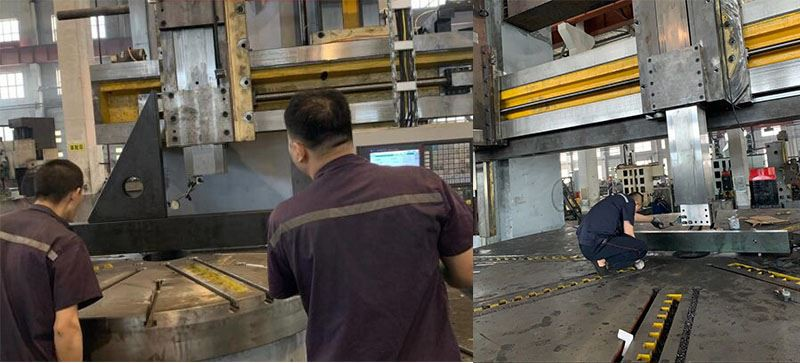

Serious and professional testing

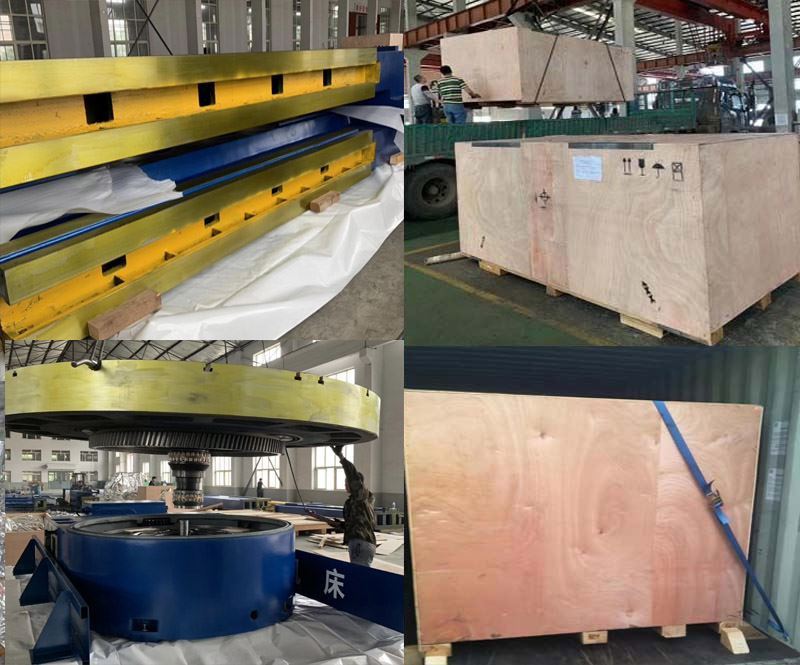

Package and Shipping
