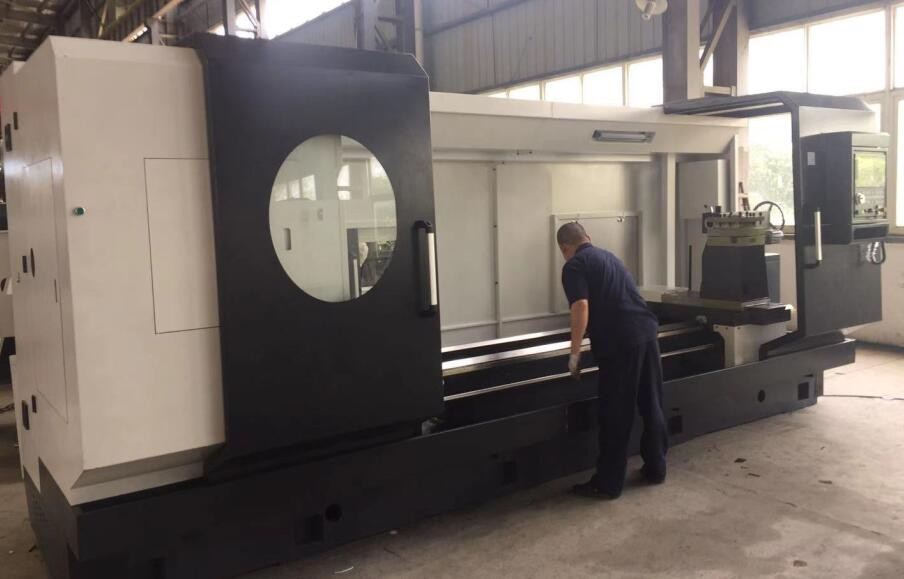

Introduction of CK61125 CNC Horizontal Lathe
This machine tool adopts frequency conversion stepless speed regulation, and the spindle box adopts high and bottom gear manual transmission. High power, high speed, reasonable structure, machining accuracy up to level 6, roundness error no more than 0.01mm, surface roughness no more than Ra2.5um; It is suitable for finishing in medium and small batch machining workshops.
The maximum turning diameter of the bed of this machine tool is 1250mm, which is suitable for turning various rotating surfaces and end surfaces such as cylindrical, conical, and arc surfaces, as well as various metric and inch straight and tapered threads. With appropriate accessories and tools, it can also perform various processing such as drilling, reaming, reaming and tapping.
Parameter of CK61125 CNC Horizontal Lathe
Item | unit | CK61125 |
Swing over bed | mm | 1250 |
Swing over carriage | mm | 865 |
Max. workpiece length | mm | 3000-10000 |
Guideway width | mm | 755 |
Chuck | Four jaw 1000 | |
Tool section | mm | 32X32 |
CNC system | Siemens, FANUC, GSK |
