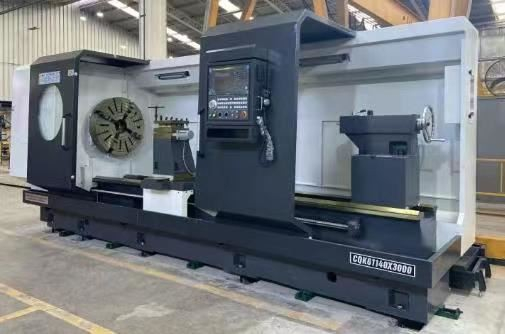

Introduction of CQK61140 CNC Horizontal Lathe
This machine tool adopts frequency conversion stepless speed regulation, and the spindle box adopts high and bottom gear manual transmission. High power, high speed, reasonable structure, machining accuracy up to level 6, roundness error no more than 0.01mm, surface roughness no more than Ra2.5um; It is suitable for finishing in medium and small batch machining workshops.
The maximum turning diameter of the bed of this machine tool is 1400mm, which is suitable for turning various rotating surfaces and end surfaces such as cylindrical, conical, and arc surfaces, as well as various metric and inch straight and tapered threads. With appropriate accessories and tools, it can also perform various processing such as drilling, reaming, reaming and tapping.
Parameter of CQK61140 CNC Horizontal Lathe
Specification | Unit | CQK61140 |
Max. Swing over bed | mm | 1400 |
Max. Swing over carriage | mm | 1080 |
Distance between centers | mm | 3000-10000 |
Max. Turning length | mm | 2850 |
Guideway width | mm | 600 |
Main transmission | 3 gear mechanical speed change，Frequency conversion stepless speed regulation | |
Spindle speed | r/min | 25-850 |
Structure of spindle end face | C11 | |
Workpiece Turning precision | IT6--IT7 | |
Workpiece surface roundness | Ra1.6 | |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Taper hole of tailstock sleeve | Morse 6# |

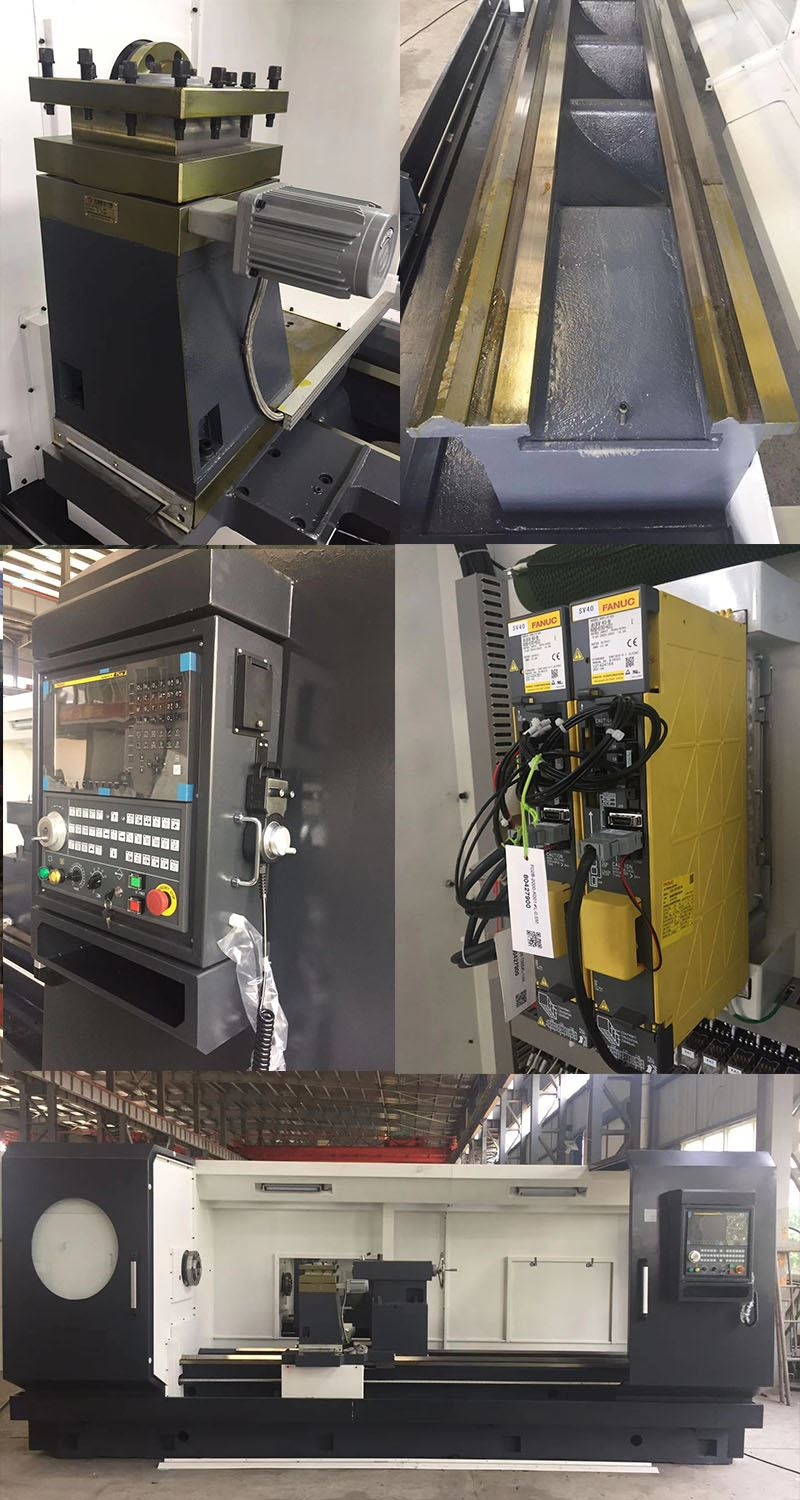

Details

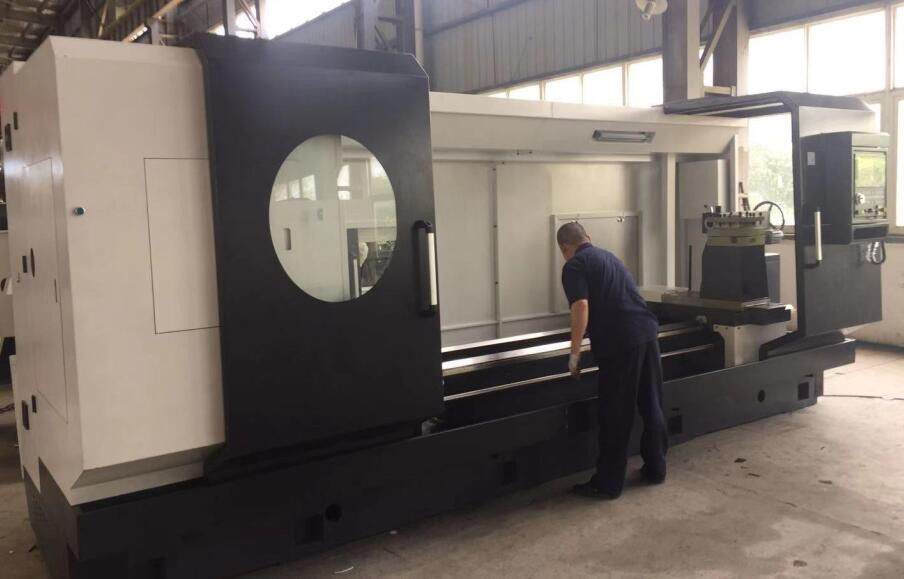

Cleaning machine before delivery
