Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
With development of Vertical Lathe Turning Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these Vertical Lathe Turning are a favorite for manufactures, fabricators, maintenance shops and machine shops.
–Centralized lubricating oil supplying is convenient
–The spindle is to use model NN30(Grade D)bearing and able to turn precisely
–Gear case is to use 40 Cr gear wheel of gear grinding, which has high precision
–Castings of lathe are to use lost foam foundry(short for LFF)technique. Castings are wearable with good quality and dealt by aging
–Vertical Lathe Turning can make rough and accurate turning of cylindrical surface, conical surface, head face, grooving, severance,etc
Products Specification
Parameter can be customized

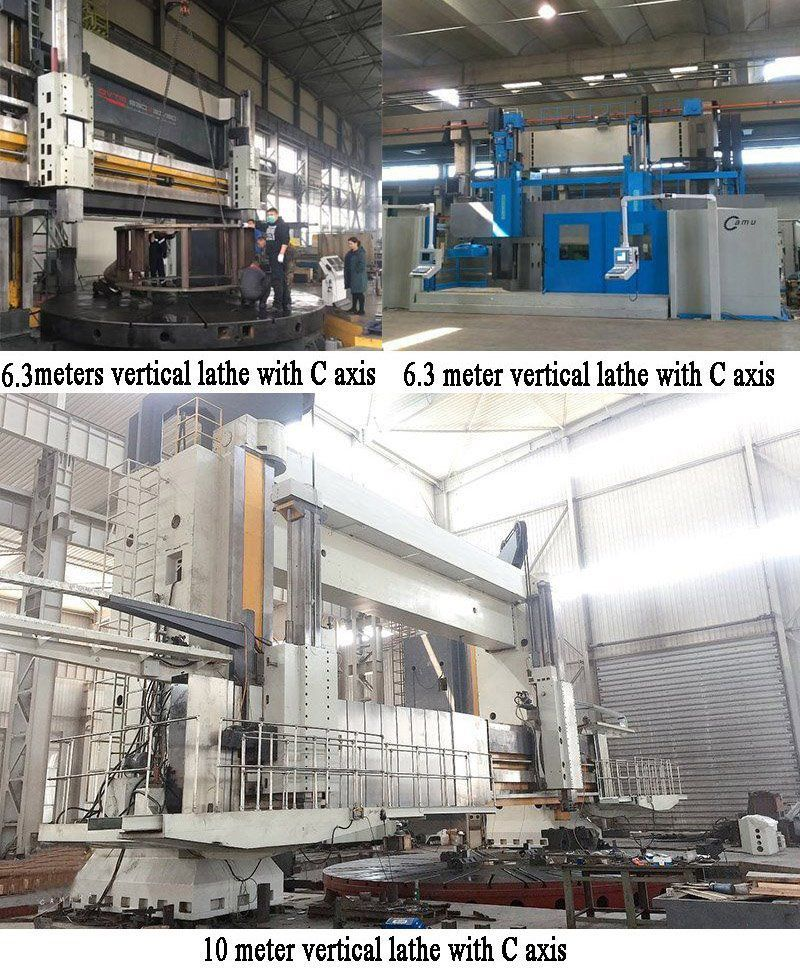

The vertical lathe can be equipped with C axis for milling and boring function.
| Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
| Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
| Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
| Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
| Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
| Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
| Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
| Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
| Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
Work piece
Customers
Serious and professional testing
Package and Shipping
The machine will be tested N times before packaging to guarantee 100% no problem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
