Views: 0 Author: Site Editor Publish Time: 2025-09-04 Origin: Site

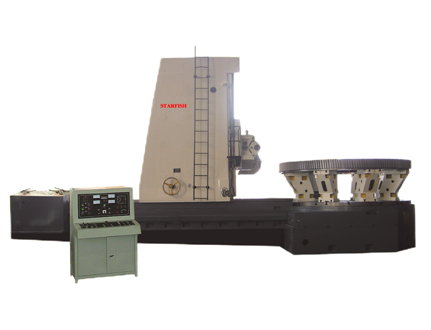

Optimizing your gear hobbing machine settings helps it work better. You do this by adjusting cutting settings, making sure things line up, and picking the best tool and coolant. This lets you make parts faster and more accurately. It also saves money when making many parts. Important settings are radial feed rate, axial feed rate, work spindle speed, hob spindle speed, and hob surface footage per minute. Picking the right cutting oil and keeping the oil flowing well helps the machine work even better. Pay attention to both the machine settings and other important things to get the best results.
Change important settings like radial feed rate and spindle speed. This helps make better gears and keeps tools working longer. Keep the machine lined up right to stop mistakes. This also helps the gear hobbing process go smoothly. Pick the best coolant type and set the right flow rate. This cools things down and makes the gear surface better. Check your gear hobbing process often to find problems early. This helps you get the same good results each time. Use good hob cutters and coatings to work faster. This also means you do not have to change tools as much.
When you know about gear hobbing cutting parameters, you can get better results. Each setting changes how fast you work, how good your gears are, and how long your tools last. You must find a good balance between speed, feed, and accuracy to get the most from your cnc gear hobbing process.
Tip: Changing gear hobbing cutting parameters can help your tools last longer and make the gear surface smoother.
Radial feed rate is how fast the hob moves toward the gear blank. If you set this too high, the gear can get damaged or the tool can shake. If you set it too low, making gears takes longer. Think about how strong your gear hobbing machine is and how hard the gear material is. A steady radial feed rate helps you keep accuracy and makes your tools last longer.
Axial feed rate is how fast the hob moves along the gear blank. This setting changes how chips form and how good the gear teeth are. You need to change the axial feed rate for different things:
Machine tool processing capacity
Number of gear hobs
Material of gear hobs
Service life of gear hobs
Workpiece hardness
Workpiece mandrel rigidity
Workpiece clamping rigidity
Workpiece machining accuracy
The right axial feed rate for your gear hobbing cutting parameters stops too much tool stress and shaking. You get better gear accuracy and your tools last longer.
Work spindle speed is how fast the gear blank spins during hobbing. The right work spindle speed makes cutting smooth and helps chips move away. If you make it faster but do not change other settings, your tools can wear out faster and the gear surface can look bad. Match the work spindle speed to the gear material and the hob you use.
Hob spindle speed is how fast the hob turns. The right hob spindle speed is important for good gear hobbing. If you run the hob too fast, your tools wear out and the spindle uses more power. If you run it too slow, you do not make as many gears. For example, a hob spindle speed of 100 rpm with 12 hob grooves gives a cutting frequency of 20 Hz. Watching spindle power helps you see tool wear and change your gear hobbing cutting parameters for better results.
Surface feet per minute (SFM) is how fast the hob's edge moves across the gear blank. If you make SFM higher, you can make twice as many gears. A higher SFM lets you use a slower rotary feed, which makes less chip load and better gear quality. Your tools also last longer. For steel gears, getting the best SFM is important for making cnc gear hobbing work well.
Critical Setting | Impact on Efficiency and Quality |
|---|---|
Machine Structure | A strong structure stands up to cutting forces and stops mistakes in gear cutting. |
Tool Quality | Good hobs with sharp edges make gears right; old or broken tools make mistakes. |
Control Systems | Smart systems change speed and feed rates, fix errors, and help cutting be more accurate. |
Balancing gear hobbing cutting parameters like feed rate and cutting speed is very important for making gears fast and good. Harder materials need slower speeds so tools do not wear out. Softer materials let you cut faster. If you make cutting speed higher but do not change feed rate, your tools can wear out faster and the gear surface can look bad. A high feed rate can make tools stressed and shake. The right balance helps you remove more material, keep your tools longer, and make gears more accurate.
Note: Always check your gear hobbing cutting parameters when you use new gear materials or hob types.
It is important to keep your gear hobbing machine lined up right. Good alignment stops shaking and helps gear hobbing go smoothly. When you set up your cnc gear hobbing process, look for some common mistakes:
If the hob is not sharpened right, it cuts unevenly and makes gear teeth wrong.
If the swivel angle is set wrong, the gear teeth do not line up and the surface looks bad.
If the hob has runout, the gears can have big problems.
If there is too much backlash in the hob spindle, the gear size can be wrong.
You can stop shaking by making sure all bolts are tight and checking the spindle for looseness. Always look at the hob and workpiece before you start hobbing. This helps you keep your work accurate and your gear making steady.
Tip: Use a dial indicator to check if things are lined up before each gear hobbing job. This easy step helps make gears more accurate and cuts down on waste.
Good hob cutters help a lot in gear hobbing. Sharp and well-made hobs give you better gear accuracy and make tools last longer. The shape of the hob helps it fight wear and makes gears more exact. Hobs with adjustable cutting angles help you keep your work accurate in precision gear manufacturing. If you use old or bad hobs, the gear surface will look rough and you will need to change tools more often. For cnc gear hobbing, always pick hobs with strong cutting edges and good shape.
Tool coatings help hob cutters last longer and make gear hobbing work better. You can choose from different coatings for different gear materials and how many gears you need to make. The table below shows some common coatings and what they are used for:
Coating Type | Key Properties | Applications |
|---|---|---|
Titanium Nitride (TiN) | Good hardness, high-temperature stability | Machining steel, stainless steel, non-ferrous metals |
Titanium Aluminum Nitride (TiAlN) | High hardness, excellent oxidation resistance | Machining hardened tool steels and alloys |
Diamond-Like Carbon (DLC) | Extremely hard, low friction, excellent wear resistance | Cutting non-ferrous and abrasive materials |
AlTiCrN | Excellent oxidation and high-temperature resistance | Machining stainless steel, high-temp alloys |
Zirconium Nitride (ZrN) | Good hardness, oxidation resistance | Machining steel and stainless steel |
You should pick the coating that matches your gear material and how many gears you need to make. Coated hobs cut down on friction and wear, so you get better accuracy and smoother gear surfaces in precision gear manufacturing. For cnc gear hobbing, using coated tools means you do not have to change tools as much and your gears stay good.
You need to set the right spindle speeds for your gear hobbing machine to get the best results. Spindle speed affects how fast the hob and gear blank rotate. If you use the correct formulas, you can match the speed to your gear material and hob size.
Here are the main formulas you should use:
Formula | Description |
|---|---|
$n = \frac{1000 \cdot v}{\pi \cdot d_0}$ | Use this to calculate the hob spindle speed based on cutting speed (v, in m/min) and hob diameter ($d_0$, in mm). |
$n_{\text{workpiece}} = \frac{i \cdot n}{z_2} + \frac{f}{P_Z}$ | This formula helps you find the workpiece spindle speed. It considers the gear ratio (i), hob spindle speed (n), number of gear teeth ($z_2$), feed rate (f), and helical lead ($P_Z$). |
$P_Z = \frac{\pi \cdot d_2}{\tan \beta_2}$ | Use this to define the helical lead at the gear’s pitch diameter ($d_2$) and helix angle ($\beta_2$). |
You should always check your hob spindle speed before starting a new gear hobbing job. If you set the speed too high, you risk tool wear and poor gear surface. If you set it too low, you slow down production. Adjust the speed based on your gear material and hob diameter.
Tip: Use a calculator or CNC control system to help you set spindle speeds quickly and accurately.
Feed rate controls how fast the hob moves through the gear blank. You must match the feed rate to your gear material and the type of hobbing you use. If you set the feed rate too high, you can damage the gear or wear out the hob. If you set it too low, you waste time and energy.
Material properties change how you set feed rates:
Soft materials like aluminum let you use faster feed rates because they have lower hardness.
Hard materials such as stainless steel need slower feed rates to keep the gear surface smooth and protect the hob.
Brittle materials require careful handling and slower feed rates to avoid cracks or damage.
Here is a table to help you choose the right feed rate:
Material Type | Feed Rate Influence |
|---|---|
Soft Materials | Machine faster due to lower hardness. |
Hard Materials | Use slower rates to prevent tool wear. |
Brittle Materials | Handle carefully and use slower feed rates. |
You should also consider the rigidity of your gear hobbing machine and the sharpness of your hob. If you use a rigid setup and a sharp hob, you can increase the feed rate safely. Always monitor the gear surface and tool wear during production.
Note: Different materials need different cutting speeds and feed rates. Steel gears often use hobbing tools made from tungsten carbide. If you match the hob material and coating to your gear, you can increase cutting speeds and improve efficiency.
Surface feet per minute (SFM) measures how fast the hob’s cutting edge moves across the gear blank. You must set the right SFM to balance gear quality, tool life, and production speed. If you use a higher SFM, you can make more gears in less time. If you use a lower SFM, you protect your hob and get a smoother gear surface.
Recommended SFM ranges for common gear materials:
Gear Material | Recommended SFM Range |
|---|---|
Aluminum | 400 - 800 |
Mild Steel | 150 - 300 |
Alloy Steel | 100 - 250 |
Stainless Steel | 80 - 180 |
Cast Iron | 100 - 200 |
You should start with the lower end of the SFM range if you use a new hob or work with hard materials. If you see good gear quality and low tool wear, you can increase SFM for faster production. Always watch for signs of excessive hob wear, such as rough gear surfaces or vibration.
⚡ Pro Tip: Adjusting cutting parameters like hob spindle speed, feed rate, and SFM can reduce cycle time and improve gear hobbing efficiency. Studies show that optimizing these settings helps you make more gears with less tool wear.
If you use cnc gear hobbing, you can set and monitor these parameters with your control system. This helps you keep your gear hobbing process stable and efficient.
You need to pick the right coolant for your gear hobbing machine. Coolant takes away heat when you are hobbing gears. It helps keep the gear size correct. Coolant also lowers friction, so the gear surface looks better. If you use the wrong coolant, your tools can wear out fast or gears can look rough. Here is a table to compare coolants for gear hobbing:
Type of Coolant | Description |
|---|---|
Water-Based Coolants | Water-soluble cutting fluids that provide excellent cooling and effective chip removal. |
Synthetic & Semi-Synthetic | Combines water-based cooling with enhanced lubricity, ideal for precision machining. |
Durakut 525 | A semi-synthetic fluid for machining aluminum and ferrous alloys, offering robust cooling. |
The coolant temperature must be just right. If it gets too hot, it does not work well. If it is too cold, it gets thick and cannot move chips away. Always check the coolant temperature when you are hobbing gears.
You need to set the right coolant flow rate. If you use too little, the hob and gear can get too hot. If you use too much, you waste coolant and make a mess. The right flow rate keeps the hob cool and moves chips away. This helps stop tool wear and keeps your gear hobbing machine working well.
Tip: Good coolant management helps your machine last longer, saves money on repairs, and makes your gears better.
Lubrication helps your gear hobbing machine work smoothly. Good lubrication stops shaking and tool wear. You should do these things:
Use filters and labels to keep lubricants clean.
Store lubricants the right way and check them often.
Pick lubricants that fit your machine’s temperature and work.
Train your team and use machines to add lubricant the same way every time.
Use smart maintenance to save money and buy good lubricants.
Have skilled workers take care of lubrication jobs.
If you follow these steps, your gear hobbing machine will work better and not break down as much. Good lubricants help your machine run quietly and use less power. A good plan for lubrication means your machine works more and your gears turn out great.

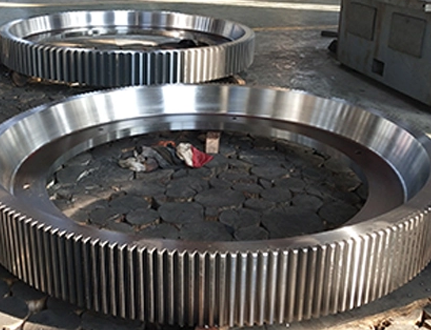

You can make gear hobbing better by working on the gear tooth profile. When you focus on the tooth shape, you help the gear handle more weight. This also makes the gear last longer and work better. You save money because you can use standard hobs instead of special ones. Here are some good things about improving the gear tooth profile:
You lower stress in one spot, so gears last longer.
You spread out stress along the tooth, making it stronger.
You use standard hobs, which makes making gears cheaper.
Getting the tooth profile right is important for precision machining. If you pay attention to these details, your gears work better and are more exact.
You can use a three-part model to make gear hobbing better. This model helps you balance speed, price, and accuracy. The table below shows how different parts work together in cnc gear hobbing:
Aspect | Description |
|---|---|
Optimization Method | Proposed helical gear processing parameter optimization method (PPOM-HG) |
Efficiency Model | Analysis of the geometric trajectory of a hob |
Cost Model | Power curve analysis and hob lifetimes under various parameters |
Precision Prediction Model | Modified correlation analysis random forest (CARF) model for predicting gear machining precision |
Optimization Algorithm | Adaptive multiobjective fusion evolutionary algorithm (AMFEA) for finding optimal solutions |
Validation | Helical gear machining experiments demonstrate effectiveness |
You can use prediction models and smart algorithms to help with precision machining. These tools help you pick the best cnc gear hobbing settings for your needs. You also save money and work faster by looking at power use and how long hobs last.
You need to watch your gear hobbing process to keep it accurate and avoid mistakes. Real-time checks and quality systems help you meet gear size rules. Automatic inspection systems find problems with gear tooth shapes or spaces fast. You can use gear analyzers, CMMs, and gear testers to check your work. Checking often helps you keep things the same and spot problems early.
For always getting better, try these tips:
Check and fix tools often to keep gear hobbing good.
Remove chips well to protect your tools.
Stop shaking and noise by setting up the machine right.
Keep gears from bending by using good setups and steps before cutting.
Watch the temperature to keep gear size and material right.
You get better cnc gear hobbing when you keep checking and use these ideas. Your precision machining gets better, and your gears meet tough rules.
You can make gear hobbing work better by changing important settings. Always check if the machine is lined up right. Use good tools to help your work. Watch hob speed, axial feed speed, and radial cutting depth. These numbers show how well you are doing. Look at your process often and learn new skills with new technology.
Many companies, like car and plane makers, get more products and better quality when they set up their machines the best way.
Keep learning so you can work better and keep your work steady.
Always try to make your process better for good results each time.
You should focus on spindle speed first. This setting controls how fast the hob and gear blank turn. Proper spindle speed helps you balance tool life, gear quality, and production speed.
You should check alignment before every new job. Regular checks help you avoid errors and keep your gears accurate. Use a dial indicator for quick and reliable results.
Water-based coolants work well for most gear hobbing jobs. They cool the tool and remove chips. For tough materials, you can use semi-synthetic coolants for better lubrication.
Look for rough gear surfaces or increased vibration. If you see chips sticking to the hob or hear unusual noise, replace the cutter. Regular inspection helps you avoid poor gear quality.
No, you must adjust settings for each material. Harder metals need slower speeds and lower feed rates. Softer metals allow faster cutting. Always match your settings to the gear material for best results.
