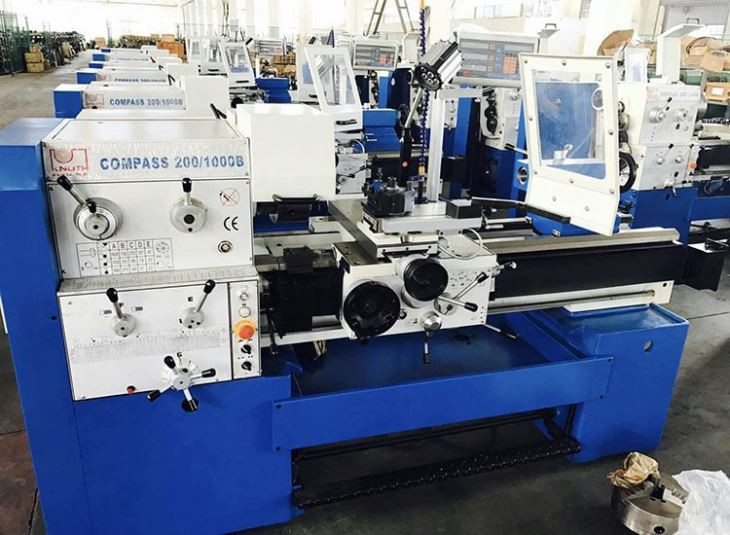

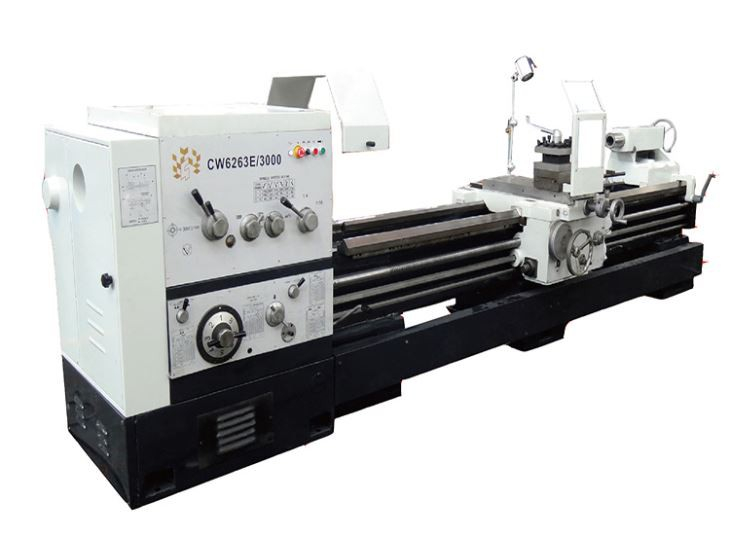

Horizontal Lathes

Swing over bed: 630mm, 800mm, 1000mm, 1200mm Spindle Bore: 105mm, 130mm

Quantity:




Inquire Add to Basket

Product Description

Product Introduction of Horizontal Lathes

Metal Lathes have earned a reputation as heavy weights among mid-size lathes.

They are ISO compliant, include a wide array of features and accessories as

“standard” and offer a variety of built-in safety features. Engineering innovations

make one of the easiest precision lathes to operate in its class, while producing

pinpoint accuracy for the finest finishes, Standard on each machine is a

quick-change gearbox for cutting inch, metric, module and diametrical pitch threads

without change gears.

Specification of Horizontal Lathes

Model NO.	CW6163E/ CW6263E	CW6180E/ CW6280E	CW61100E/ CW62100E			CW61120E/ CW62120E
Swing over bed	Φ630mm	Φ800mm	Φ1000mm			Φ1200mm
Swing over carriage	Φ350mm	Φ485mm	Φ685mm			Φ800mm
Max. Swing in gap	Φ830mm	Φ1000mm	Φ1200mm			Φ1400mm
Max. Length of workpiece	750/1250/1750/2750/3750mm
Effective gap length	230mm
Bed width	550mm
Spindle bore	Φ105mm, Φ130mm
Spindle nose	C-11 or d-11
Spindle taper of bore	1:120 or 120mm(Φ140mm)
Spindle speed (number)	14-750 RPM(18 step)
Metric thread range(kinds)	1-240(54 kings)
Inch thread range(kinds)	28-1 inch(36 kinds)
Module Threads pitches (kinds)	0.5-60 DP (27 kinds)
Diametrial threads range(kinds)	30-1 T.P.I (27 kinds)
Longitudinal feeds range(kinds)	0.048-24.3mm/r (72 kinds)
Cross feeds Range	0.024mm-12.15mm (72 kinds)
External diameter of the tailstock quill	Φ75mm
Rapid feed long/cross:	4/2m/min
Leadscrew size: diameter/pitch	T48mm/12mm
Cross slide travel	350mm	420mm			520mm		620mm
Max. Travel of compound rest	200mm
Size of tool shank	32x32mm
Spindle of diameter	Φ100mm
Spinle taper	Morse 6°
Spindle travel	240mm
Main drive motor	11kw
Coolant pump motor	0.09kw
Rapid fed motor	1.1kw
Weight floor space(LxWxH)	3452X1326X1390
Weight	4300kg	4500kg		5000kg				5500kg

Details

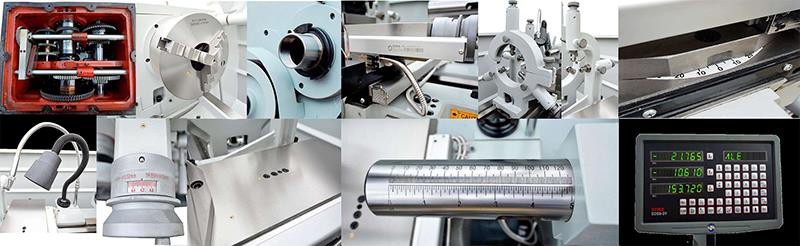

Products details1

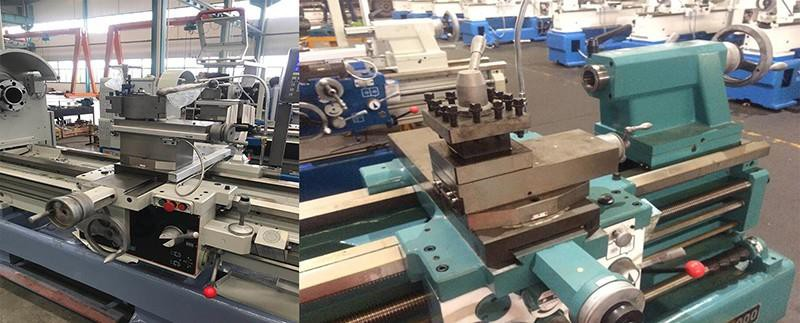

Products details

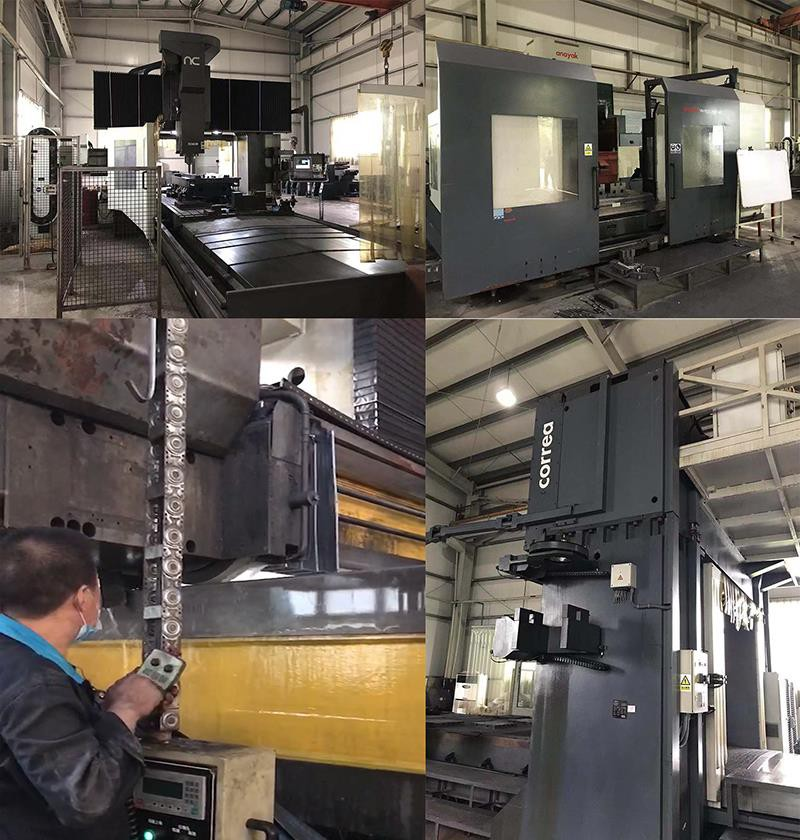

Manufacturing facilities
