Have you ever wondered how modern machines shape complex parts with such precision? CNC vertical machining makes this possible—with a vertical spindle and computer control. It’s transforming how manufacturers across industries create parts with speed and accuracy.
In this post, you’ll learn what CNC vertical machining is, how it works, and why it matters. Engineers, machinists, and manufacturers will find valuable insights to boost production quality.

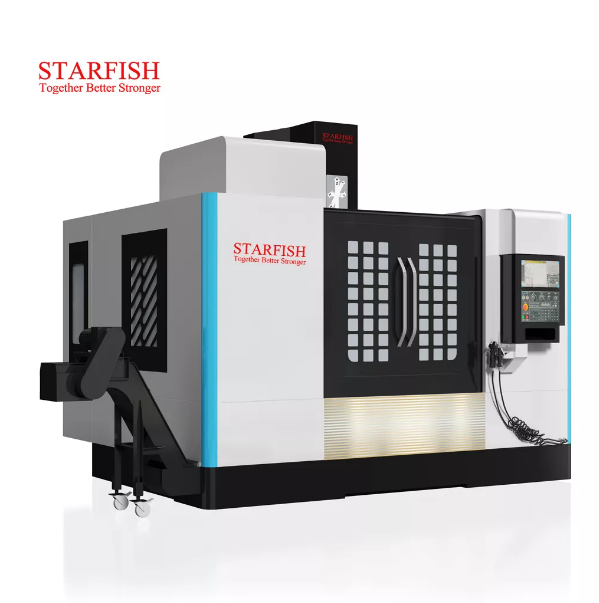

CNC vertical machining is a manufacturing method that uses computer-controlled machines to remove material from a workpiece. The unique part? The spindle is set vertically. That means the cutting tool approaches the material from above, making it perfect for parts that need top-down tool access. You’ll often hear it called VMC, short for vertical machining center.
So how does it actually work? Once a program is loaded into the CNC controller, the machine follows those commands to move the tool and table. The table can shift in the X, Y, and Z directions, and in some cases, rotate. The tool spins fast, sometimes over 10,000 RPM, carving shapes, holes, and threads into metal, plastic, or other materials. Most machines also switch tools automatically, making the whole process more efficient.
Now, how is CNC vertical machining different from general CNC machining? It’s mainly about the spindle orientation. In vertical systems, the spindle stands upright. In horizontal machines, the spindle lies on its side. This difference affects how chips fall, how parts are supported, and even what shapes can be cut efficiently.
The vertical spindle setup has big advantages. It makes tool setup easier and gives operators a better view of the cut. It's a popular choice for mold cavities, plates, and small to mid-size components. For shops that deal with precision and variety, CNC vertical machining hits the sweet spot.
At the heart of the configuration of any CNC vertical machining center is the spindle. It holds and spins the cutting tool, pushing it down vertically into the workpiece. This vertical position is what gives VMCs their name and unique functionality. The spindle must be strong enough to cut tough materials and fast enough to keep production efficient. Many machines hit speeds of 10,000 RPM or more, which helps shape fine details and smooth finishes. It’s the power and stability of the spindle that determines how well a machine can handle precision tasks.
The worktable is where the material sits. It moves in three main directions—X, Y, and Z—allowing the tool to cut in all needed angles. Some VMCs go even further by adding rotation or tilt through 5-axis or 6-axis configurations. These advanced options help tackle parts with tricky shapes or hidden features. To keep the workpiece from shifting during cuts, strong holding devices are used. Magnetic chucks are common, especially when the job needs secure positioning without clamps getting in the way. They hold the part firmly so the spindle can do its job without interruptions.
Manually changing tools takes time. That’s why most CNC vertical machining centers use an automatic tool changer. This system grabs the right tool for each step in the job, swaps it in seconds, and keeps the process moving. It helps eliminate downtime, especially during complex projects that use drills, mills, and taps all in one run. Some machines carry more tools than others, so it’s worth checking tool magazine capacity when picking a VMC.
The brain of the VMC is its control system. It reads digital instructions and turns them into precise machine movements. This is where G-code comes in. These lines of code tell the machine where to go, how fast to move, and what to cut. Advanced systems also include user-friendly screens, making it easier to program, test, and adjust on the fly. With modern software, users can simulate the toolpath before the real cut begins, helping reduce errors and save material.
Milling is the most common task a CNC vertical machine performs. It shapes flat surfaces, cuts out pockets, and carves complex 2D or 3D contours. The spindle moves vertically while the table shifts side to side and front to back. This lets the machine trim precise edges or sculpt curves into metal or plastic parts. Whether it's making a simple plate or a detailed bracket, milling is where most jobs begin.
When you need holes, the machine switches to drilling. It can create shallow or deep holes with exact placement. After the hole’s made, tapping cuts internal threads so bolts can fit tightly. Both drilling and tapping rely on spindle control and feed rate. If done right, you avoid thread damage and tool wear. In production runs, automatic tool changes make this process quick and repeatable.
Boring takes an existing hole and makes it wider or more precise. It’s often used when the original hole isn’t quite the right size. Maybe it’s too small, or not round enough. A boring tool rotates inside the hole, gently shaving material until the diameter meets the spec. You’ll see this done a lot in engine block or bearing housing production where tight tolerances matter.
Some parts aren’t flat or round—they’re full of curves, angles, or 3D shapes. That’s where contour machining comes in. VMCs use programmed toolpaths to follow these complex outlines. It’s key for things like molds, dies, or aircraft components. In aerospace, for example, blades and brackets need perfect curves to reduce drag or balance weight. With multi-axis setups, machines handle these shapes in fewer setups, saving time and improving consistency.
CNC vertical machining centers offer a blend of speed, accuracy, and flexibility that makes them ideal for many shops. Let’s break down what makes them such a smart investment.
These machines are built to hit tight tolerances—sometimes as fine as ±0.004mm. Once a program is set, the system repeats the same path every time, no matter how many parts you’re making. That’s why they're used for critical components like engine housings or surgical implants. The consistent accuracy comes from rigid frames, stable spindles, and precise feedback systems.
Operators can load tools, clamp parts, and hit start in just a few steps. Automatic tool changers handle complex jobs without manual intervention. The CNC system follows pre-written instructions, so there’s no guesswork during cutting. For high-volume work or parts that need multiple tools, this setup saves hours of labor each day.
Compared to horizontal machining centers, vertical setups cost less to buy, install, and maintain. They also take up less floor space. You don’t need a huge facility or a large team to get started. Even small workshops use them for short production runs, prototyping, or niche products. The ability to handle multiple jobs on a single machine adds to their value.
Because everything’s visible from the front, it’s easier to set up and monitor each cut. If something looks off, operators can stop the process and fix it fast. Maintenance tasks like lubrication, tool checks, or sensor cleaning are simpler since most parts are easy to access. This user-friendly design keeps downtime low and productivity high.
Vertical machines take up less space than their horizontal cousins. The upright spindle means less machine footprint and better use of workshop space. That matters a lot in small or crowded shops. You can line up multiple units side by side without needing special foundations or extra clearance.
Start by thinking about what parts you plan to machine. Are they small and detailed or large and flat? Will you cut steel, aluminum, or something softer like plastic? Different materials need different spindle speeds and rigidity. Also, if you’re doing mold work or medical parts, you may need multi-axis setups or ultra-tight tolerances. Make sure the machine fits your specific tasks before focusing on extras.
A CNC vertical machine’s performance depends on its frame. A V-frame design gives better thermal stability and stiffness under pressure. That means fewer vibrations and more accurate cuts. Most good machines today are tested using finite element analysis before production. This helps designers know how the frame will react under stress. Look for machines where weight is balanced well and supported by strong castings.
Some jobs demand repeatable micron-level precision. Others are less strict, especially for roughing or basic hole drilling. If you’re mass-producing parts, even a slight error can cost you. It’s important to match your accuracy needs to your budget. Don’t overpay for features you won’t use, but don’t go too cheap either. Look at ball screw quality, tool feedback systems, and encoder setups. All these affect how tight your tolerances can be—especially over time.
Heat is the enemy of accuracy. As spindles spin fast and axes move, they generate heat. That heat causes machine parts to expand, shift, and throw off precision. To manage this, high-end machines use internal coolers, temperature sensors, and improved ball screw systems. Some even adjust position based on real-time thermal readings. If you plan to run long jobs, or use high RPMs, don’t skip this. It’s especially important in 5-axis work, where small shifts lead to big mistakes.
Even the best CNC vertical machining center can underperform if placed poorly. The floor must be solid and free of vibration. It should avoid direct sunlight, high humidity, or airflow from vents. A stable power supply matters too—big voltage swings can mess with electronics. In some cases, shops install isolated concrete pads to handle deep cuts or heavy loads. Think of the foundation as part of the machine. Without it, precision suffers and repairs come sooner than expected.
Keeping a CNC vertical machining center in top shape means more than just wiping it down. To avoid breakdowns and keep cuts clean, regular maintenance routines are a must.
Every so often, the machine needs a full checkup. That includes inspecting axis movement, spindle alignment, and tool changer operation. Calibration should also be scheduled to make sure the machine still hits the correct positions. Over time, even small shifts in tool paths can affect part quality. Many shops use laser or ballbar systems to spot early signs of wear before they become problems.
Cutting tools don’t last forever. When they wear out, the surface finish suffers and tolerances start drifting. That’s why operators track tool life carefully. Most control systems let you set usage limits, so the machine warns you before failure happens. Swapping out tools too early costs money, but waiting too long costs even more in bad parts. The key is finding that balance.
VMCs rely on software to control every movement. Updates can fix bugs, improve performance, or add features. But if you skip updates, you might miss critical improvements. It’s just as important to back up machine parameters and custom programs. Power outages or glitches can wipe data, and having a recent backup can save hours—or days—of reprogramming.
Heat, humidity, and dust can all mess with a machine’s reliability. High temps may cause overheating, especially in the control cabinet. Moisture leads to rust and short circuits. Dust clogs filters and coats electronics. To avoid these issues, the workshop should stay cool, dry, and clean. Machines often include fans and filters, but those need cleaning too. In busy shops, installing extra ventilation or air conditioning can go a long way.
CNC vertical machining uses a vertically oriented spindle to shape precise, complex parts. It supports fast setup, tool automation, and high repeatability in compact spaces. By following regular maintenance and choosing the right setup, manufacturers can boost output. Select a vertical machining center that fits your materials, tolerance needs, and job volume.
A: It’s used to cut, drill, and shape parts from metal or plastic with precision, especially for flat or complex surfaces.
A: The spindle in a vertical center moves vertically, while in a horizontal machine it cuts from the side.
A: Automotive, aerospace, mold making, medical devices, and general manufacturing all rely on it for high-precision parts.
A: Regular calibration, tool life tracking, software backups, and temperature control help keep the machine running smoothly.
A: Yes, especially with 5-axis capabilities, it can produce turbine blades, molds, and intricate medical components.
