3 Axis 4 Axis 5 Axis Vertical Machining Center

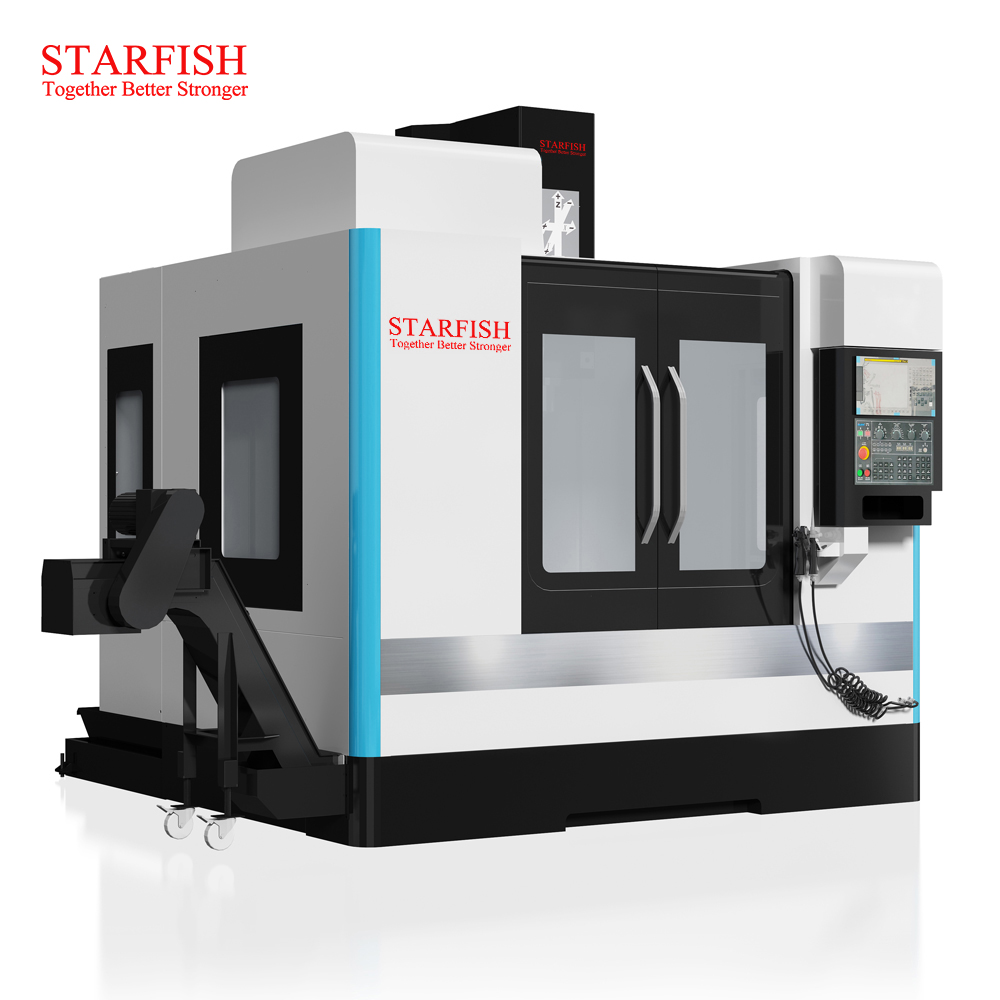

Introduction of High Precision Linear Vertical Machining Center

1. CNC Vertical Machining Center is a cutting-edge industrial machine designed for precision machining of intricate components. With advanced technology and high-performance capabilities, this machine is ideal for producing high-quality parts with tight tolerances.

Equipped with state-of-the-art features, our CNC Vertical Machining Center can easily handle complex machining tasks. Its precision engineering ensures consistent and accurate results, making it a reliable choice for a wide range of industries.

2. Whether you are manufacturing aerospace components, automotive parts, or medical devices, our CNC Vertical 3. The machining center is the perfect solution for your precision machining needs. Trust in our machine to deliver exceptional performance and superior quality for all your machining requirements.

Configuration

Parameter Loop control CNC vertical machining center

Parts	Item	VMC-1060HL	VMC-1160HL
Worktable	Size (width × Long)（mm）	1200×600	1200×600
	Maximum payload（Kg）	800	800
Travel	Table movement (x-axis mm)	1000	1100
	Worktable feed (Y-axis mm)	600	600
	Spindle movement (Z-axis mm)	600	600
	Distance from nose end of spindle to working table (mm)	120-720	120-720
	Distance from center of spindle to guide surface of bed (mm)	650	635
Spindle	Taper#	ISO 7:24 No. 40	ISO 7:24 No. 40
	Spindle speed（rpm）	8000/10000（OPT）	8000/10000（OPT）
	Power transmission mode	Belt type	Belt type
Move	Three-axis fast movement（m/min）	24/24/24	24/24/24
Electric machinery	Spindle (30 minutes/continuous)（Kw）	7.5/11（11/15）	7.5/11（11/15）
	XYZ AXIS（Kw）	3.0/3.0/3.0	3.0/3.0/3.0
XYZGuide	Form	Rail (Two linear and One Hard)
CNC system	Model	SIEMENS/FANUC/MITSUBISHI	SIEMENS/FANUC/MITSUBISHI
Other	Weight（Kg）	6500	7000
	Area covered（mm）	3150×2300mm	3150×2300mm
