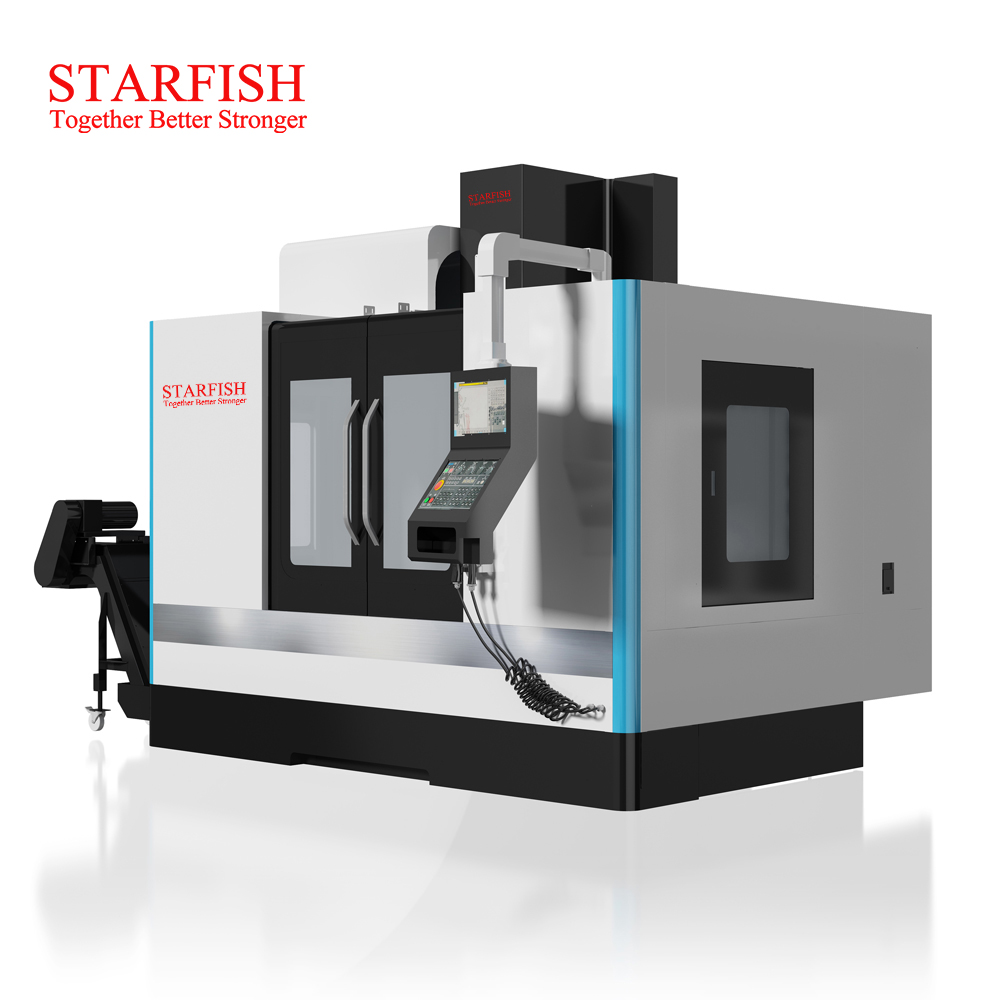

VMC-1270HL/1370HL/1580HL
Availability: | |
---|---|
Quantity: | |
Introduction of High Speed VMC
1. This series of CNC Vertical Machining Centers adopts a mechatronic design, a reasonable structure, and convenient use.
2. The three axes adopt a linear roller guideway, which has small vibration during a high-speed feed, and there is no creep during a low-speed feed, ensuring high precision and stability;
3. High-rigidity, high-precision bearings ensure high precision for long-term machining;
4. It is suitable for the precise processing of complex workpieces such as boxes, boards, plates, and casings;
5. Equipped with a gearbox, coolant through the spindle, and a heightening column, it is suitable for high-efficiency machining of valve parts.
6. All key parts come from well-known world brand
Configuration
Parameters of High Precision Vertical Machining Center
Parts | Item | VMC-1270HL | VMC-1370HL |
Worktable | Size (width × Long)(mm) | 1400×700 | 1400×700 |
Maximum payload(Kg) | 1000 | 1100 | |
Travel | Table movement (x-axis mm) | 1200 | 1300 |
Workbench feed (Y-axis mm) | 700 | 700 | |
Spindle movement (Z-axis mm) | 650 | 700 | |
Distance from nose end of the spindle to working table (mm) | 120-770 | 120-820 | |
Distance from center of spindle to guide surface of bed (mm) | 750 | 755 | |
Spindle | Taper# | ISO 7:24 No. 40 (No. 50 ) | |
Spindle speed(rpm) | 8000/10000/6000(option) | ||
Power transmission mode | Belt type | Belt type | |
Move | X Y Z B axis fast movement (m/min) | 24/24/24 | 24/24/24 |
Electric machinery | Spindle (30 minutes/continuous)(Kw) | 11/15 | 11/15 |
XYZ AXIS(Kw) | 3.0/3.0/3.0 | 3.0/3.0/3.0 | |
XY/Z Guide | Form | Rail (Two linear and One Hard) | |
CNC system | Model | SIEMENS/FANUC/MITSUBISHI | SIEMENS/FANUC/MITSUBISHI |
Other | Weight(Kg) | 9500 | 11000 |
Area covered(mm) | 3400×2700mm | 3500×2700mm |
Product Advantage of 3 axis, 4 axis, 5 axis Vertical Machining Center
Here are some key features of a Linear Control CNC Vertical Machining Center
Large working envelope: The machine has a large working envelope, allowing for the machining of large workpieces. It has a spacious working area accommodating parts with significant dimensions and weight.
Vertical spindle orientation: The machining center has a vertical spindle orientation, which means the cutting tool moves up and down along the Z-axis. This orientation allows to be easy access to the workpiece and enables the machining of complex geometries.
High rigidity and stability: The machine is designed to be highly rigid and stable, which ensures accurate and precise machining. It is constructed with heavy-duty materials and features a robust structure to minimize vibrations and maintain stability during machining.
Multi-axis capabilities: The machining center is equipped with multiple axes, typically three or more, which allows for simultaneous machining in different directions. This multi-axis capability enables the production of complex parts with intricate geometries.
FAQ
Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1) The buyer, according to the foundation chart, was offered by the seller.
2) After the equipment arrives at the user site, the buyer needs to complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1) Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1) Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2) Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
