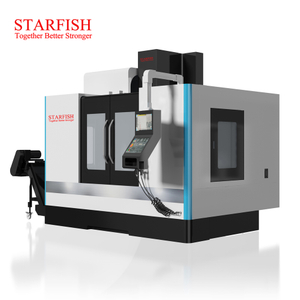

3 Axis 4 Axis 5 Axis CNC Vertical Machining Center

· High rigidity spindle with strong barrel structure ensures the machining accuracy of the machine tool in continuous operation;

· Using advanced instruments, through strict static and dynamic accuracy tests and temperature rise tests, the high cutting performance of the machine tool is ensured;

· Equipped with chip rolling device to keep the machine clean.
  • VMC-850HL VMC-855HL

Availability:
Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

Introduction of High Precision 3-axis 4-axis 5-Axis VMC850 VMC855

1. High rigidity spindle with strong barrel structure ensures the machining accuracy of the machine tool in continuous operation;

2. Using advanced instruments, through strict static and dynamic accuracy tests and temperature rise tests, the high cutting performance of the machine tool is ensured.

3. Equipped with a chip rolling device to keep the machine clean.

Configuration

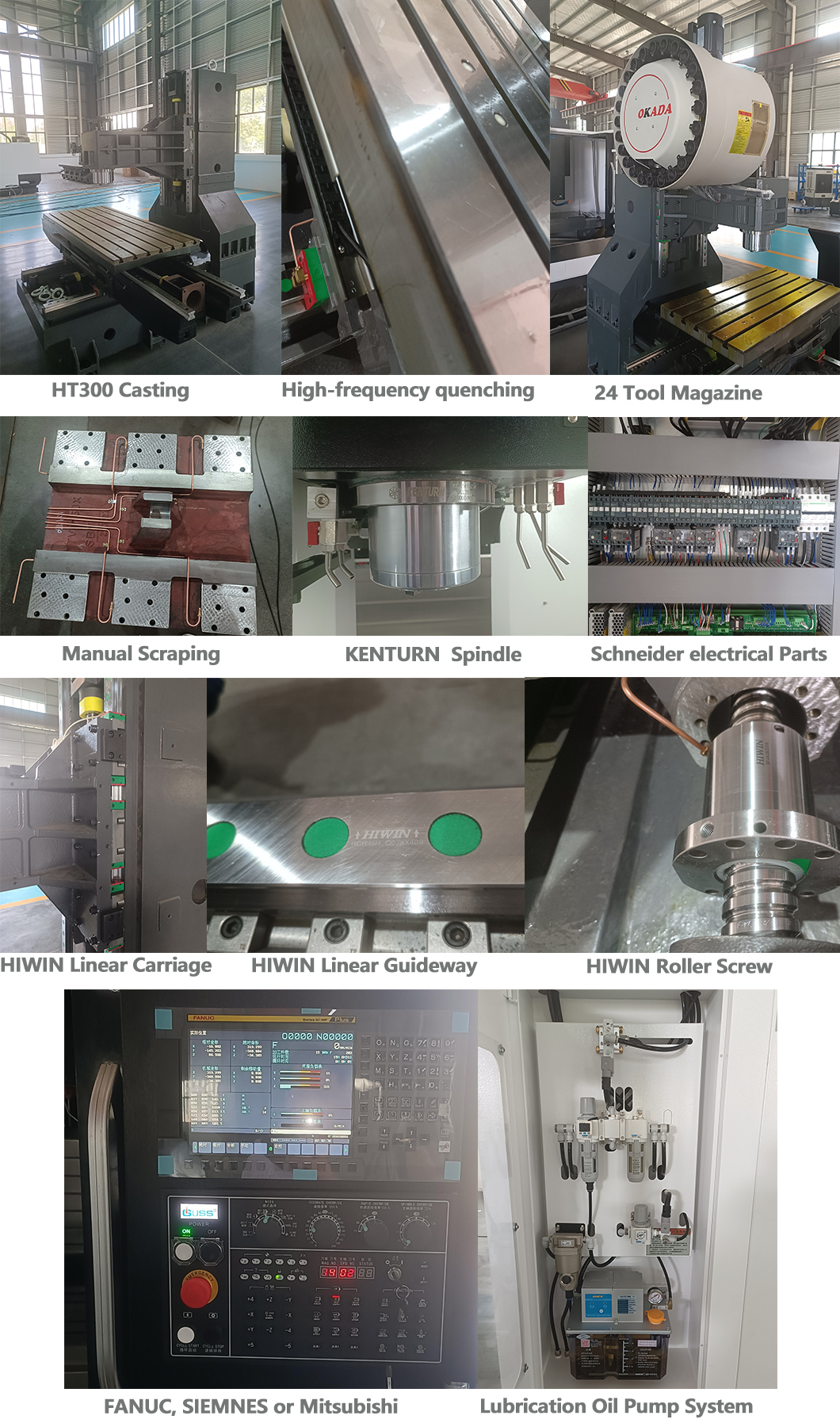

Vertical Machining Center-细节图

Parameter of Loop Control High Precision Linear Control VMCC850 VMC855

Parts

                                    Item

VMC-850HL

VMC-855HL

Worktable

Size (width × Long)(mm)

1000×500

1000×550

Maximum payload(Kg)

500

600

Travel

Table movement (x-axis mm)

800

800

Workbench feed (Y-axis mm)

500

550

Spindle movement (Z-axis mm)

500

550

Distance from nose end of spindle to working table (mm)

120-620

150-700

Distance from center of spindle to guide surface of bed (mm)

570

610

Spindle

Taper#

ISO 7:24 No. 40

Spindle speed(rpm)

8000/10000(OPT)/12000(OPT)

Power transmission mode

Belt type/Direct Connected(OPT)

Move

Three-axis fast movement(m/min)

24/24/24(48/48/48)

Electric machinery

Spindle (30 minutes/continuous)(Kw)

7.5/11(5.5/7.5)

XYZ AXIS(Kw)

2.0/2.0/3.0

XY/Z Guide

Form

Rail (Two linear and One Hard)

CNC system

Model

SIEMENS/FANUC/MITSUBISHI

Other

Weight(Kg)

5000

5500

Area covered(mm)

2550×2200mm

2650×2200mm


Product Advantage of 3 axis 4 axis VMC850 VMC855 Vertical machining center


Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1)  The buyer, according to the foundation chart, was offered by the seller.
2)  After the equipment arrives at the user site,  the buyer needs to  complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1)  Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1)  Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2)  Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
