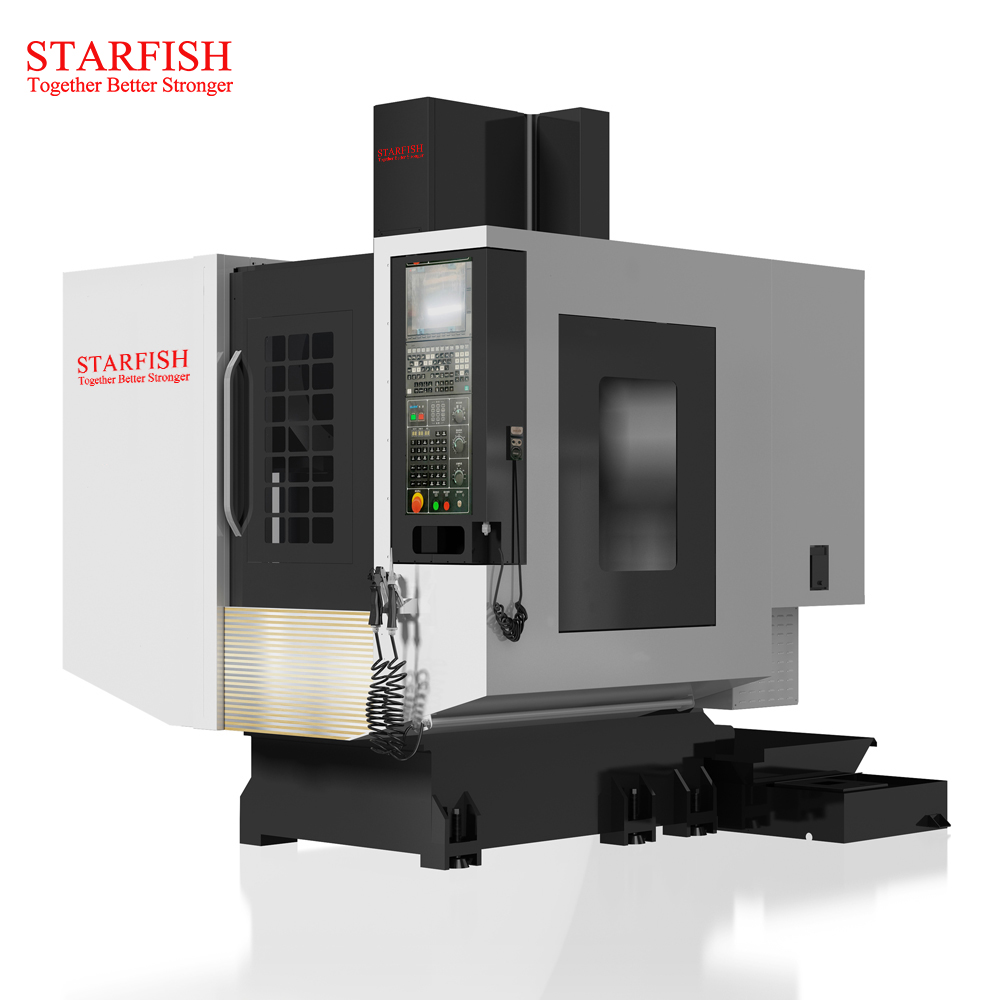

Introduction of 3 Axis 4 Axis 5 Axis High Speed Vertical Machining Center
1. A high-speed VMC is designed to meet precision machining demands. This state-of-the-art machine features advanced capabilities to ensure optimal performance and efficiency in part processing.
The high-speed vertical machining center is capable of handling a wide range of materials and complex geometries with precision and accuracy. Its robust construction and high-speed spindle allow for fast and precise machining of parts, making it ideal for various industries.
Configuration
Parameter of Loop Control High Precision Vertical Machining Center
Parts | Item | VF-500 | VF-600 |
Worktable | Size (width × Long)（mm） | 600×400 | 700×420 |
Maximum payload（Kg） | 300 | 350 | |
Travel | Table movement (x-axis mm) | 500 | 600 |
Workbench feed (Y-axis mm) | 400 | 400 | |
Spindle movement (Z-axis mm) | 450 | 450 | |
Distance from nose end of spindle to working table (mm) | 110-560 | 150-600 | |
Distance from center of spindle to guide surface of bed (mm) | 448 | 466 | |
Spindle | Taper# | ISO No. 40 | ISO No. 40 |
Spindle speed（rpm） | 12000 | 12000 | |
Power transmission mode | Direct Connected | Belt type | |
Move | Three-axis fast movement（m/min） | 48/48/48 | 48/48/48 |
XYZ Guide | Form | Rail | Rail |
CNC system | Model | SIEMENS/FANUC/MITSUBISHI | SIEMENS/FANUC/MITSUBISHI |
Other | Weight（Kg） | 3000 | 4000 |
Area covered（mm） | 2000×2200mm | 2100×2300mm |
FAQ
Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1) The buyer, according to the foundation chart, was offered by the seller.
2) After the equipment arrives at the user site, the buyer needs to complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1) Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1) Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2) Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
