Radial drills are an essential part of the machining process, especially in industries that deal with large, complex, or heavy workpieces. The unique design of a radial drilling machine, which includes a movable radial arm and adjustable spindle, makes it one of the most versatile tools available in manufacturing environments. This article explores the advantages of radial drills and explains how their flexibility, precision, and cost-efficiency benefit various industries.

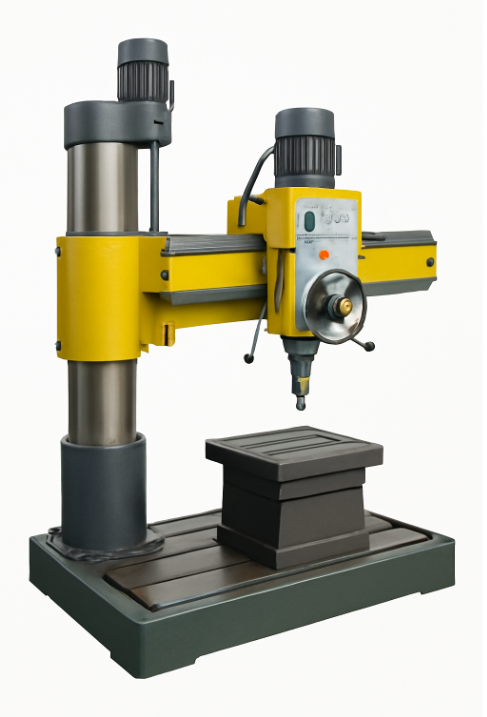

A radial drilling machine is a type of drilling equipment designed to provide flexible and precise drilling for large or irregularly shaped workpieces. The key feature of a radial drill is the movable radial arm that holds the spindle. This arm can move along the vertical column and rotate horizontally, allowing the spindle to reach various points around the workpiece without the need to reposition the part itself.
Column: The vertical support structure that holds the radial arm and provides stability during drilling.
Radial Arm: The main feature that allows the spindle to move horizontally along the column, bringing it to different positions on the workpiece.
Spindle: Holds and rotates the drill bit. It can be adjusted vertically and horizontally to accommodate different hole sizes and depths.
Table: A platform that holds the workpiece. It can be adjusted for height and rotated to support different drilling angles.
Control Panel: Used to adjust the spindle's speed, direction, and position to ensure precise drilling.
One of the primary advantages of radial drilling machines is their flexibility. The radial arm allows the spindle to be moved to different positions along the column, giving the operator the ability to drill multiple holes in a workpiece without needing to reposition it. This feature is especially beneficial for complex parts that require multiple holes at different locations.
Adjustable Spindle Movement: The spindle can move both horizontally and vertically, making it easier to drill holes in various locations on the workpiece, especially when dealing with large, heavy parts.
Multiple Operations: Radial drills are not limited to just drilling; they can also perform operations such as tapping, reaming, and counterboring, which makes them ideal for applications that require several operations in one setup.
Another significant advantage of radial drills is their ability to handle large and heavy workpieces. Unlike conventional drilling machines, where the workpiece has to be moved into position repeatedly, the radial arm design allows the spindle to be adjusted around the workpiece, making it easier to drill large components without having to reposition them.
Large Workpieces: Radial drills are commonly used in industries such as automotive, aerospace, and construction, where large components such as engine blocks, structural steel beams, or aerospace parts need to be drilled.
Irregularly Shaped Workpieces: The radial arm can be repositioned at various angles to drill holes in parts that are not uniform in shape, making radial drills particularly useful for complex parts that require multiple holes.
Radial drills are known for their high precision. The ability to adjust the spindle's position accurately ensures that holes are drilled with great consistency. The machine’s design allows for fine adjustments in both the vertical and horizontal positions, ensuring that the operator can drill holes in exact locations with minimal deviation.
Fine Adjustments: The radial arm allows for precise adjustments, and the spindle’s position can be altered with extreme accuracy to drill multiple holes on a single workpiece without misalignment.
Improved Hole Placement: By eliminating the need to move the workpiece, the radial drilling machine guarantees consistent hole placement every time.
Radial drills significantly improve operational efficiency by reducing the time and effort needed to reposition both the workpiece and the drill. The ability to adjust the spindle's position quickly without moving the workpiece leads to faster setup times and fewer interruptions during drilling.
Fewer Workpiece Repositioning: With a radial drill, operators don’t need to constantly adjust the position of the workpiece, as the spindle can be moved to different locations. This streamlines the drilling process and saves valuable production time.
Faster Drilling: Since the radial arm allows operators to drill multiple holes in one setup, the machine’s overall drilling speed is increased, which is especially important in mass production environments.
Radial drills can perform various tasks, including drilling, tapping, reaming, and counterboring. This multi-functionality makes them ideal for tasks that require more than just a standard hole. Operators can switch between different operations on a single machine without needing multiple setups, which reduces downtime and boosts productivity.
Versatile Operations: By switching between attachments and adjusting the spindle’s position, radial drills can be used for several operations, minimizing the need for multiple machines on the factory floor.
Simplified Work Process: The ability to perform multiple tasks on one machine reduces the complexity of workflows and lowers the overall operational cost, as fewer machines are needed for different functions.
Radial drills offer significant cost savings because they can replace several other machines used for different drilling and machining tasks. Since they can handle various operations such as tapping, reaming, and drilling in one setup, businesses can reduce the need for other specialized machines.
Reduced Need for Multiple Machines: In environments where multiple types of drilling or machining operations are required, radial drills reduce the need to purchase and maintain separate machines for each task.
Long-Term Durability: Radial drills are built to handle heavy-duty work, ensuring they last longer and perform reliably in tough environments. This durability reduces maintenance costs and increases the machine's return on investment.
For high-volume production environments, radial drills are particularly cost-effective. Their ability to perform quick setups and multiple tasks in one machine leads to a reduction in production time, which ultimately cuts costs.
Improved Productivity Leads to Lower Costs: Radial drills’ high-speed drilling and efficient setup times contribute to a reduction in the cost per part, especially in high-volume manufacturing environments.
While both radial drills and upright drilling machines serve the same basic purpose of creating holes, the radial drill’s flexibility and ability to handle large, irregularly shaped parts set it apart from upright drills.
Flexibility: Unlike upright drills, which have a fixed spindle and require frequent repositioning of the workpiece, radial drills allow for quick adjustments of the spindle to multiple points on the workpiece.
Space Efficiency: Although radial drills require more space compared to upright drills, their ability to accommodate larger workpieces and perform multiple tasks justifies the extra space.
While CNC drilling machines are ideal for mass production with complex tasks and high precision, radial drills offer greater versatility in terms of the types of drilling operations they can handle.
Automation: CNC drills provide automation, making them more suitable for high-volume, highly complex tasks. However, radial drills are often more cost-effective for small to medium-sized shops that need versatility without the complexity and cost of CNC equipment.
Radial drills are used in heavy-duty manufacturing for creating holes in large and complex components. They are commonly found in workshops where parts like engine blocks or structural components need to be drilled with high accuracy.
The automotive industry relies on radial drills for precision drilling in components such as engine parts, chassis, and transmission assemblies, where accuracy is paramount for proper function and safety.
Radial drills are widely used in the aerospace industry to drill holes in aircraft parts. The ability to drill large and complex components with precision is critical in this industry, where component weight and strength are crucial.
Lubrication: Ensure the moving parts, such as the radial arm and spindle, are regularly lubricated to prevent wear and maintain smooth operation.
Cleaning: Regular cleaning of the machine prevents the buildup of debris and ensures that the machine continues to function at optimal levels.
Inspection: Periodically checking for misalignments, worn-out drill bits, and mechanical issues can prevent unexpected breakdowns and maintain accuracy.
Inaccurate Drilling: Make sure the spindle and radial arm are properly aligned. If holes are not drilled accurately, it could indicate a misalignment or an issue with the drill bit.
Spindle Movement Issues: If the spindle is not moving smoothly, it may need lubrication or inspection for mechanical faults.
Radial drills offer significant advantages in terms of flexibility, precision, and productivity. Their ability to drill large, irregularly shaped workpieces, perform multiple tasks, and reduce setup times makes them an invaluable tool for many industries. Choosing the right radial drill can lead to increased operational efficiency, cost savings, and improved product quality in your manufacturing processes.
A: Radial drills allow for more flexibility by moving the spindle to various positions around the workpiece, eliminating the need to move large parts.
A: By reducing the need to reposition workpieces and performing multiple tasks, radial drills significantly decrease production time.
A: While radial drills require more space, their versatility can make them valuable in small shops that need a machine that can perform multiple tasks on large parts.
A: Yes, radial drills can perform tapping, reaming, and other operations, making them highly versatile tools in machining environments.
