Swing over bed: 500mm, 660mm, 800mm Spindle Bore: 82mm
| Quantity: | |
|---|---|

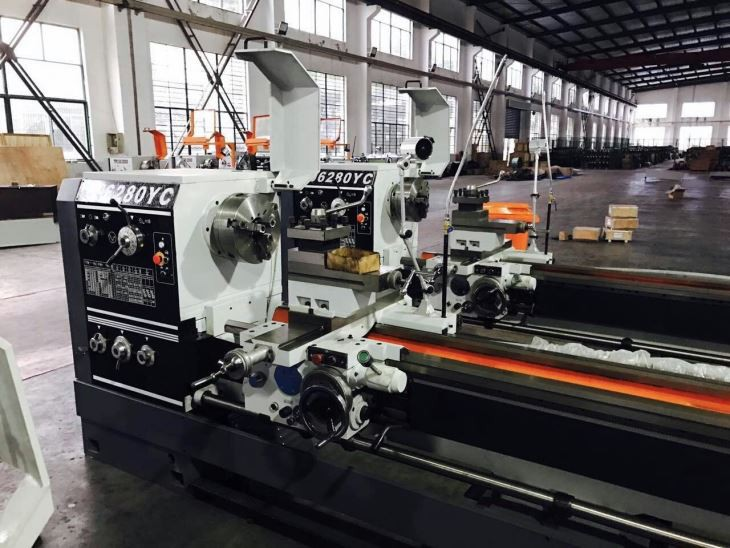

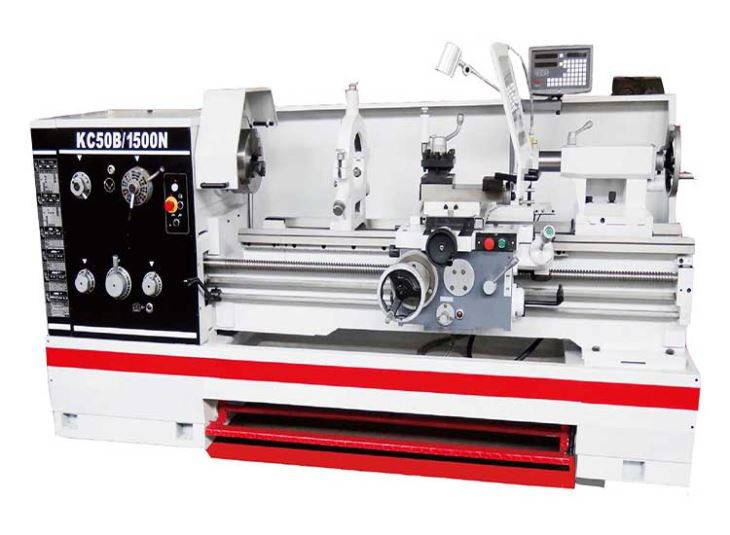

Products introduction of 2 Axis Turning Machine
Easy spindle speed change by rotary switch control
Hardened and precision ground bedways
Universal gearbox for both inch and metric threading
Wear-resistant phosphor bronze leadscrew nuts
High capacity coolant tank provides sufficient coolant output
It is manufactured with rules of ISO and CE principle.
We have a professional R&D team, overseas sales team, documentary team, lorry team, customs clearance team, team for shipping, aftersales team and professional business partner we can rely on.
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
Can we do OEM for you: Yes, we can put your logo on our machine.
Can I change the voltage: Yes, sure
Delivery period of time:30-90 days
Payment term:T/T
Aftersales: One year warranty, whole life guarantee, all defect parts(it is not caused by misoperation), it will be changed for free in warranty time. We will just offer the factory cost for parts after warranty time.)
Products Specification of 2 Axis Turning Machine
Specification
Model NO. | CJ6250YB | CJ6266YB | CJ6280YB |
Swing over bed | Φ500mm(20’’) | Φ660mm(26’’) | Φ800mm(31’’) |
Swing over carriage | Φ300mm(12’’) | Φ420mm(17’’) | Φ560mm(22’’) |
Max. Swing in gap | Φ710mm(28’’) | Φ870(34’’) | Φ1010(40’’) |
Max. Length of workpiece | 1000/1500/2500/2000/3000/4000mm | ||
Effective gap length | 230mm | ||
Bed width | 405mm | ||
Spindle bore | Φ82mm | ||
Spindle taper of bore | |||
Spindle number speed | 24 steps | ||
Spindle range of speed | 9-1600rpm | ||
Threads metric pitches | 0.5-224mm/48 kinds | ||
Threads imperial pitches | 72-1/8TPI/46 kinds | ||
Thread diametral pitches | 56-1/4D/45 kinds | ||
Threads module pitches | 0.5-112mm/42 kinds | ||
Range of feeds longitudinal | 0.028-6.43mm(0.001’’-0.2392’’) | ||
Range of feeds cross | 0.012mm-2.73mm(0.004’’-0.1032’’) | ||
External diameter of the tailstock quill | Φ75mm | ||
Max. Traverse of the tailstock quill | 150 | ||
Quill taper | NO. 5 (morse) | ||
Max. Travel of compound rest | 145mm | ||
Max. Cross slide travel | 360mm | ||
Max. Size of tool shank(WxH) | 25x25mm | ||
Power of main motor | 7.5kW/9kW | ||
Over all size(LxWxH) | 2700/3200/3700/4200/5700)x1150x1800mm | ||
Net weight: | 2850-5300kg | ||

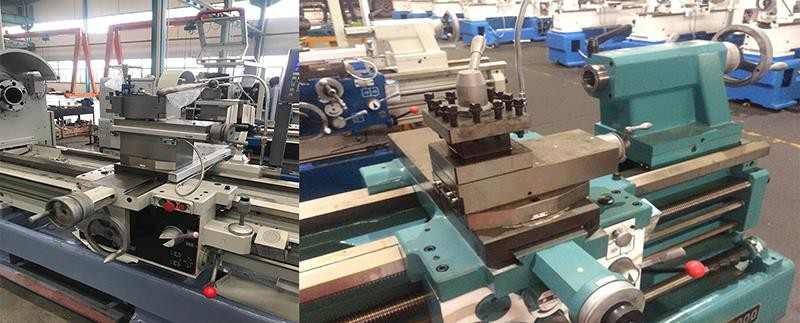

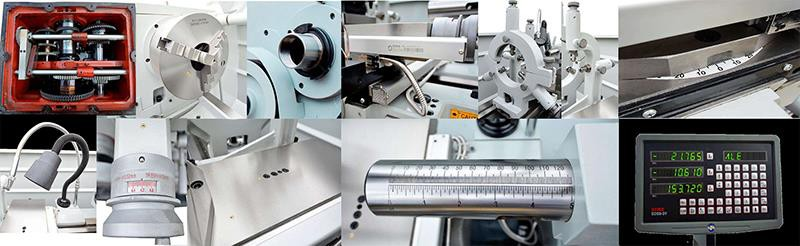

Production details of 2 Axis Turning Machine

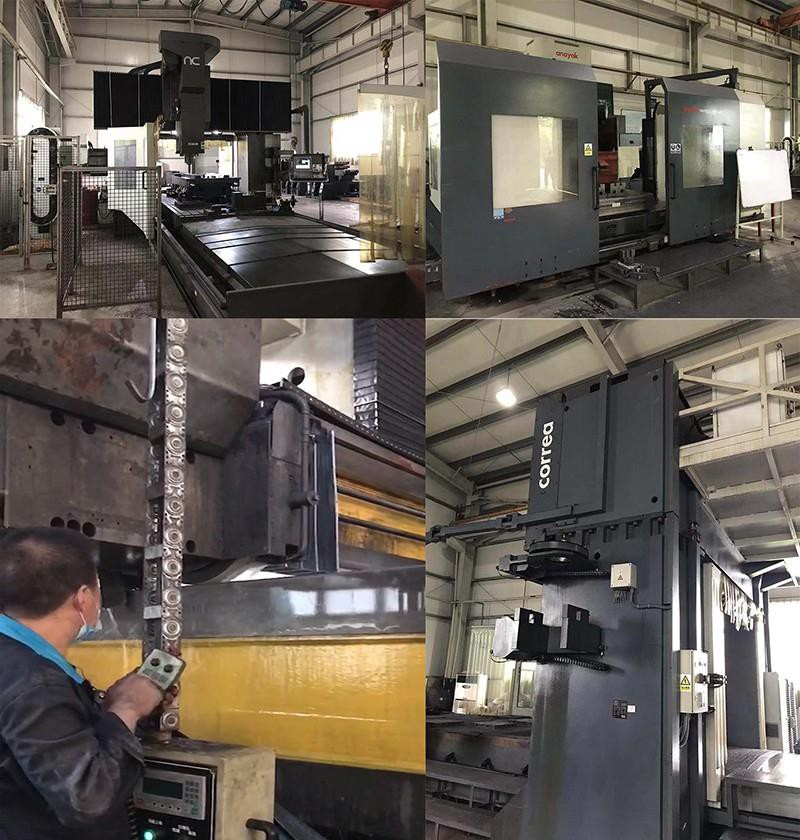

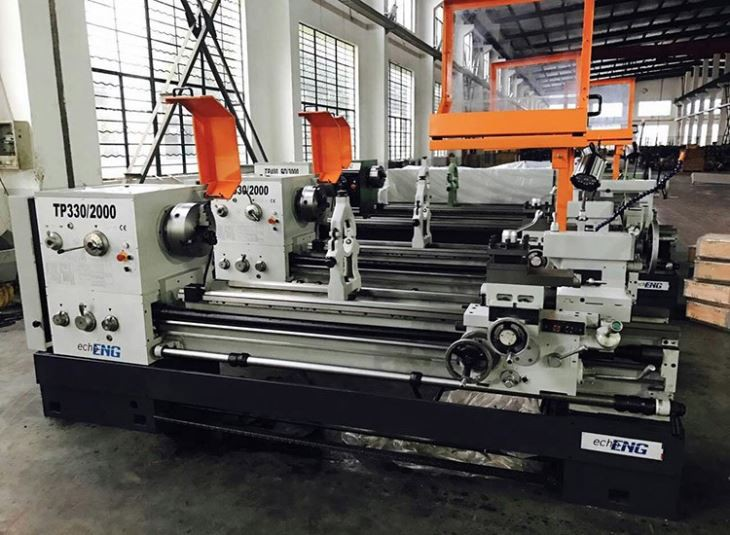

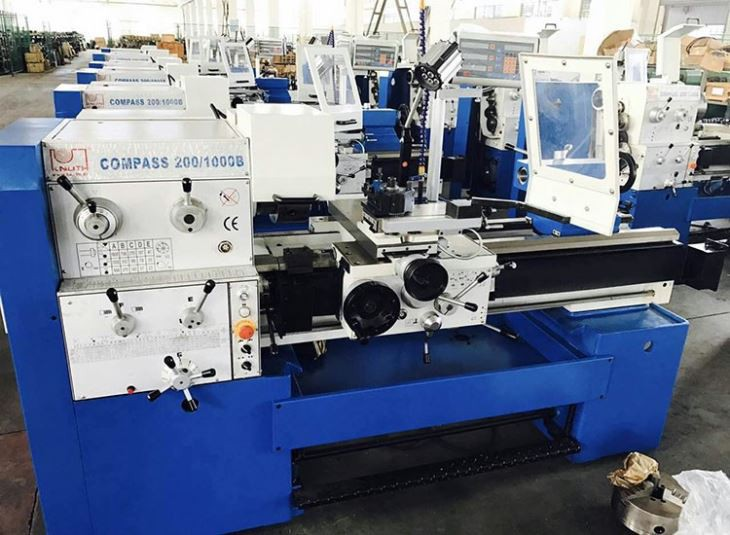

Manufacturing facilities of 2 Axis Turning Machine

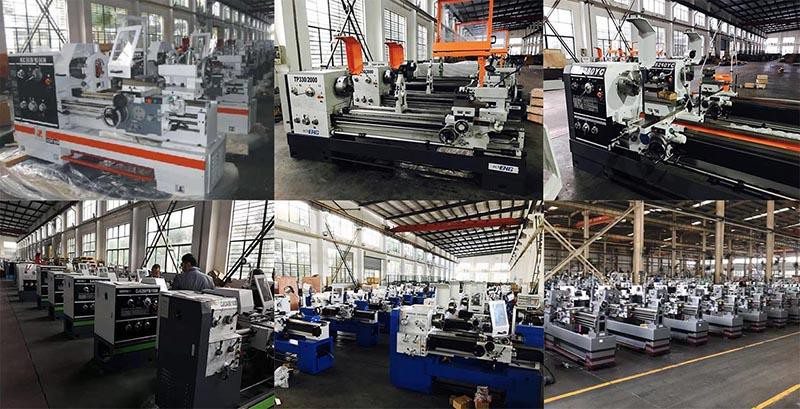

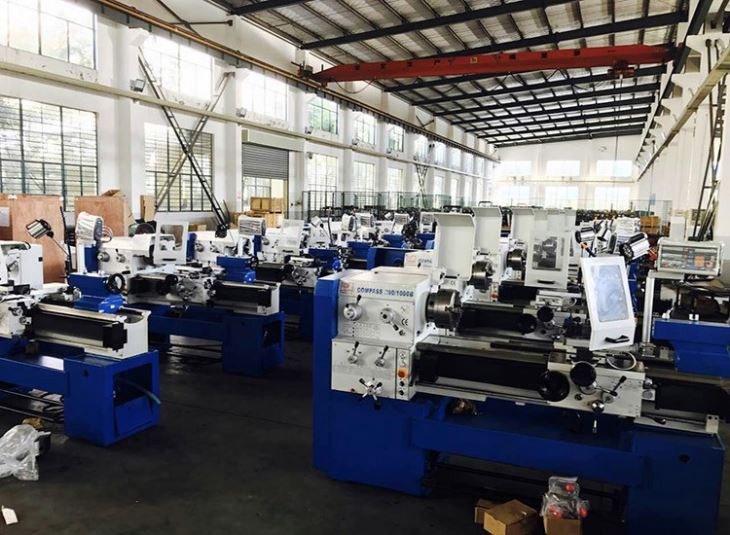

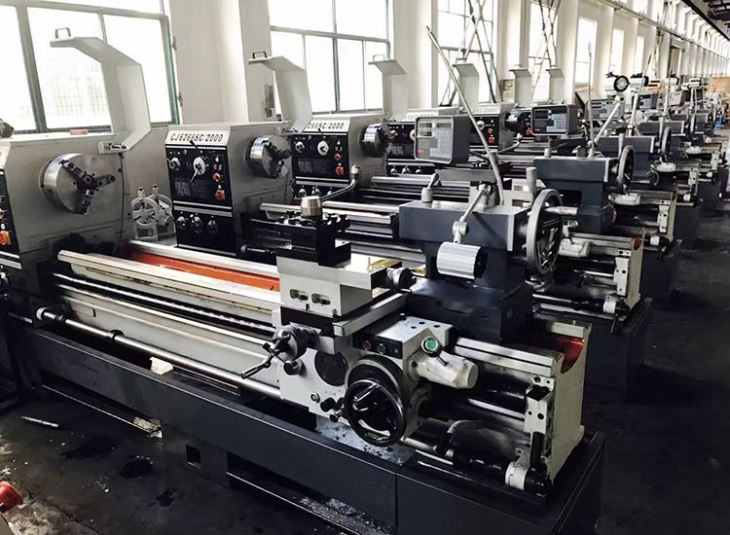

Glance of workshop of 2 Axis Turning Machine

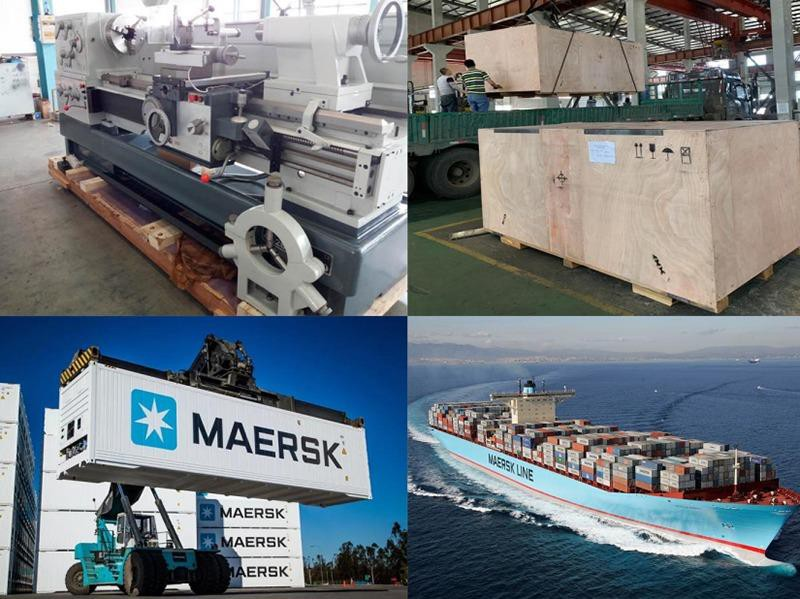

Package and Shipping of 2 Axis Turning Machine
