TNMA Turning Tool Holder

EDGEV Tool Holder WTENN2020K16 WTENN CNC Metal Lathe Accessories TNMA Turning Tool Holder For TNMA160408 TNMG160404

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

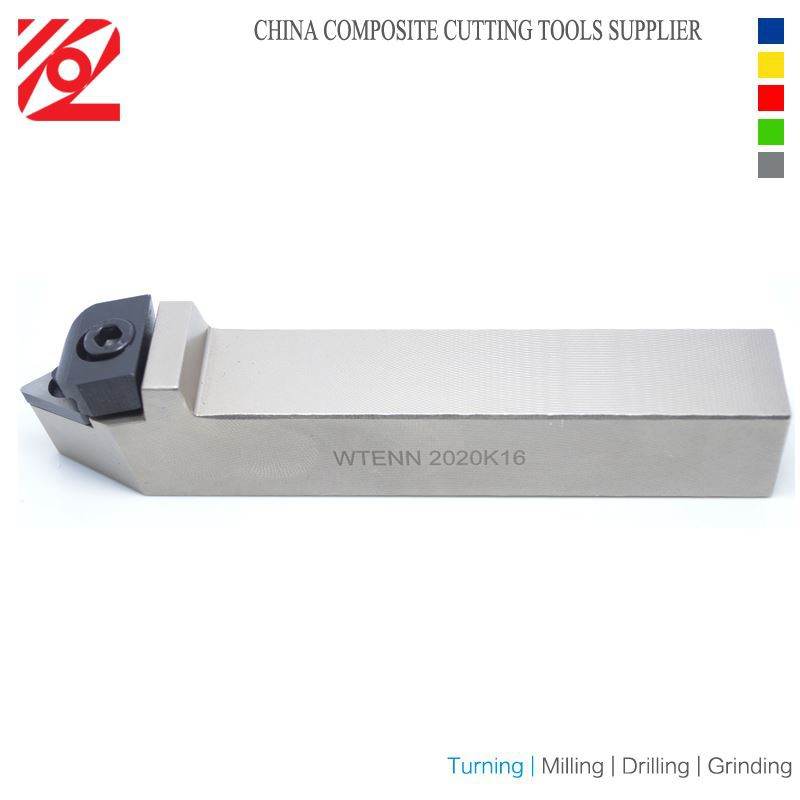

EDGEV Tool Holder WTENN2020K16 WTENN CNC Metal Lathe Accessories TNMA Turning Tool Holder For TNMA160408 TNMG160404

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

External Tool Holder Code System (ISO Standard)

01. Application: External Turning Tools Shank

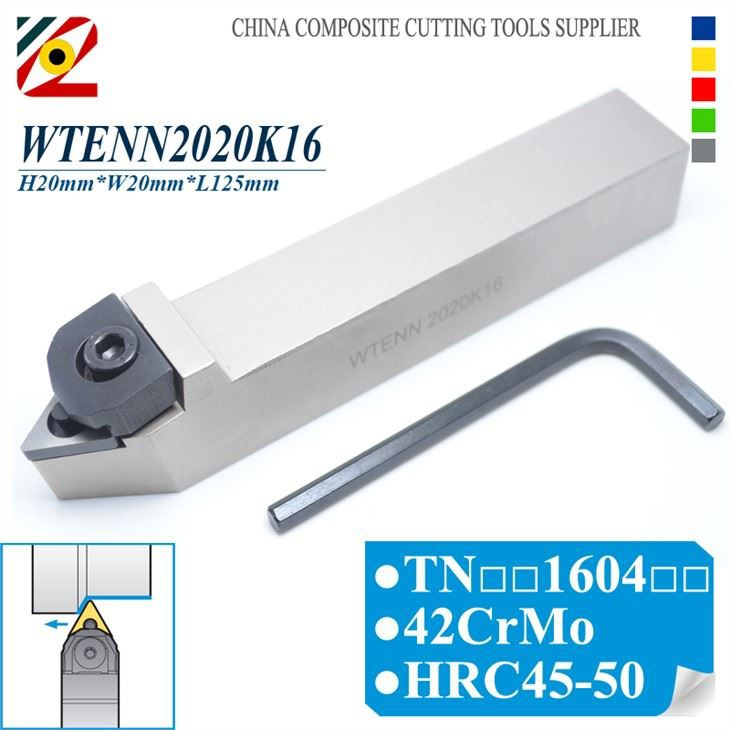

02. ISO Designation:WTENN2020K16

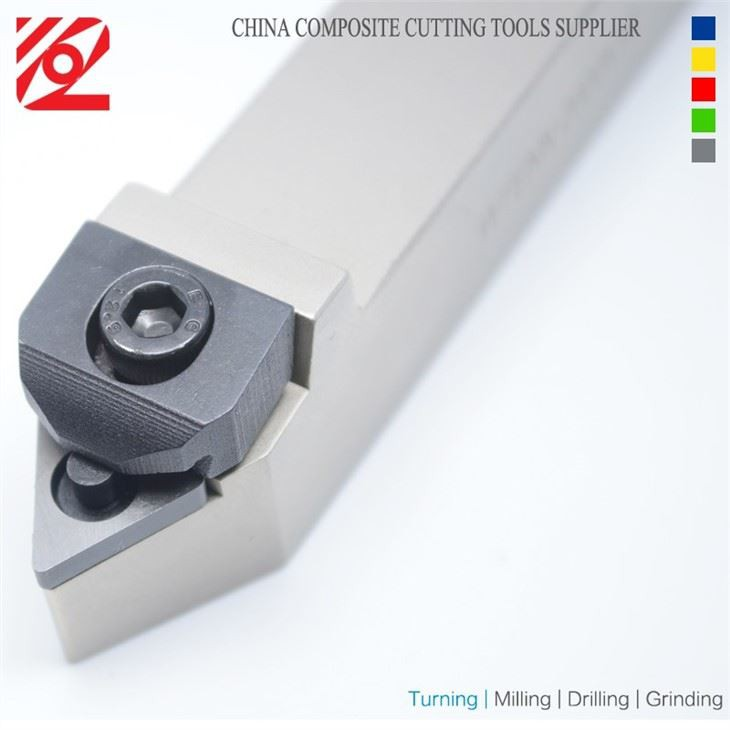

03. Clamping Method: Wedge clamp System
04. Applicable Inserts:TN_ _1604_ _(TNMG/TNMA160404/08)
05. Approach Angle: 60 Degree
06. Size of Shank: H20mm*W20mm*L125mm
07. Material: 42CrMo(Alloy Spring Steel)
08. Hardness: HRC45-50
09. Color: Grey/Black
10.Net Weight:450g
11.G.W.:650g

12. TNMA Turning Tool Holder

Features:
01. The tool holder is made from the good alloy spring steel (42CrMo). Favorable shock resistance and improves the surface roughness of work-piece.
02. Integral forging processing, excellent tensile strength and rigidity. To achieve the steady machining and the long service life of tools.

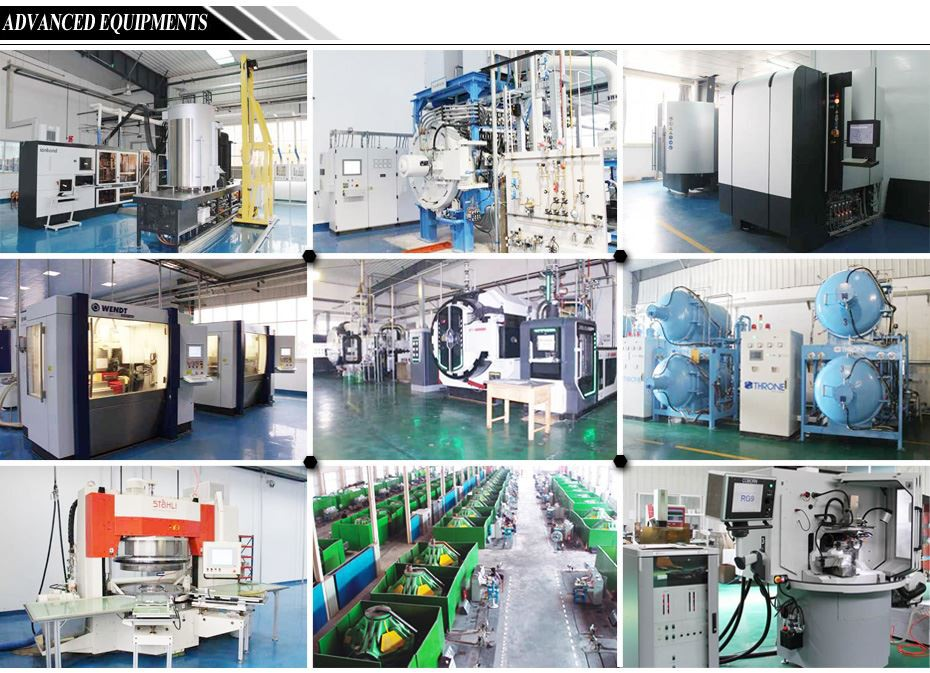

03. To be manufactured by High-precision CNC machine center and MAZAK equipment
04. Strictly implement the total quality management system, 100% inspection; we use the feeler blade (0.01mm) to inspect the slot of inserts, to make sure the inserts and tool holder are closely attached.
05. Advanced NIHON Heat Treatment from Japan, to make sure the hardness uniformity of the tool holder.
06. Antirust and corrosion resistance, the surface of tools are planted with nickel, it is beautiful and durable.
07. Good quality Accessories, it is not easily damaged in the bad cutting condition.

HTB1apbcXcnrK1RjSspkq6yuvXXaUHTB1apbcXcnrK1RjSspkq6yuvXXaUHTB1apbcXcnrK1RjSspkq6yuvXXaU

HTB116pfoBcHL1JjSZJiq6AKcpXa2

We support the following payment methods. All payments made on AliExpress are processed by Alipay.

1. VISA; PayPal; Master Credit Cards; ESCROW.

2. Payment should be done within 15 days after your order.

3. If you can't check out immediately after auction close, please wait for a few minutes and try again.

HTB1NNSyf6uhSKJjSspaq6xFgFXaC

About Delivery Time

Answer: As for the products which meet ISO international standard, we have plenty of products. Without special reasons, we can ship out the items in 48 hours after the order is confirmed. For those non-standard with special needs, you can get the samples in 25-35 days, the formal order can be delivered in the 5~ 15 workdays.

About Service & Support

Our English language support staff work 24 hours a day to provide you with assistance on questions that you do not find answered in our FAQ section.

HTB17OnzffxNTKJjy0Fjq6x6yVXay

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and are for your reference only.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

WARANTY

1. All products have been checked and packaged in good condition before dispatch

2. Buyers have to pay for the return cost and we will pay the cost for resend.

FIVE STARS FEEDBACK-PERFECT TRANSACTION

If you like our products and meantime you are satisfied with our service (Quality, Price, Communication, Package, and Delivery Speed); please kindly give us five stars and positive Feedback and show some of pictures. This is the best support for us.

The End---Do you know? EDGEV have own Bottom Line.
