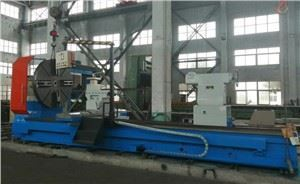

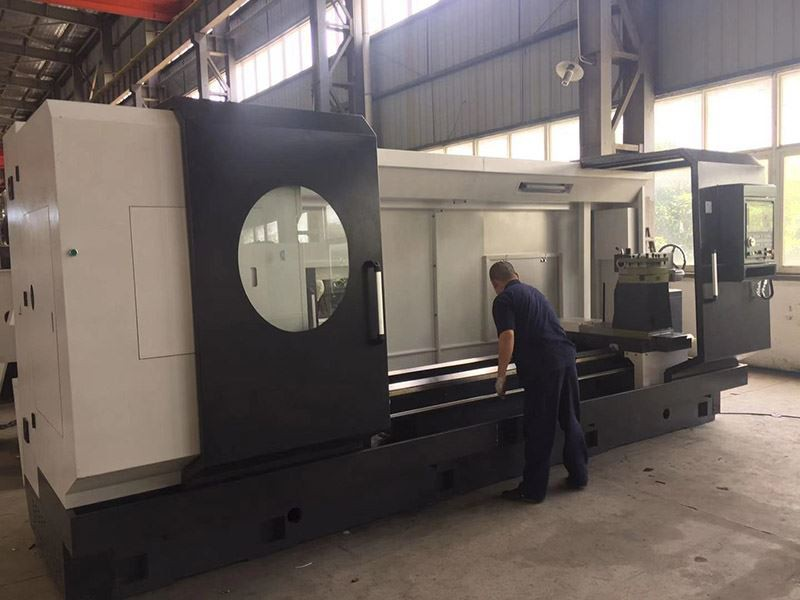

Feature of CNC Heavy Duty Machines
1. X-direction and Z-direction adopt precision ground ball screw pair to ensure high machining accuracy, positioning accuracy and accuracy retention.
2. Each movement pair is automatically lubricated by a centralized intermittent lubrication system.
3. Longitudinal (Z-direction) feed: the AC servo motor installed on the left side of the feed box drives the lead screw to feed.
4. Lateral (X-direction) feed: The AC servo motor installed at the back of the saddle is directly connected to the transverse ball screw via a coupling; the machine tool has high positioning accuracy and repeat positioning accuracy.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of CNC Heavy Duty Machines
For swing over bed: 1400mm, 1600mm, 1800mm, 2000mm, please contact us for more info.
Item | unit | CK61100 | CK61125 | CK61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over carriage | mm | 615 | 865 | 930 |
Max. workpiece length | mm | 1000-10000 | ||
Guideway width | mm | 755 | 755 | 755 |
Spindle taper | mm | 1:120/140 | 1:120/140 | 1:120/140 |
Chuck | Four jaw 1000 | Four jaw 1000 | Four jaw 1000 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |

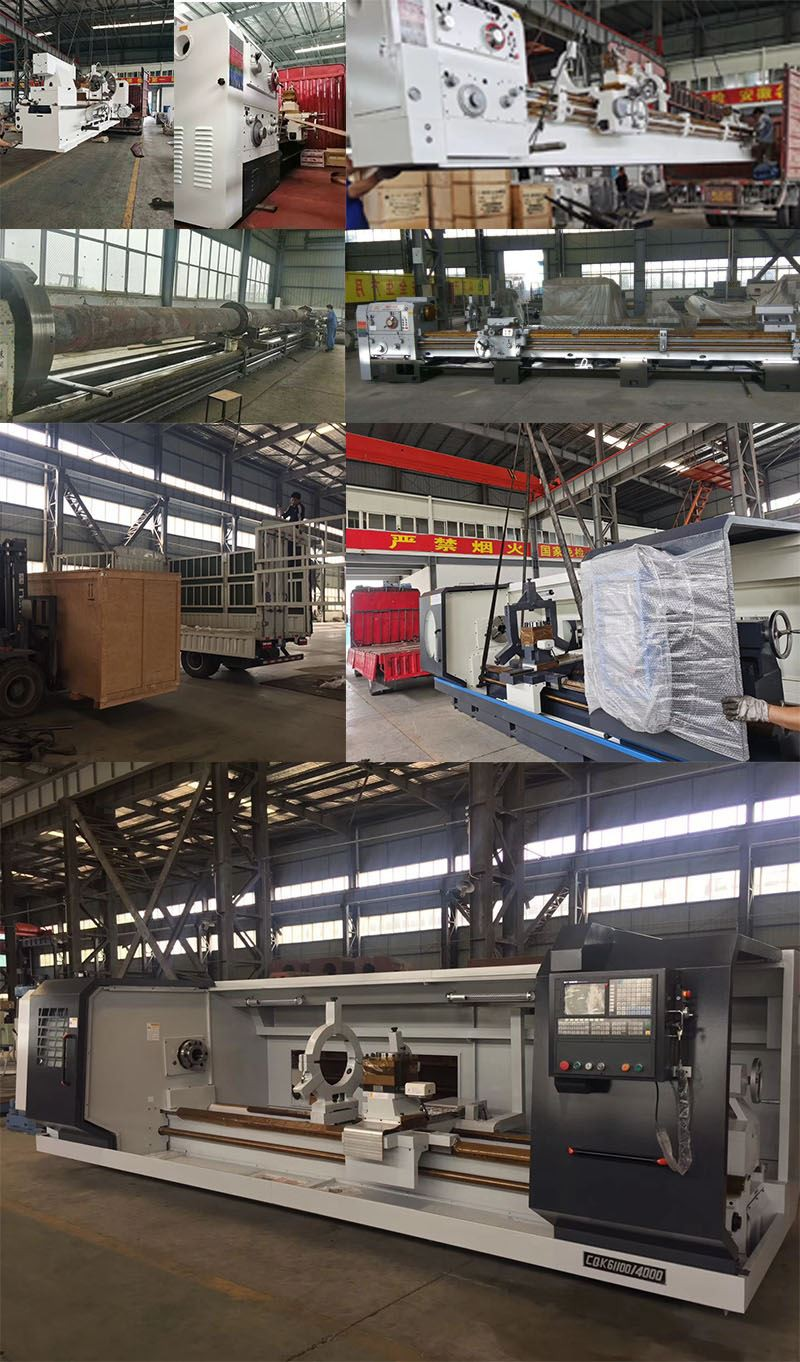

Details

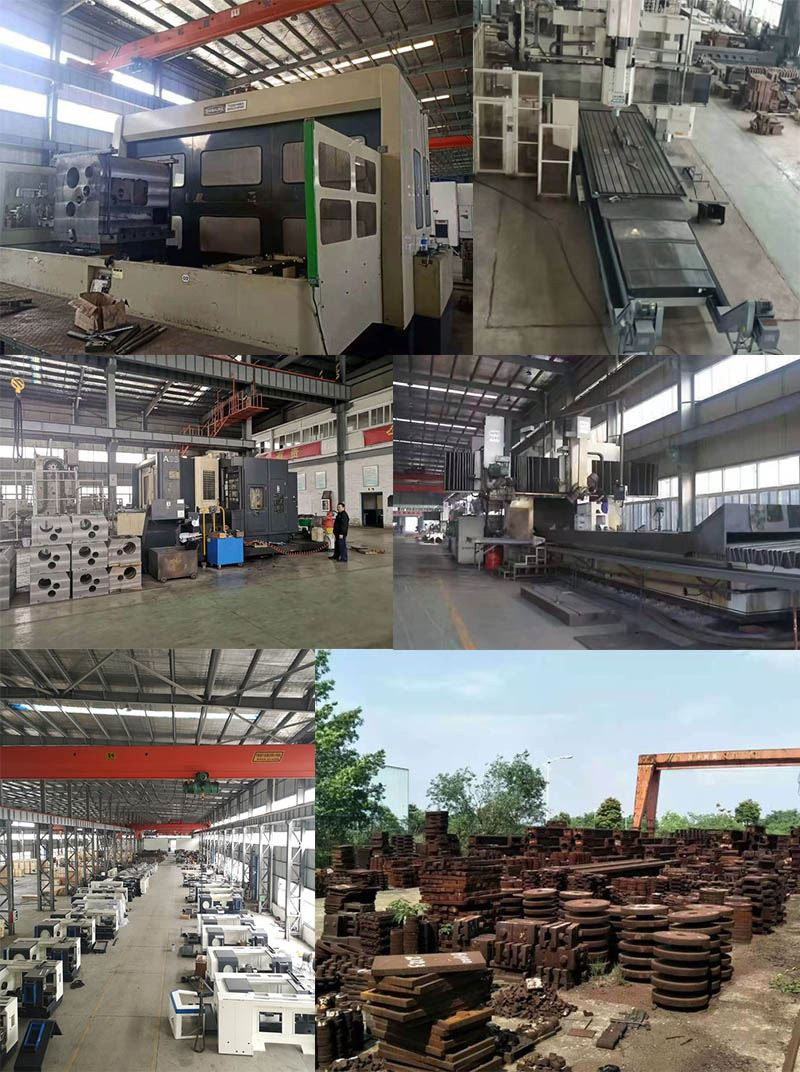

Glance of workshop of CNC Heavy
Por qué elegirnos
1. Mejor componente
Casi todos los componentes de las máquinas herramienta provienen de Alemania, Japón, Estados Unidos y un conocido fabricante de China.
2. Clientes
Tenemos clientes de referencia en más de 40 países, como Siemens, ITT, Hanwha, CRRC, Bombardier...
3. La tecnología constante
Lo que poseemos es la tecnología constante para la fabricación de máquinas herramienta, que garantizan una vida útil constante y prolongada.
4. Detección estrictamente de calidad
La calidad y precisión de nuestras máquinas herramienta está estrictamente garantizada por CMM, indicador de cuadrante, etc. y nuestros trabajadores experimentados.
5. Nuestra gente
Nuestra gente es profesional, amable y trabajadora con nuestros clientes.
