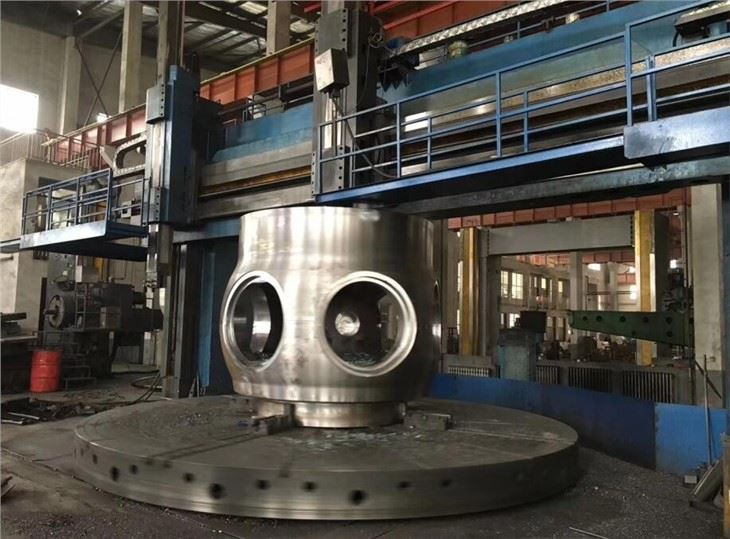

Feature of CK series Double Column VTL Lathe
1, This Double Column VTL Lathe Machine is suitable for internal and external turning ,internal and external tapering, facing, slotting, thread, surface turning(CNC the spindle drive adopts servo motors,through2steps.
2, Spindle speed changing unit, to make work table realize stepless speed regulation.
3, Work table spindle adopts short spindle and constant flow hydrostatic guide way, keep high centering accuracy, high rotating
accuracy, big loading capacity and small deformation.
4, Feeding system adopts AC servo motor drive, through gearbox variable speed back, Is connected with a lead screw,
5, The two axes adopt ball screw, both ends fixed installation, and mutually the pre tension of the screw , improves the screw rigidity.
6, The Double column VTL Lathe adopts Push Button Station, feed system configure handheld unit, Easy to operate.
7, The main movement and feed movement configuration, with the ordinary type and Double column VTL Lathe be current.
8. The CNC system and feeding servo motor brand include SIEMENS, FANUC.
Products Specification
The vertical lathe can be equipped with C axis
Item | Unit | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 | CA52160 |
Max. turning diameter | mm | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Max. Workpiece height | mm | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 | 10000 |
Worktable diameter | mm | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 | 5500 /6000/7000 |
Max. Worktable weight | t | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 | 400 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 | 0.1-10 |
Max. Worktable torque | KN·m | 63 | 63 | 150 | 150 | 150 | 640 | 640 | 1000 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 63 | 63 | 63 | 125 | - | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 | - |
Right tool post rapid movement | mm/min | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post rapid movement | mm/min | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 | - |
Swing angle of tool post | ±30º | ±30º | - | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） | - |
Ram section | mm | - | - | - | - | - | 320x320 | 400x400 | 400/500 |
Beam travel | mm | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 | 4000/5000/5500 |
Beam lifting speed | mm/min | 350 | 350 | 410 | 410 | 410 | 300 | 300 | |
Main motor power | kW | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 | 160 |
Weight | t | 45 | 47 | 200 | 215 | - | - | 465 |
