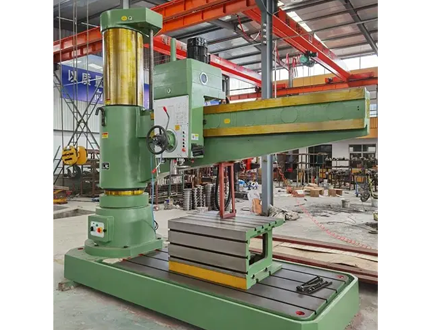

The Radial Drilling Machine, also known as a radial arm drill press, is a powerful and versatile piece of equipment used for drilling precise holes in large or heavy workpieces. Unlike standard bench drills, the radial drilling machine is designed with a radial arm that can rotate, move up and down, and slide horizontally. This flexibility allows it to drill holes at various positions on a large work surface without needing to reposition the workpiece.
For beginners in metalworking or industrial machining, learning how to properly operate a radial drilling machine is crucial. Mastery of this tool not only enhances productivity but also ensures safety, precision, and durability in everyday operations. Whether you're working in fabrication, heavy machinery repair, or mold making, understanding the fundamentals of this machine can significantly boost your confidence and efficiency on the shop floor.
To effectively operate a radial drilling machine, it's essential to understand its key components and how they work together to provide stability, accuracy, and control during drilling operations.

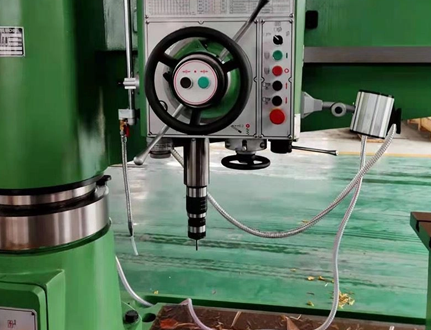

The spindle is the rotating part of the machine that holds and drives the cutting tool, typically a drill bit. It's powered by an electric motor and is responsible for the vertical movement that allows the drill to penetrate the material. Spindles in radial drilling machines are built for heavy-duty use and often feature variable speed control to accommodate different materials and drilling requirements.

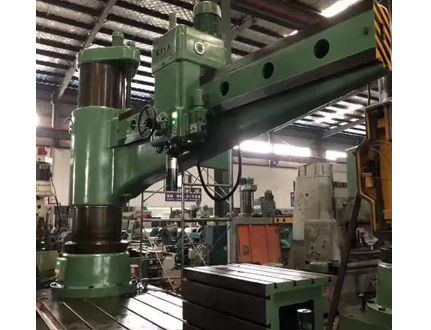

The radial arm is the defining feature of the machine. It supports the spindle and allows it to move horizontally across the work area. This arm can also rotate around the column, giving operators the ability to drill holes at different angles or positions without moving the workpiece. The radial movement significantly increases the machine’s working range and flexibility.
The column, also known as the vertical pillar, is the structural support that holds the radial arm and allows it to move vertically. The column is typically cylindrical and mounted firmly to the base of the machine. It provides rigidity and strength, ensuring stability during operations, especially when drilling into hard or large materials.
The base of the machine is a heavy-duty platform that supports the entire structure and absorbs vibration during operation. It also serves as the mounting surface for the workpiece. The robustness of the base plays a critical role in maintaining precision and extending the life of the machine.
The radial arm is designed to move up and down along the column through an elevation mechanism, typically driven by a motor or hydraulic system. This allows the machine to accommodate workpieces of various heights. Additionally, the arm can rotate around the column, enabling drilling at multiple angles without repositioning the part — a significant advantage in time-saving and operational convenience.
Modern radial drilling machines, like those offered by Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd., come equipped with advanced electrical and hydraulic systems. The electrical system controls power supply, motor functions, and safety interlocks. The hydraulic system, on the other hand, aids in the smooth and precise movement of the arm, spindle, and other components, reducing operator fatigue and increasing operational accuracy.
For beginners, learning the standard operating procedure of a radial drilling machine is essential to ensure both safety and machining accuracy. Below are the fundamental steps to operate the machine effectively:
Before starting, select a drill bit suitable for the material and required hole diameter. With the power off, insert the drill bit securely into the spindle chuck and tighten it using the appropriate tools. Then, install the workpiece using clamps or a vice to keep it stable during drilling.
One of the key advantages of a radial drilling machine is its flexible arm, allowing you to position the spindle precisely without moving the workpiece. Adjust the radial arm, column rotation, and spindle height to align with the desired drilling spot. Set the drilling depth using mechanical stops or digital depth settings based on your workpiece requirements.
Ensure the coolant system is functioning, and double-check that all components are secure. Turn on the machine and gradually increase the spindle speed to the desired level. Begin drilling with steady downward pressure. Use cutting fluid to reduce friction, enhance cooling, and prolong tool life. After reaching the desired depth, retract the spindle slowly to avoid damaging the workpiece surface.
While radial drilling machines are powerful and efficient, they involve moving parts and high-speed cutting, which can be hazardous if not handled properly. Here are important safety tips every beginner should follow:
Always wear safety goggles, gloves, steel-toed shoes, and hearing protection. Avoid loose clothing, long jewelry, or anything that could get caught in the rotating parts of the machine.
Even small workpieces must be clamped securely using proper fixturing tools. Loose workpieces can shift during operation, causing drill bit breakage or serious injury.
For tougher materials, cutting fluids help lower heat and improve drilling efficiency. To minimize splashing, use protective shields or coolant trays, and maintain a safe distance from the cutting area during operation.
Even with powerful capabilities, radial drilling machines can present challenges if not operated correctly. Beginners should be aware of these frequent mistakes to ensure safety and achieve quality results:
Failing to correctly align or secure the workpiece can lead to inaccurate holes, drill bit breakage, or even dangerous shifting during operation. Always ensure that the workpiece is firmly clamped and that the drilling point is accurately marked and aligned before starting the machine.
Each material and drill size requires a specific spindle speed and feed rate. Running the machine too fast can overheat the tool, while too slow a speed may cause inefficient cutting or tool wear. Refer to cutting parameter charts and manufacturer guidelines to select the appropriate settings.
Ignoring basic maintenance can lead to premature wear, reduced machine accuracy, and unexpected downtime. Check lubrication levels, clean chips and debris regularly, and inspect all moving parts to ensure everything functions properly.
Routine maintenance is essential to keeping your radial drilling machine in optimal condition. Here are some practical tips:
Lubricate the radial arm, column guideways, and spindle regularly to prevent friction and wear. Use only recommended lubricants and follow the maintenance schedule provided by the manufacturer.
Ensure that control buttons, wiring, and circuit connections are in good condition. Periodically check for loose connections or signs of overheating, especially in high-use environments.
Metal chips and spent coolant can accumulate quickly, leading to blockages or contamination. Clean the chip trays and coolant filtration systems regularly to prevent clogs and maintain smooth operation.
Mastering the operation of a radial drilling machine doesn't require years of experience—but it does demand a solid understanding of its structure, careful setup, safe practices, and consistent maintenance. By avoiding common mistakes and following structured operating steps, beginners can safely and efficiently produce high-precision drilling work.
