MWLNR1616H08 MWLNR2020K08 MWLNR2525M08 MWLNL2020K08 MWLNL2525M08 MWLNR2020K06 Tool Holder

EDGEV MWLNR1616H08 MWLNR2020K08 MWLNR2525M08 MWLNL2020K08 MWLNL2525M08 MWLNR2020K06 MWLNL CNC Lathe Cutter Tool Holder WNMG

Quantity:
Inquire Add to Basket

facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

EDGEV MWLNR1616H08 MWLNR2020K08 MWLNR2525M08 MWLNL2020K08 MWLNL2525M08 MWLNR2020K06 MWLNL CNC Lathe Cutter Tool Holder WNMG

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

Introduction of Lathe Tool Holder

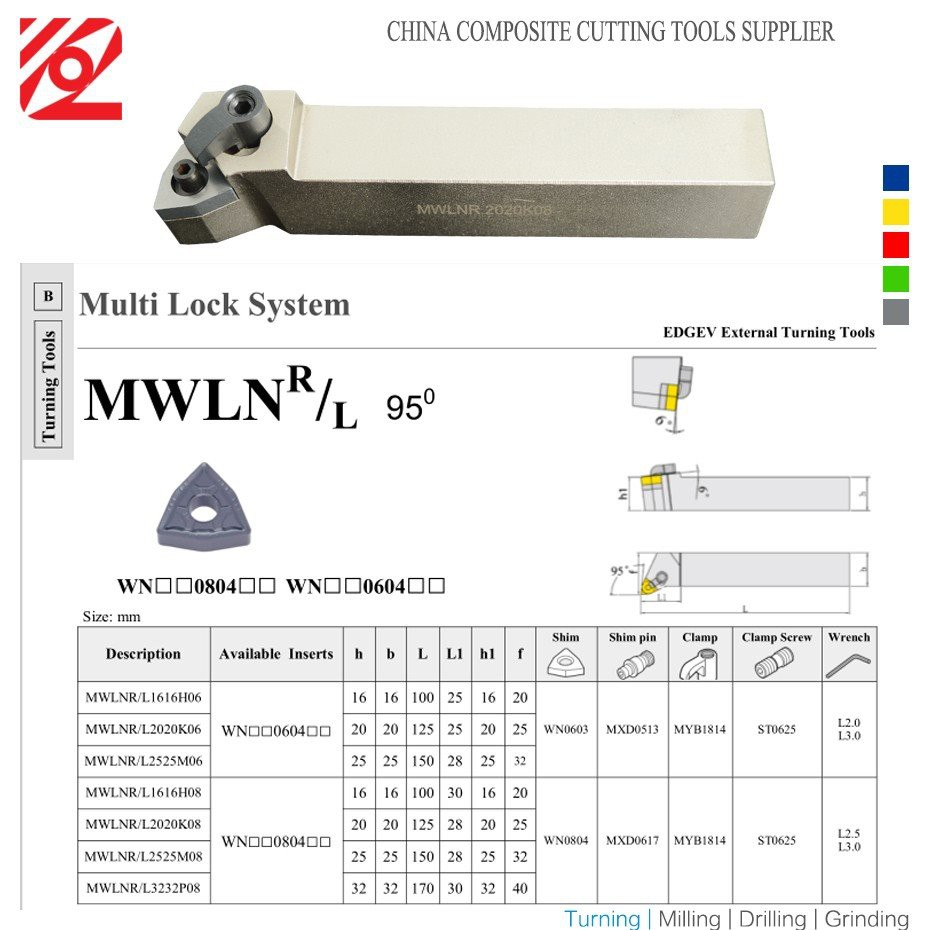

External Tool Holder Code System (ISO Standard)

01. Application: External Turning Tools
02. ISO Designation:MWLNR/L
03. Clamping Method: Multil Lock System
04. Available Inserts:WNMG060404/08 WNMG080404/08/12
05. Size of Shank:
MWLNR/L1616H06(H16mmxW16mmxL100mm For WNMG060404/08)
MWLNR/L2020K06(H20mmxW20mmxL125mm For WNMG060404/08)
MWLNR/L2525M06(H25mmxW25mmxL150mm For WNMG060404/08)
MWLNR/L1616H08(H16mmxW16mmxL100mm For WNMG080404/08)
MWLNR/L2020K08(H20mmxW20mmxL125mm For WNMG080404/08)
MWLNR/L2525M08(H25mm*W25mm*L150mm For WNMG080404/08)

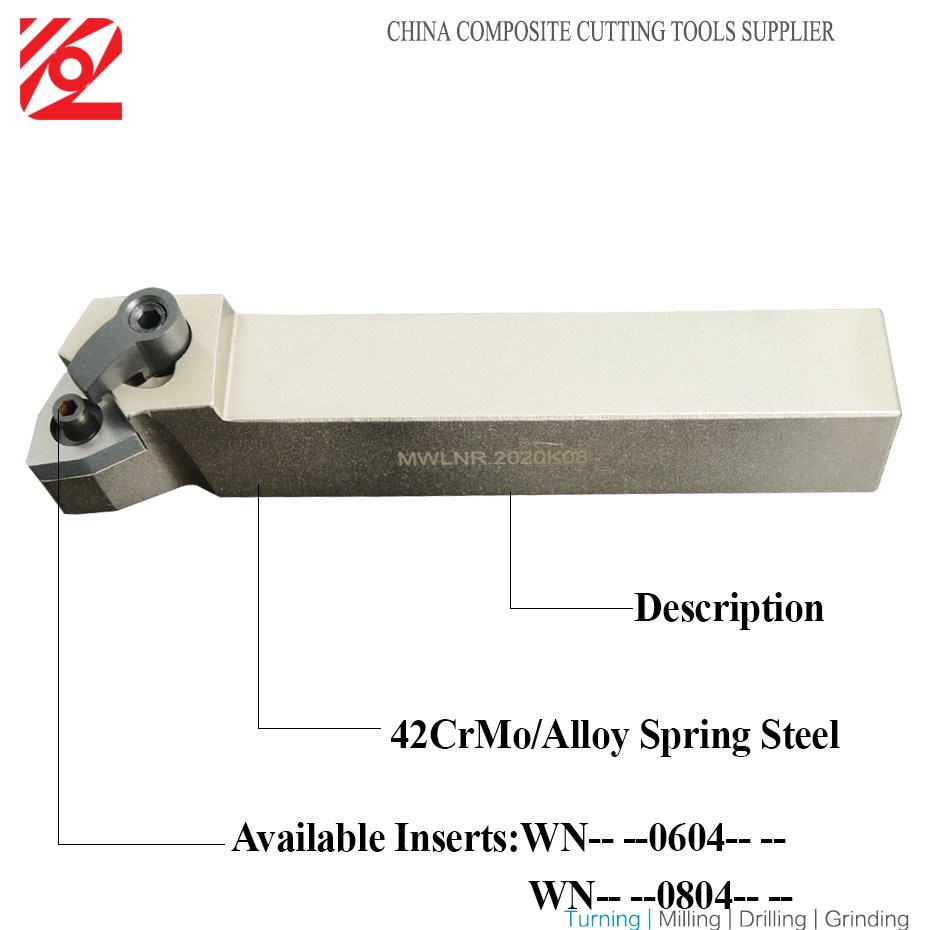

06. Grey Material: 42CrMo(Alloy Spring Steel)/Hardness: HRC45-50
07. Black Material: 40Cr/Hardness: HRC42-45
08. Color: Grey/Black
09. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)
10.Net Weight:240-780g(+-20g)
11.Gross Weight:280-850g(+-20g)

12.Package:Germany Rose Plastic

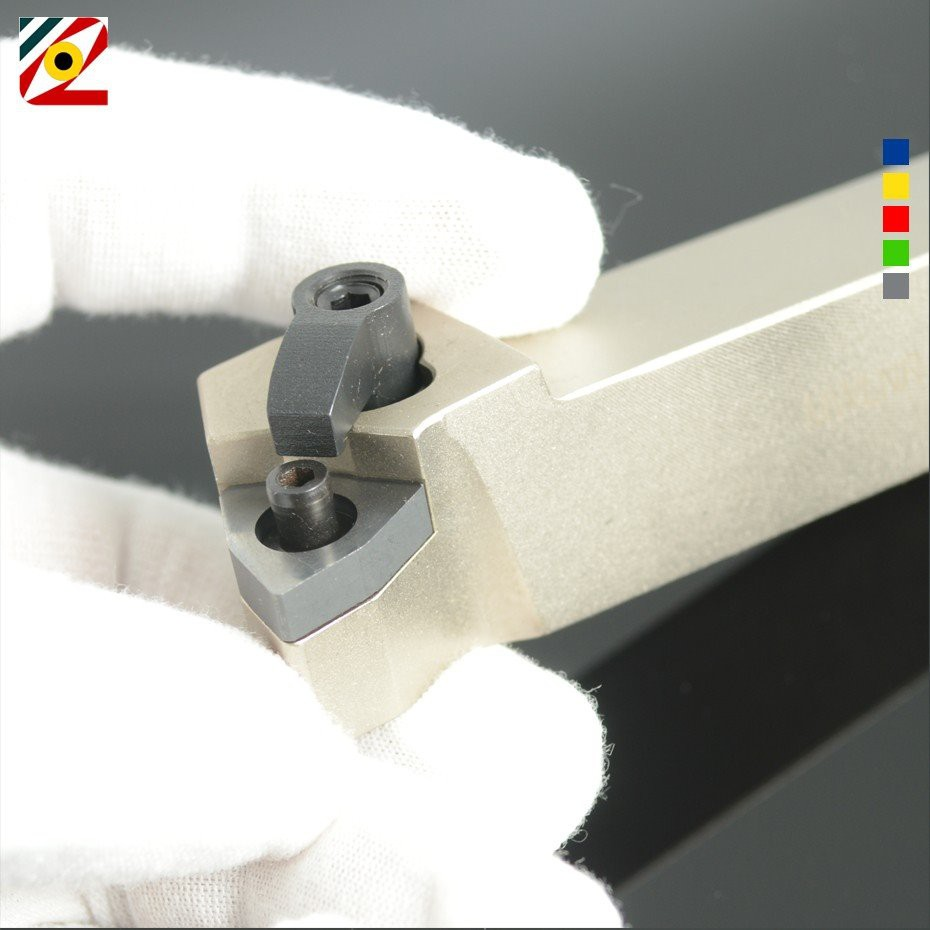

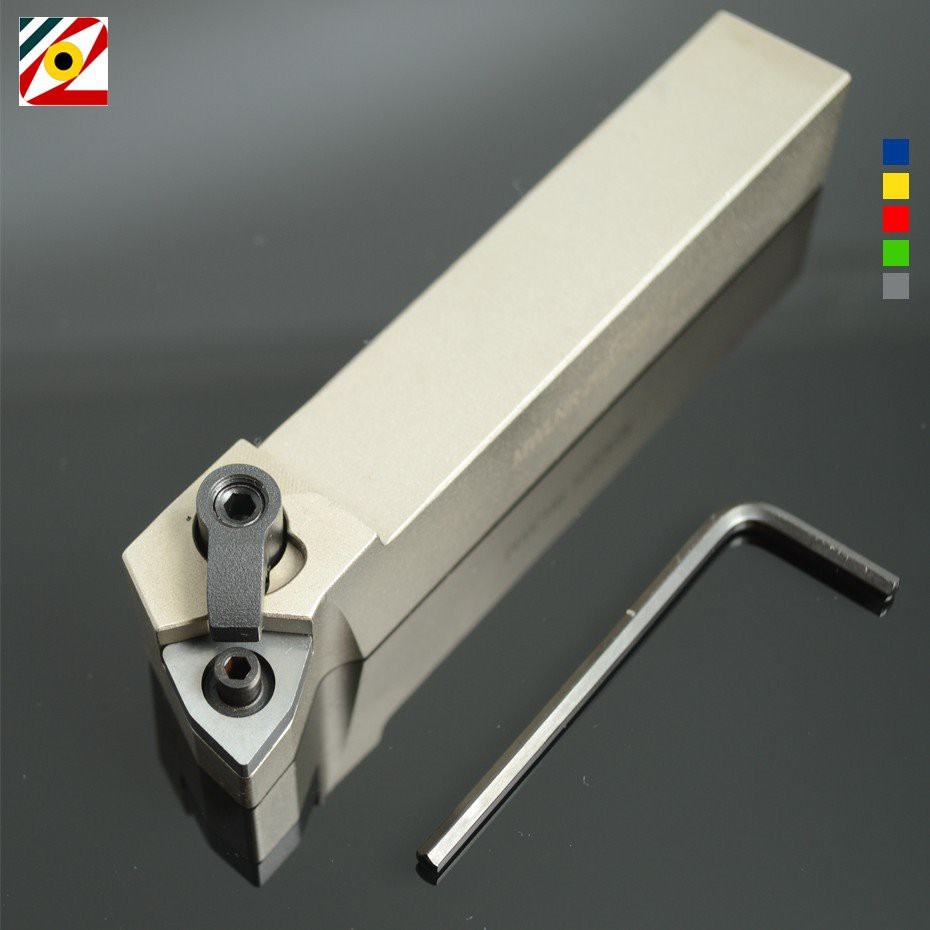

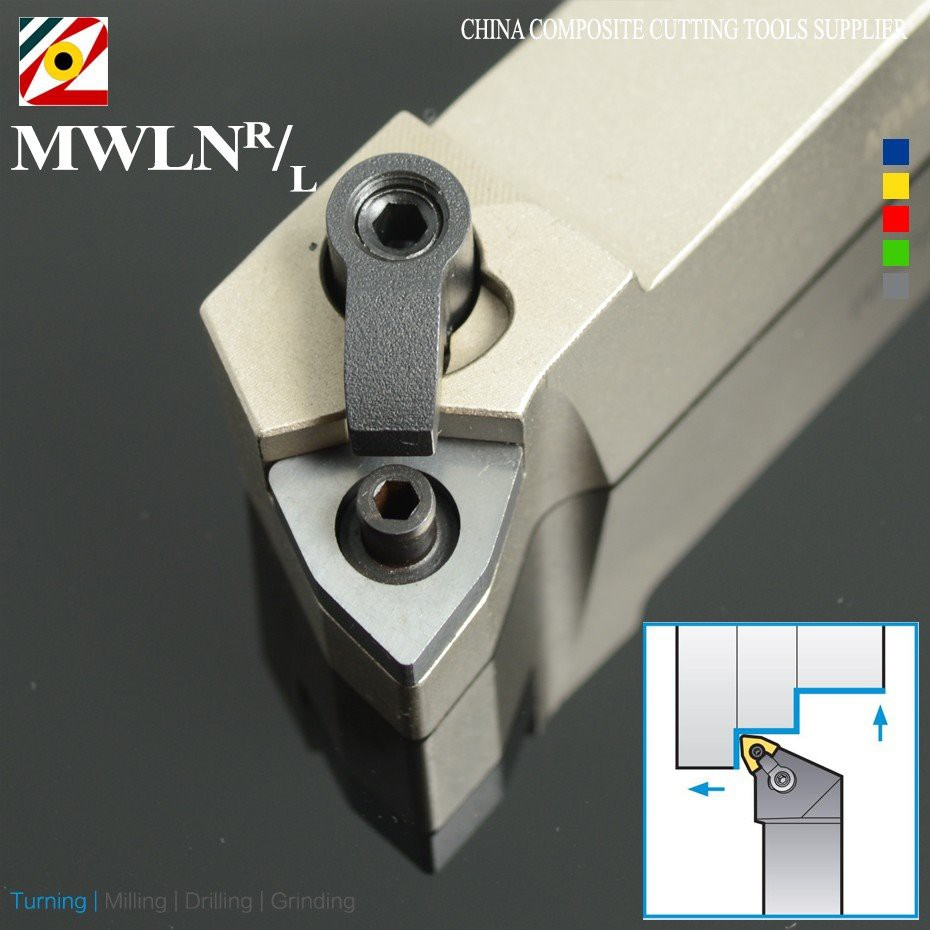

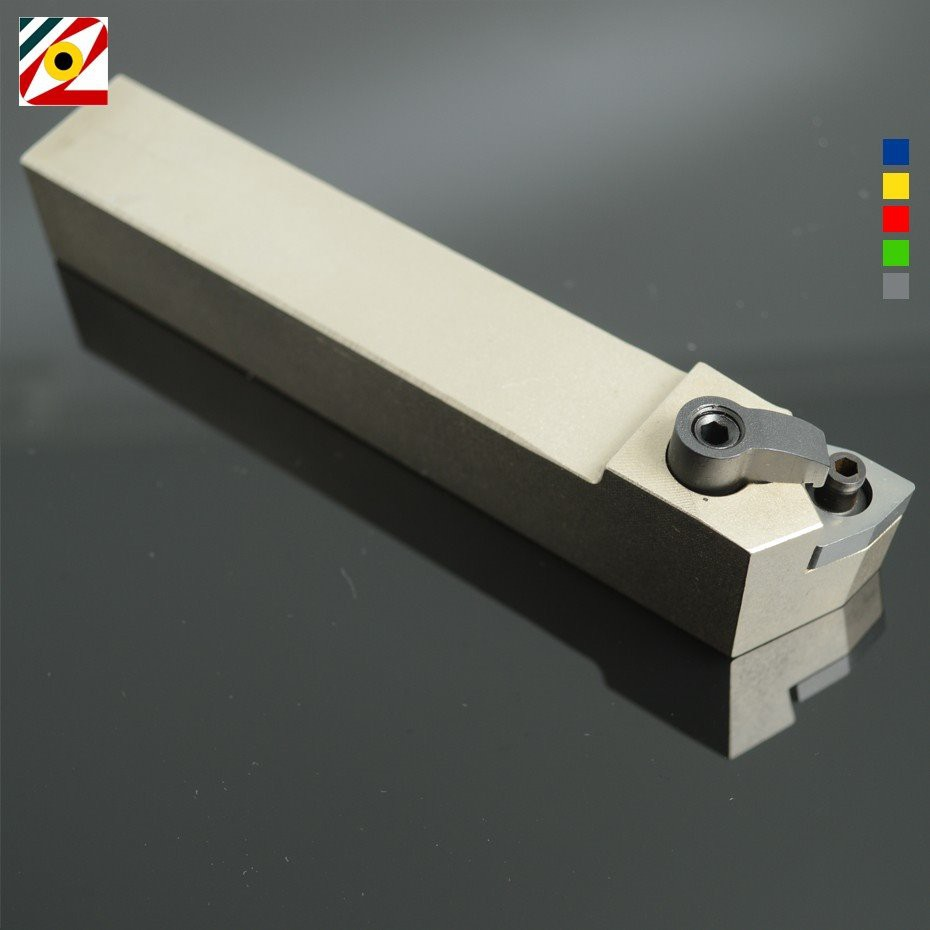

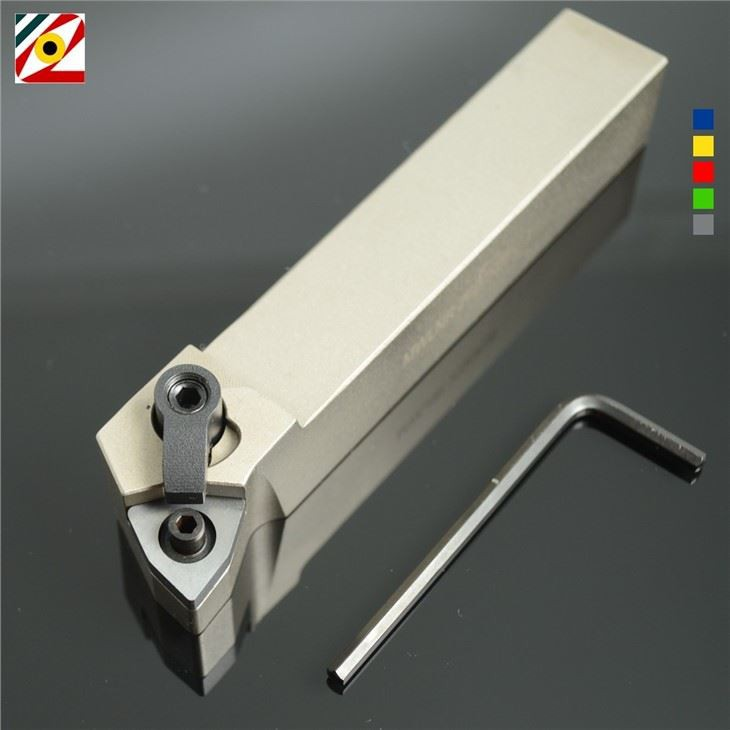

Show of Lathe Tool Holder

Lathe Tool Holder

H88f889670e24494494bd68a2b435d799S

H88f889670e24494494bd68a2b435d799S (1)

H63dd61b9692149b58c0c7e504ddb118ex

H30105ff8fb1b4a47870c51347e7e879dN

H2922d33a8df34bb190f4dbe8912e642fg

H7f3652aa06264461aca712061bb1d4ecS
