Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

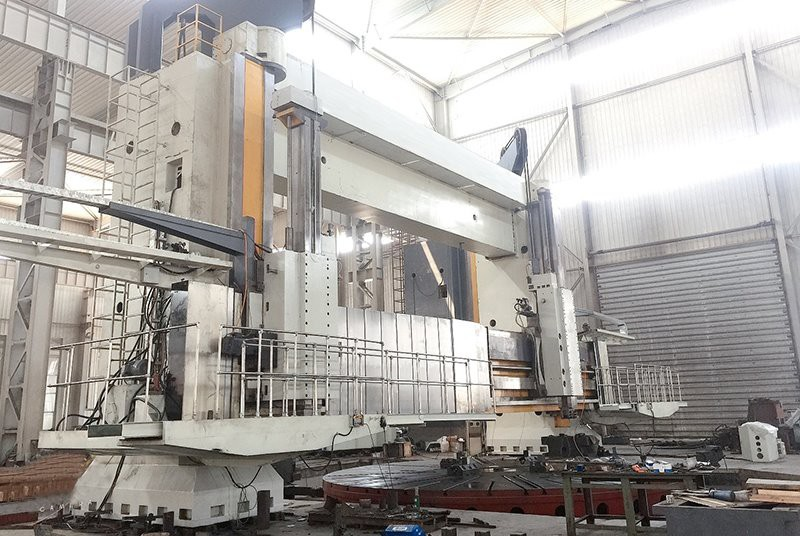

Introduction of Single Column CNC Vertical Lathe
1. The Single Column CNC Vertical Lathe is a compact, high precision, heavy duty machine. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal distortion and vibration dampening. It is designed for turning of small or medium size workpieces.
2. The X and Z axis linear roller guideways are completely enclosed and a forced lubrication system assures high precision. The high-speed linear way system enables rapid traverse rates and precision feeding traverse. The precision high class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision.
3. The Single Column CNC Vertical Lathe can equip with arm type ATC reduces tool change time to only 6 seconds and increases tool capacity utilizing the rigid dual contact CAPTO connection. The optional contouring C-axis and live spindle provide simultaneous milling capability. When coupled with the optional Y axis, the machine becomes a true 3 axis machining center. The live spindle features a solid locking 3 piece coupling for turning operations.
4. Optional Chip control is excellent as chips and coolant wash directly into the standard chip conveyor. An optional chip wash system forces any chips from the machining area into the conveyor. This type of VTL is designed for standing alone applications or is easily integrated into an automated production line.
Products Specification
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
Work piece
Customers of Single Column Vertical Turret Lathe: ITT, SIEMENS
Serious and professional Testing
Package and Shipping
