Feature of Fixed Beam CNC Double Column Vertical Lathe

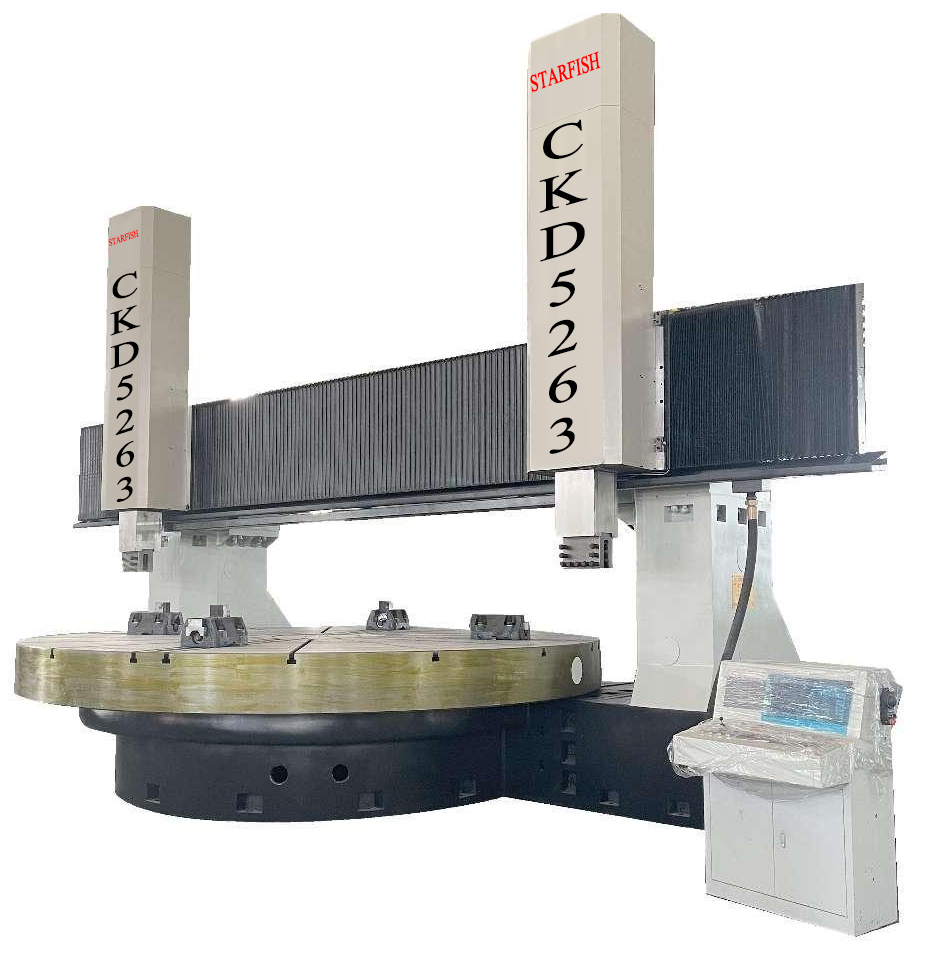

The CKD5263X10/50 CNC double-column fixed-beam vertical lathe is developed by our company based on years of user research, focusing on the machining of large annular forged parts. We have repeatedly organized relevant experts to analyze the processing technology and special requirements for machine tools, and optimized the structure and configuration of the lathe according to the process characteristics of users’ workpieces. This makes the CKD5263X10/50 more specialized, efficient and precise, and significantly improves the machining efficiency of large annular forged parts.

The CKD5263X10/50 CNC double-column fixed-beam vertical lathe is a heavy-duty double-tool-post machine suitable for roughing and semi-finishing of large annular forged parts.

Featuring a high-rigidity wide-span guide beam, long-travel large-section ram tool posts, high-load-capacity large-diameter hydrostatic guideway table, high-torque servo spindle motor, and large-module two-speed gearbox, the CKD5263X10/50 greatly enhances machining efficiency. Equipped with a high-precision encoder, the worktable enables constant-speed cutting.

The right tool post of the CKD5255X10/50 is controlled by a Siemens CNC system, while the left tool post adopts the Beijing Chaotongbu program control system. The machine delivers strong cutting capacity, high machining accuracy and excellent stability.

Adopting advanced contemporary design concepts and CAD optimization, the CKD5255X10/50 complies with the latest national standards and is equipped with high-performance functional components from domestic and overseas suppliers. It achieves heavy-duty cutting and high-precision machining, with a powerful worktable drive, high static and dynamic rigidity, reliable performance, long service life and high efficiency. It is an advanced mechatronic-hydraulic integrated product.
