Swing over bed: 360mm, 400mm, 450mm, 500mm, 600mm Spindle Bore: 65mm, 80mm(D6)
| Quantity: | |
|---|---|

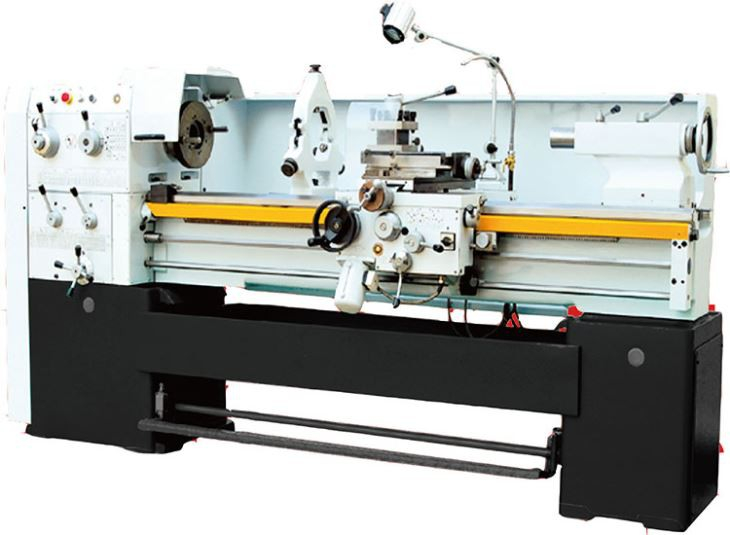

Product Introduction of DRO Horizontal Lathe
CJ-B series Vertical turret Lathe is Designed for maximum flexibility; due to the ‘combination’ design, these lathes, also known as electronic, teach-in, cycle or combination lathes, operator friendly controls: electronic hand wheels, variable speed, CSS and conversational programming. These lathes are most effective for complicated geometry parts, larger parts and limited production runs.
Manual lathes are ideal at easily and quickly cutting contours, tapers, threads (even repairing thread cycle), boring or grooves without special tooling.
It is manufactured with rules of ISO and CE principle.
Products Specification of DRO Horizontal Lathe
Model NO. | CJ6236B/C | CJ6240B | CJ6245B | CJ6250B | CJ6260B |
Swing over bved | Φ360mm (16’’) | Φ400mm (18’’) | Φ450mm (18’’) | Φ500mm (20’’) | Φ600mm (24’’) |
Swing over carriage | Φ185mm (7-1/4’’) | Φ225mm (9’’) | Φ325mm (1-1/5’’) | Φ325mm | Φ360mm (14’’) |
Max. Swing in gap | Φ490mm (20’) | Φ530mm (21’’) | Φ580mm (23’’) | Φ630mm(25’’) | Φ730mm (29’’) |
Max. Length of workpiece | 1000/1500/580mm | ||||
Effective gap length | 260mm | ||||
Bed width | 330mm | ||||
Spindle bore | Φ65mm(B)/Φ80mm(D6)(C) | ||||
Spindle taper of bore | Metric 70 | ||||
Spindle number speed | 15 steps | ||||
Spindle range of speed | 20-1800rpm | ||||
Threads metric pitches | 0-28mm/66 | ||||
Threads imperial pitches | 1-56TPI/66 | ||||
Thread diametral pitches | 8-56d/33 | ||||
Threads module pitches | 0.5-3.5mm/33 | ||||
Range of feeds longitudinal | 0.072-4.036mm | ||||
Range of feeds cross | 0.036-2.019mm | ||||
External diameter of the tailstock quill | Φ65mm | ||||
Max. Traverse of the tailstock quill | 120 | ||||
Quill taper | NO. 5 (morse) | ||||
Max. Travel of compound rest | 130mm | ||||
Max. Cross slide travel | 305mm | ||||
Max. Size of tool shank(WxH) | 20x20mm 25x25mm | ||||
Power of main motor | 7.5kw | ||||
Over all size(LxWxH) | 2420(2920x3460)x 1150x1800mm | ||||
Net weight: | 1520/1750 | ||||

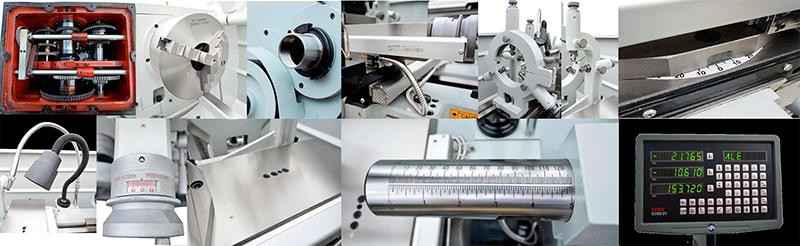

Production details of DRO Horizontal Lathe

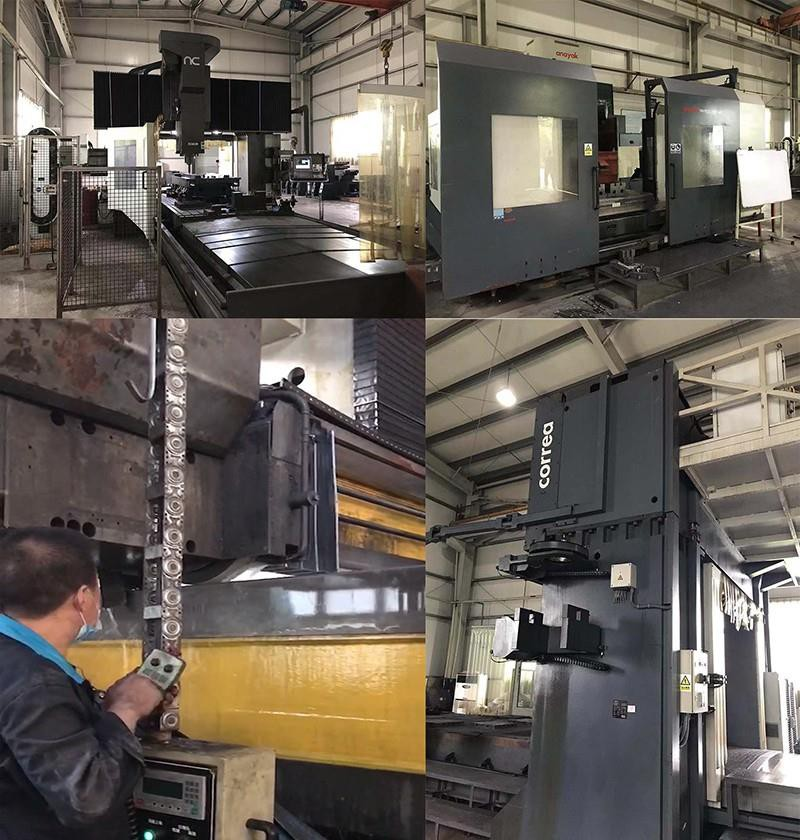

Manufacturing facilities of Flat Bed Manual Lathe

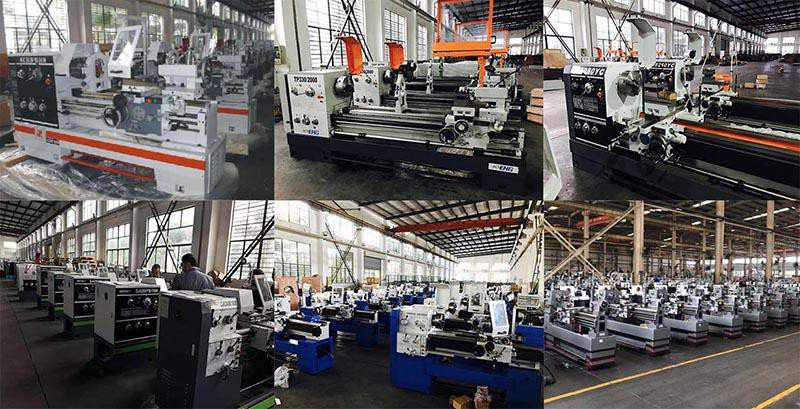

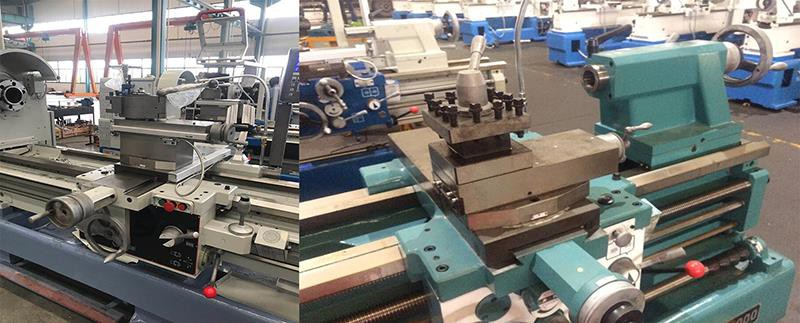

Glance of workshop of Horizontal Lathe

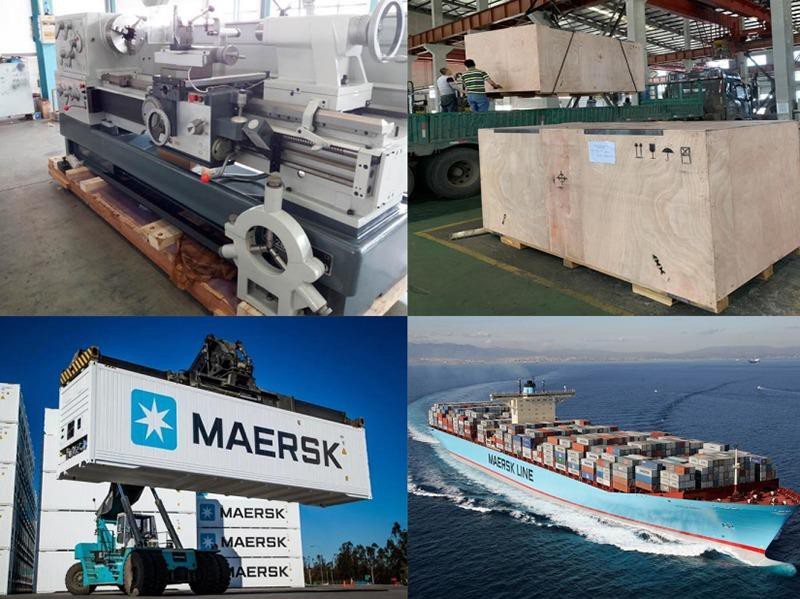

Package and Shipping of DRO Horizontal Lathe
