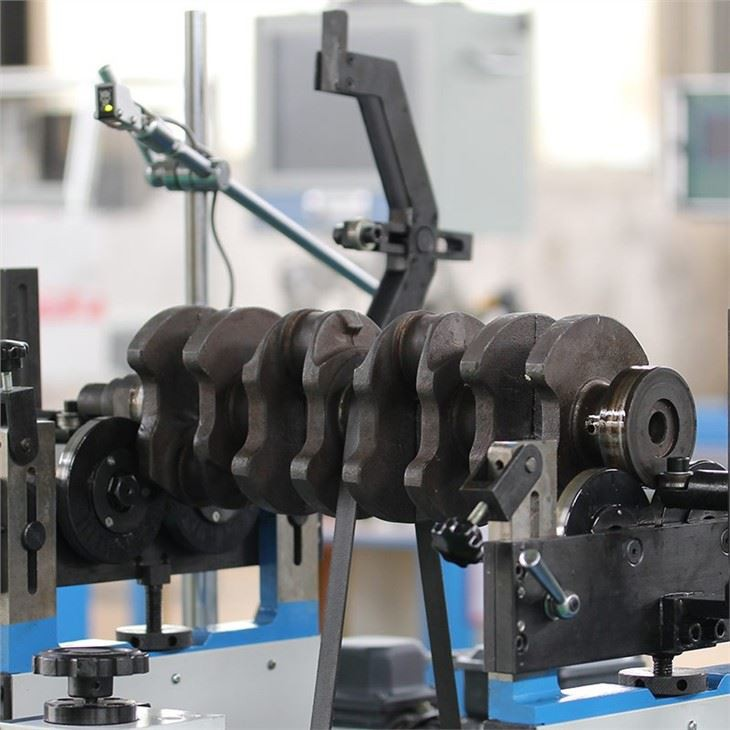

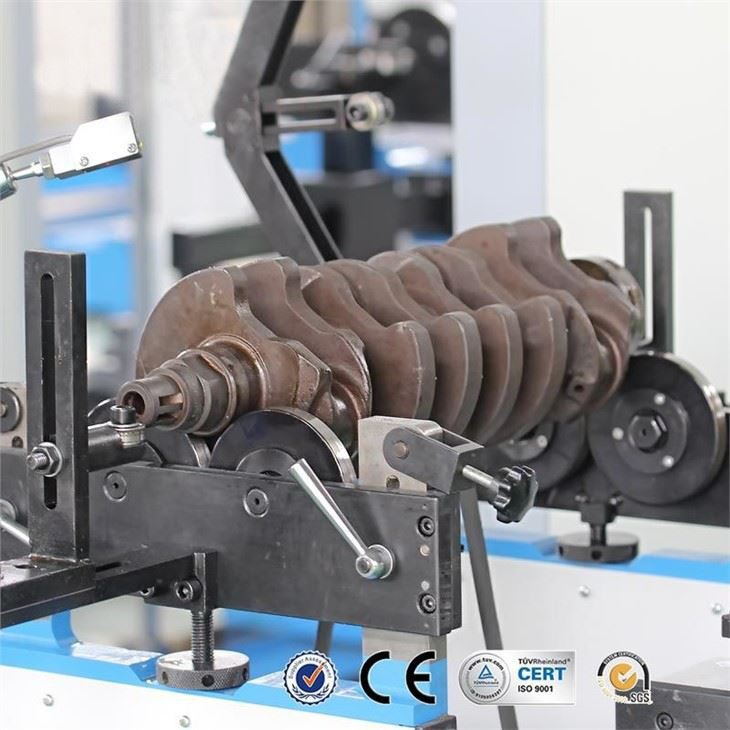

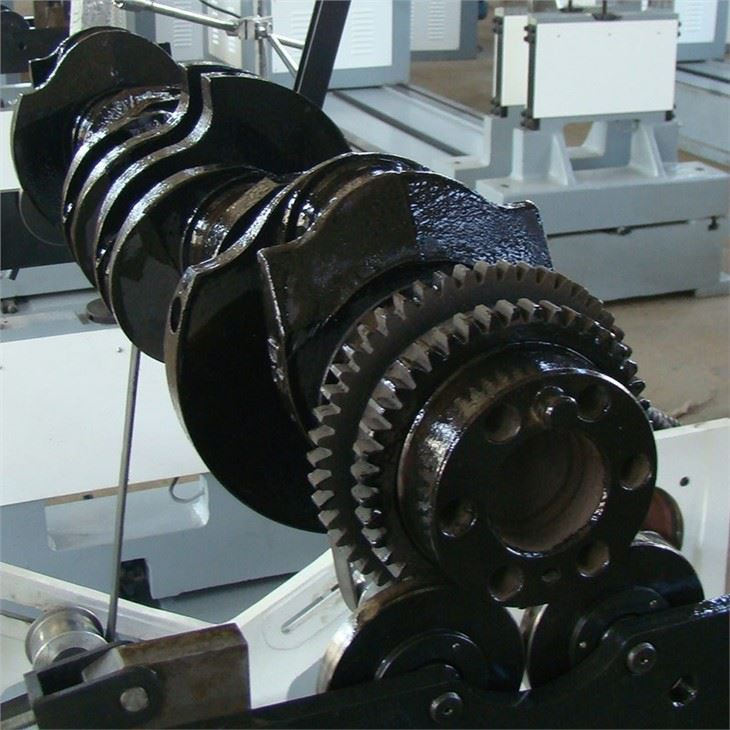

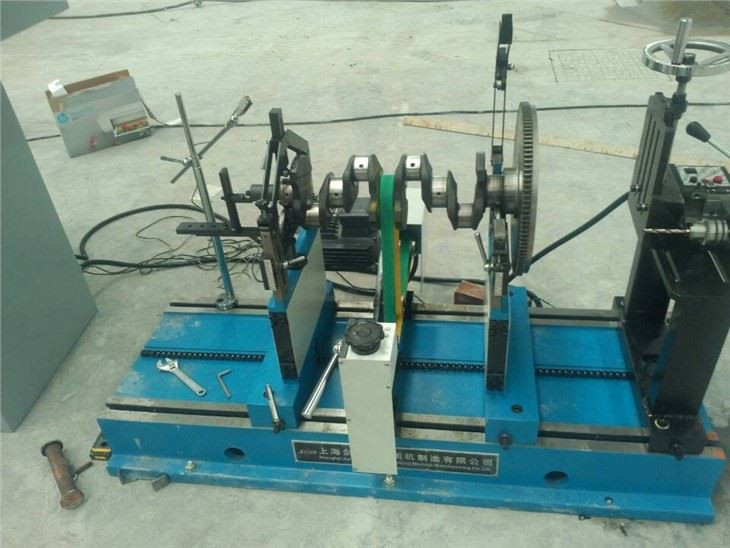

Production Description of Crankshaft Balancing Machine
• Specially designed brackets transmit mechanical force with low vibration damping and high rigidity
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Application of Crankshaft Balancing Machine
This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

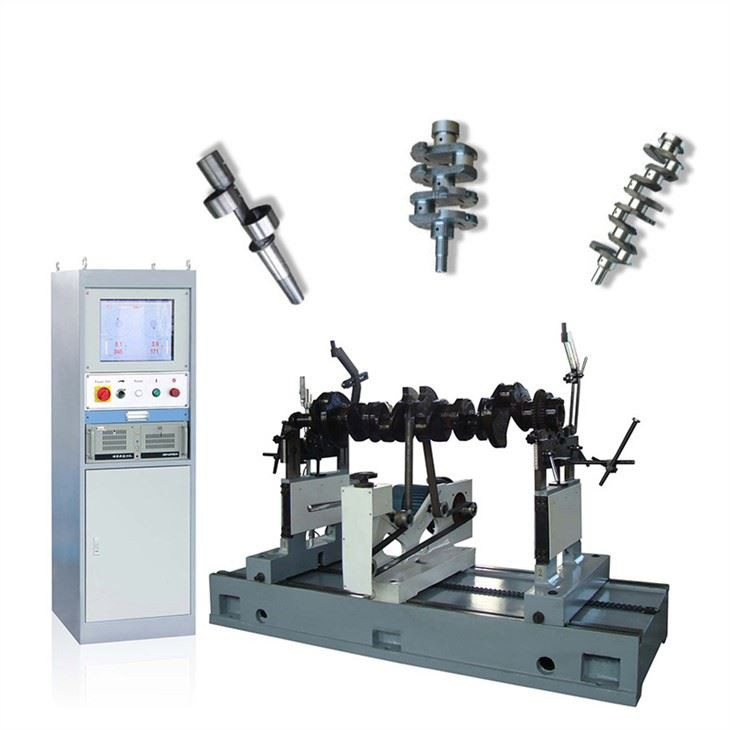

Production Parameters sheet of Crankshaft Balancing Machine
Technical data at a glance | SFQ-160 |
Max Mass of Workpiece (kg) | 160 |
Max Diameter of Workpiece (mm) | 1000 |
Distance between Two Support Bearings (mm) | 130~1270 |
Journal Diameter Scope of Workpiece (mm) | 15~753) |
Max Diameter Scope of Driving Belt (mm) | 600 |
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 756,11761) |
Motor Power (kw) | 2.22) |
Length of Bed (mm) | 1500 |
Min Achievable Residual Unbalance Amount(emar) | 0.5g· mm/kg |
The JP-580 computer controllers description as follows :
17 inch LCD screen, Balancing technology algorithm, Consummate scaliing process, many kinds of compensate models, sensor disconnection alarm, curor guide the angle, multiple measure report form
large storage of data, Chinese,English, Russian, Spanlish languages, digital and vector display at same time

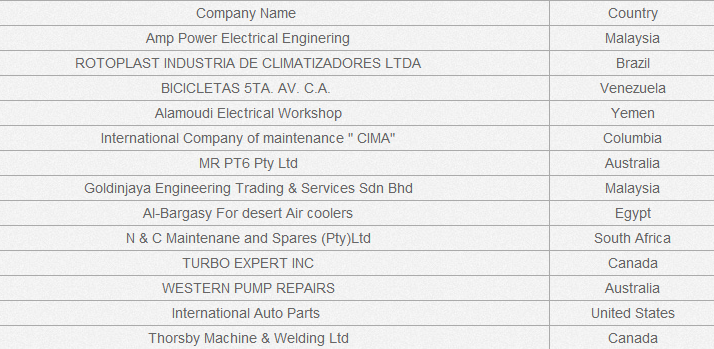

Cooperation customer
Strict Product Quality Control
Approved Certificates:

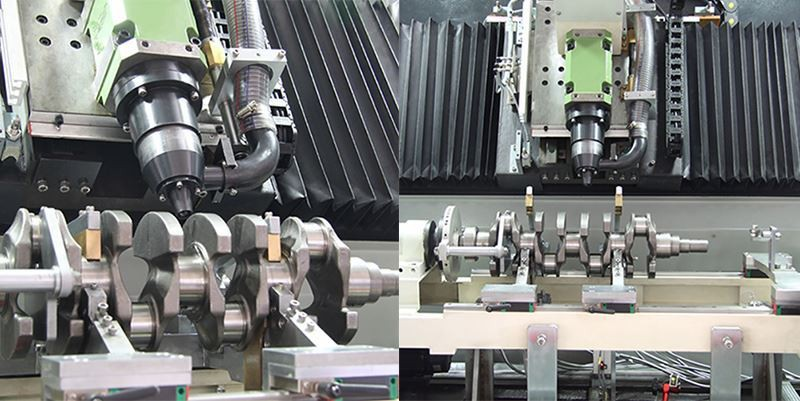

For Crankshaft Automatic Balancing Correction Machine, click the picture:
