Floor type milling and boring machines are essential tools in industries such as heavy machinery manufacturing, energy equipment production, shipbuilding, and rail transportation. Their ability to handle large, heavy, and complex workpieces with high precision makes them indispensable in modern machining operations. However, given their size, complexity, and powerful cutting capabilities, safe operation is critical to prevent accidents, equipment damage, and ensure optimal productivity.
This comprehensive guide will cover the key safety practices and operational principles that every operator and workshop manager should follow when using floor type milling and boring machines. By understanding the machine’s features and adhering to safety protocols, users can create a secure working environment, maximize machine lifespan, and improve machining quality.

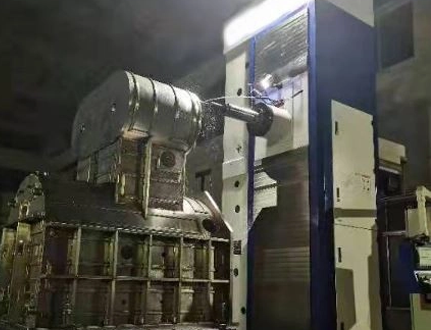

To operate a floor type milling and boring machine safely and effectively, it is essential to understand its core structural components and their functions. These machines are designed to handle large, heavy-duty workpieces with precision, and their complex structure contributes significantly to both machining accuracy and operational safety.
Cross Beam:
The cross beam spans horizontally across the machine and supports the main spindle head. It allows lateral movement, enabling the spindle to reach various positions over the large workpiece. The strength and rigidity of the cross beam are crucial for maintaining stability during heavy cutting.
Column:
The vertical column provides robust support for the cross beam and the spindle head assembly. It ensures vertical stability and precise vertical movements (Z-axis) of the tool. A sturdy column is essential to reduce vibration and deflection during machining.
Saddle/Slide:
The saddle sits on the bed and supports the table or workpiece fixture. It enables longitudinal movement (Y-axis), allowing for precise positioning of the workpiece relative to the cutting tool.
Worktable:
The worktable is the platform where the workpiece is clamped. It must be capable of supporting extremely heavy loads, sometimes reaching several tons, while maintaining flatness and rigidity. The worktable may also include rotary or indexing features to facilitate multi-angle machining.
CNC Control System:
Modern floor type milling and boring machines are equipped with sophisticated CNC control units that coordinate multi-axis movements. These systems allow for programmable machining cycles, automatic tool changes, and real-time feedback, enhancing precision and operational safety by reducing human error.
Hydraulic System:
The hydraulic system controls various machine functions such as clamping, lifting, and spindle feed mechanisms. Proper maintenance and operation of hydraulic components are vital to prevent unexpected movements and ensure smooth machine operation.
Before starting any machining process with a floor type milling and boring machine, thorough preparation is essential to ensure both operator safety and machining accuracy. Proper pre-operation checks and secure workpiece setup help prevent accidents and guarantee stable, precise cutting performance.
Lubrication Check:
Verify that all guideways, sliding surfaces, and spindle bearings are adequately lubricated. Proper lubrication minimizes friction and wear, reducing the risk of overheating or unexpected machine stoppage during operation.
Electrical System Inspection:
Examine the electrical connections, control panels, and emergency stop buttons. Ensure that cables are intact without damage and that control devices function properly. Faulty electrical components can cause sudden machine failures or hazards.
Guideway and Mechanical Components:
Inspect the machine’s guide rails, ball screws, and feed mechanisms for cleanliness and free movement. Remove any debris, chips, or coolant residue that may obstruct smooth motion. Confirm that all guards and covers are securely in place.
Secure Clamping:
Properly fix the workpiece on the worktable using appropriate clamps, bolts, or fixtures. The workpiece must be immobile throughout the machining process to avoid vibrations or displacements that can affect precision or cause accidents.
Precise Alignment:
Align the workpiece accurately relative to the machine’s axes using dial indicators, edge finders, or laser alignment tools. Correct positioning is crucial, especially for multi-face or multi-hole machining, to ensure the final product meets dimensional specifications.
Check Workpiece Stability:
After clamping and alignment, apply a test force to verify the workpiece does not shift or loosen. Re-tighten clamps if necessary to maintain absolute stability.
Operating a floor type milling and boring machine involves handling heavy equipment and sharp cutting tools, making safety precautions critical to protect operators and maintain smooth production. Implementing the following key safety measures during machining can significantly reduce the risk of injury and equipment damage.
Safety Glasses or Goggles:
Protect your eyes from flying metal chips, coolant splashes, and dust generated during milling and boring operations. Clear, impact-resistant eyewear is essential for preventing eye injuries.
Hearing Protection:
Milling and boring machines often produce high noise levels, which can cause long-term hearing damage. Wearing earplugs or earmuffs helps safeguard your hearing during extended machine operation.
Safety Shoes:
Steel-toed safety shoes provide protection from heavy workpieces or tools accidentally dropping, as well as preventing slips and falls in the workshop.
Avoid Physical Contact with Moving Parts:
Keep hands, clothing, and other body parts away from the spindle, cutter, and workpiece during machine operation. Loose clothing or jewelry should be removed to prevent entanglement.
Use Machine Guards and Shields:
Ensure all protective guards and covers are properly installed and functional before starting machining. Guards prevent accidental contact with rotating tools and help contain chips and coolant.
Observe Machine Displays and Indicators:
Continuously monitor CNC screens, control panels, and status indicators for any abnormal readings such as overload warnings, spindle speed anomalies, or axis errors.
Respond Promptly to Alarms:
If the machine emits an alarm or stops unexpectedly, immediately halt operations and investigate the cause. Ignoring system alerts can lead to severe machine damage or safety incidents.
Emergency Stop Readiness:
Always keep emergency stop buttons accessible and know how to use them effectively to quickly shut down the machine in case of emergencies.
Ensuring safety does not end when the machining process stops. Proper post-operation procedures are crucial for maintaining a safe workshop environment, prolonging machine life, and preparing for the next production cycle. Following correct shutdown and cleanup routines helps prevent accidents and equipment failures.
Gradual Machine Stop:
Once machining is complete, gradually reduce spindle speed and feed rates before stopping the machine. Sudden stops can cause mechanical stress and affect machine components.
Turn Off Power Supply:
After the spindle and axes come to a complete stop, power down the CNC control system and main machine power. Always follow the manufacturer’s recommended shutdown sequence to avoid electrical faults.
Engage Safety Locks:
If applicable, activate machine safety locks or disable controls to prevent unauthorized or accidental startup.
Remove Metal Chips Safely:
Use brushes or vacuum systems specifically designed for chip removal. Avoid using bare hands to prevent injuries from sharp metal fragments.
Clean Coolant Spills:
Wipe away coolant residues on the machine and floor promptly to prevent slips and corrosion.
Organize Tools and Fixtures:
Return all tools, clamps, and measuring instruments to their designated places to maintain a tidy and efficient workspace.
Perform Scheduled Maintenance:
Regularly inspect and lubricate moving parts such as guide rails, ball screws, and spindle bearings. Timely maintenance reduces wear and machine downtime.
Check Electrical and Hydraulic Systems:
Periodic verification of wiring, sensors, and hydraulic components ensures stable machine operation.
Maintain Operation Logs:
Document machine usage, maintenance activities, and any irregularities encountered during operation. Logs help identify patterns and support preventive maintenance planning.
Operating a floor type milling and boring machine involves various risks that, if not properly managed, can lead to accidents, equipment damage, and production downtime. Understanding these common hazards and implementing preventive measures is essential for maintaining a safe and efficient workshop.
Using the wrong type, size, or material of cutting tools can cause poor machining quality, tool breakage, and potential injury to operators.
How to Avoid:
Select tools appropriate for the workpiece material and machining requirements. Follow manufacturer recommendations, regularly inspect tools for wear or damage, and replace them promptly.
Insufficiently secured workpieces may vibrate or shift during machining, affecting precision and posing serious safety risks from potential ejection.
How to Avoid:
Use suitable fixtures and clamps to ensure a firm hold. Double-check the workpiece’s position and clamping force before starting operations. Employ additional supports if necessary.
High-pressure coolant jets can splash onto operators or the floor, creating slip hazards. Contact between coolant and electrical components increases the risk of electrical shock.
How to Avoid:
Install guards and spray control devices to contain coolant. Maintain proper sealing of electrical enclosures, regularly inspect wiring and grounding systems, and ensure operators wear appropriate protective gear like gloves and slip-resistant shoes.
Ensuring the safe operation of floor type milling and boring machines is essential not only for protecting operators but also for prolonging machine life and maintaining high-quality machining results. By adhering to strict safety protocols, conducting regular maintenance, and proactively managing potential risks, manufacturers can create a safer, more efficient production environment with fewer interruptions. Prioritizing safety ultimately boosts productivity and operational reliability.
