Feature of Dynamic Balancing Machine 1. Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving offers...
| Quantity: | |
|---|---|

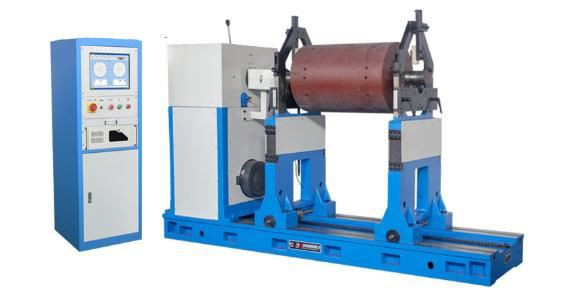

Inroduction of Pump Balancing Machine

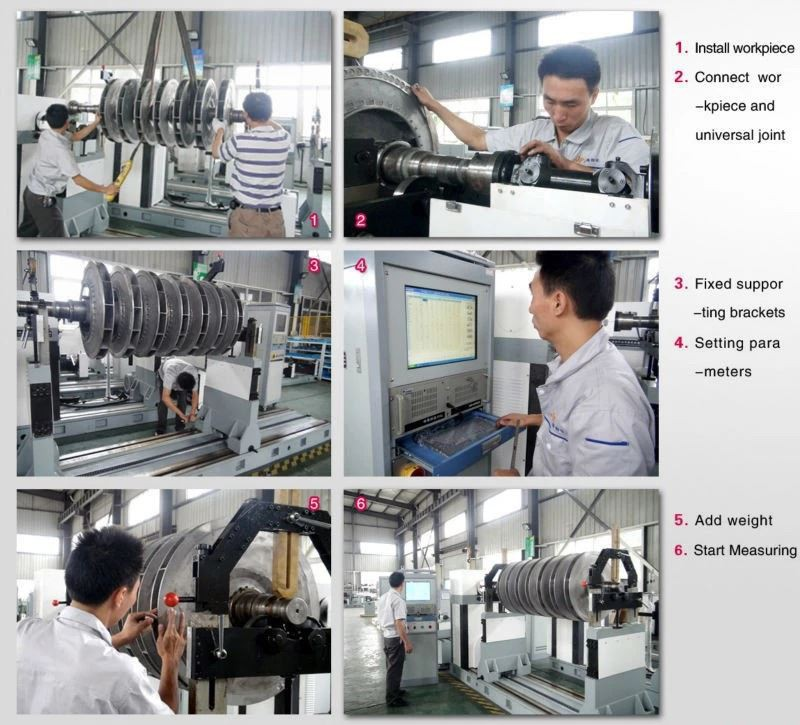

The balancing machine uses a belt for rotating the rotor on the balancing machine. The advantage of the belt drive is the error from the thin relatively weightless belt is low giving more precise balancing results compared to an end drive with universal shaft coupling. The belt drive arrangement is ideal for rotors where there is space available to mount a belt, the traction requirements are moderate and higher accuracy is required.

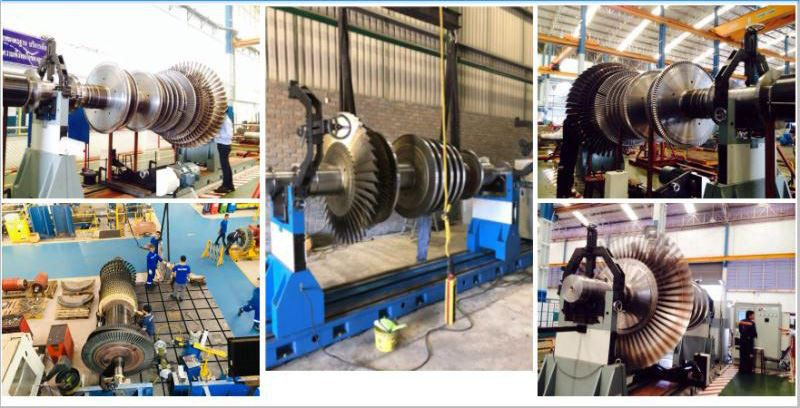

Application of Pump Balancing Machine
1. Pump Balancing Machine have the rotor mounted horizontally on them. They are usually supported on two supports and are driven through the use of a belt drive or an end drive arrangement. The balancing on a horizontal balancing machine can be done in two planes or on a single plane.

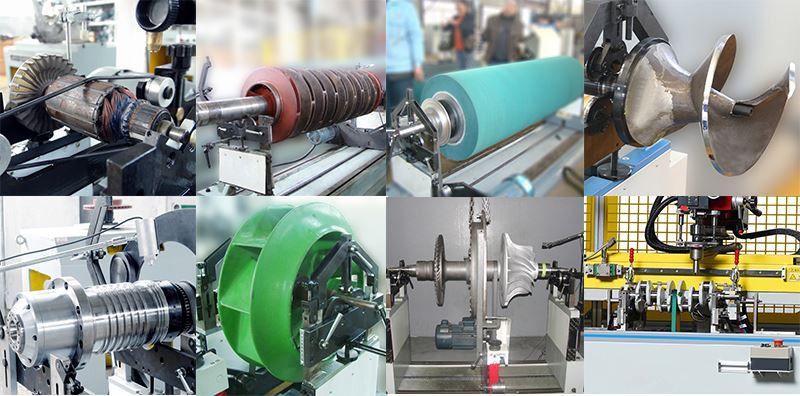

2. Balancing machines are available for components ranging from few hundred grams to many thousand kilograms.
3. Precibalance horizontal hard bearing balancing machines come with the following features standard to enable users to have a quick and easy operation
Parameter of Pump Balancing Machine
Technical data | SFQ-1.6/5 | SFQ-1.6A/5A | SFQ-G5 | SFA-5 | SFQ-16A | |
Max Mass of Workpiece(kg) | 1.6/5 | 1.6/5 | 5 | 5 | 16 | |
Max Diameter of Workpiece (mm) | Φ300 | Φ300 | Φ300 | 400 | Φ300 | |
Distance Between Two Support Bearings (mm) | 15~500 | 15~500 | 15~500 | 15~500 | 15~500 | |
Journal Diameter Scope of Workpiece (mm) | Φ 3~40(120°) | Φ 3~40 | Φ 3~40 | Φ 3~40 | Φ 3~40 | |
Diameter Scope of Driving Belt (mm) | Φ20~85 | Φ15~150 | Φ20~85 | Φ15~150 | Φ15~150 | |
Technical data | SFQ-50 | SFQ-16H | SFQ- 160Z | SFQ- C160H | SFQ-30H | SFQ-500H |
Max Mass of Workpiece(kg) | 50 | 160 | 160 | 160 | 300 | 500 |
Max Diameter of Workpiece (mm) | Φ700 | Φ1000 | Φ300 | 400 | Φ1220 | Φ1500 |
Distance Between Two Support Bearings (mm) | 80~700 | 130~1270 | 130~1270 | 130~1270 | 130~1270 | 130~1270 |
Journal Diameter Scope of Workpiece (mm) | Φ 8~753) | Φ 15~753) | Φ200-300 | Φ200 | Φ 15~753) | Φ 15~753) |
Diameter Scope of Driving Belt (mm) | Φ18~200 | Φmax400 | Φmax300 | Φmax400 | Φmax500 | Φmax600 |
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 700,10501) | ~1176 | 75001) | 756,11761) | ~1176 | ~1176 |
Motor Power (kw) | 0.752) | 1.52) | 42) | 1.52) | 1.52) | 2.22) |
Technical data | PHQ-1000H | PHQ-2000H | PHQ-3000H | PHQ-5000 | ||
Max Mass of Workpiece(kg) | 1000 | 2000 | 3000 | 5000 | ||
Max Diameter of Workpiece (mm) | Φ1600 | Φ1800 | Φ2100 | Φ2400 | ||
Distance Between Two Support Bearings (mm) | 160~1780 | 160~1780 | 160~2280 | 500~2200 | ||
Journal Diameter Scope of Workpiece (mm) | Φ 25~1204) | Φ25~1204) | Φ25~1204) | Φ40~380 | ||
Diameter Scope of Driving Belt (mm) | Φmax700 | Φmax800 | Φmax900 | Φ50~1000 | ||

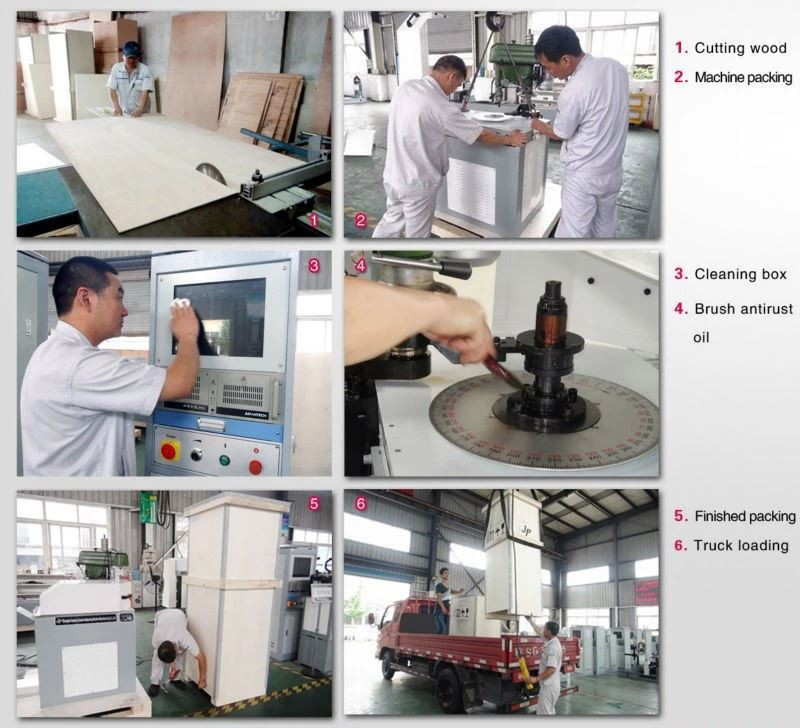

Packaging
