Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature

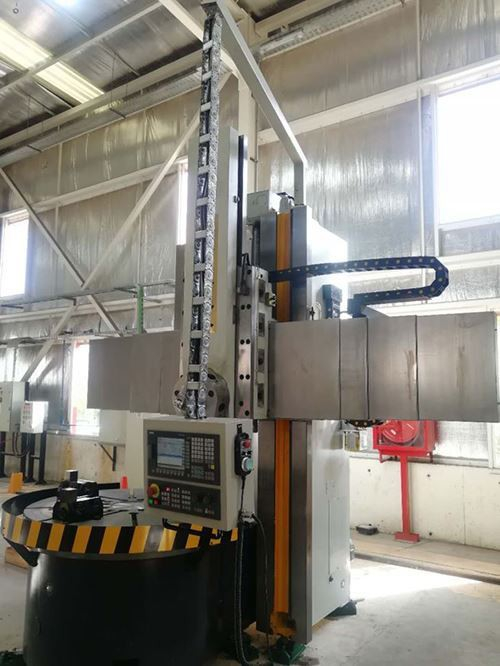

With development of CNC Vertical Lathe turning Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these CNC Vertical Lathe Turning are a favorite for manufactures, fabricators, maintenance shops and machine shops.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

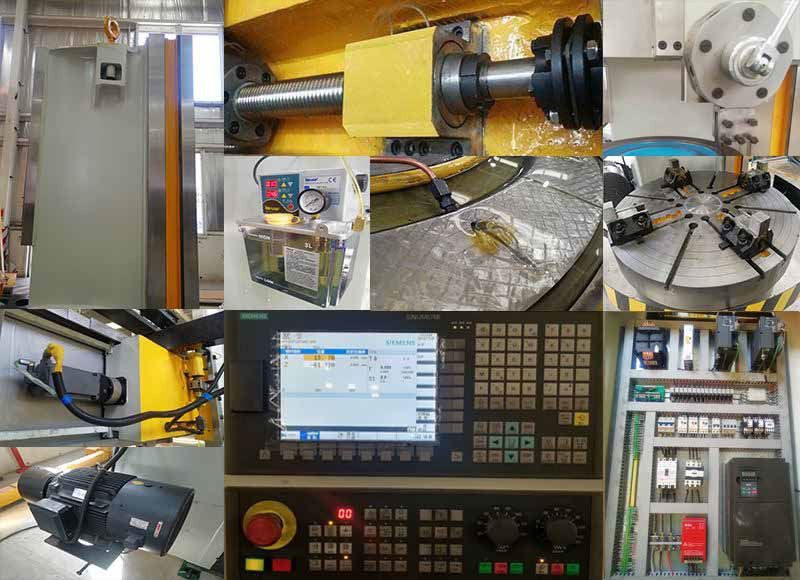

Production details

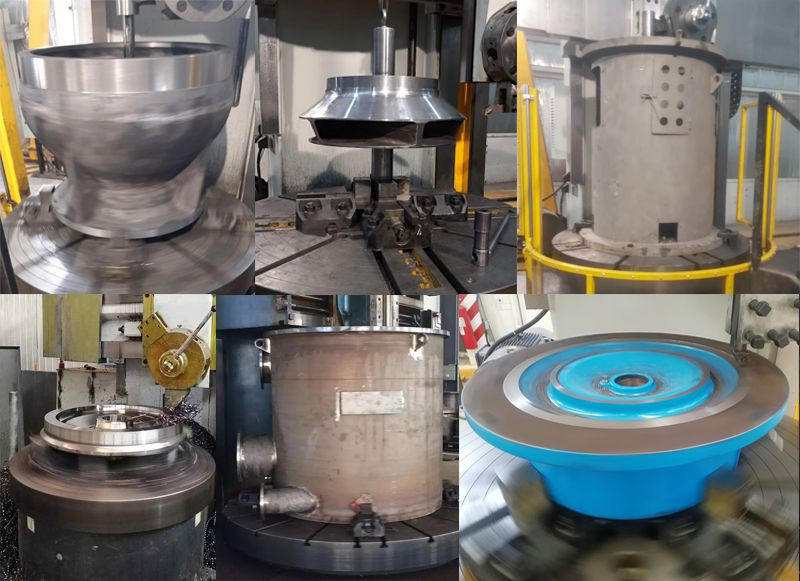

Work piece
Customers

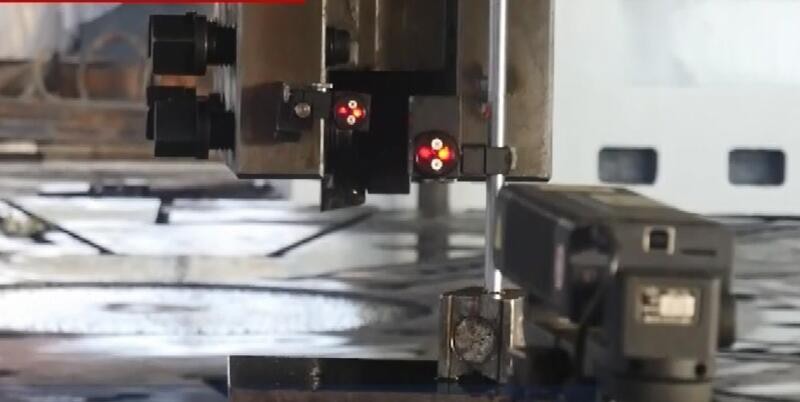

Serious and professional testing
Package and Shipping
The machine will be tested N times before packaging to guarantee 100% no problem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
Valè
Entegrite: Li soti nan yon sans onè epi li baze sou respè pou tèt li ak pou lòt moun. Fè moun yo aji ak entegrite.
Inite: Sa a se youn nan valè imen eksepsyonèl, oryante nan koperasyon mityèl ant moun, espesyalman lè rankontre difikilte.
Responsablite: Konsyan ke sa nou fè oswa sa nou sispann fè ka gen kèk konsekans pou lòt moun oswa pou tèt nou.
Ponktyalite: Pou bay pèsonalite nou ak karaktè, lòd ak efikasite, ede nou fè travay nou pi byen epi fè konfyans.
Kominikasyon: Li ede nou byen fè echanj panse, panse ak santiman ak moun ki bò kote nou nan yon atmosfè cordial.
Travay ann ekip: Nou ajoute, nou tout bezwen youn lòt, nou se protagonist yo nan menm pwojè a ak menm istwa a, nou pouswiv yon objektif komen.
Entegrite: Kit ou trete lòt moun oswa tèt ou, toujou aji an akò ak valè jistis, onètete, verite ak jistis.
Poukisa Chwazi Nou
1.Pi bon eleman
Prèske tout eleman nan zouti machin soti nan Almay, Japon, Amerik ak byen konnen manifakti Lachin.
2.Kliyan
Nou gen kliyan referans nan plis pase 40 nasyon, tankou Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Teknoloji
Ki sa nou posede se teknoloji a fiks pou fabrike zouti machin, ki garanti fiks epi ki gen pi long lavi travay.
4.Strictly Deteksyon Kalite
Kalite zouti machin nou yo ak presizyon estrikteman garanti pa CMM, Dial endikatè elatriye ak travayè ki gen eksperyans nou yo.
5. Pèp nou
Pèp nou yo se pwofesyonèl, janti ak travay di pou kliyan nou yo.
Feature
With development of CNC Vertical Lathe turning Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these CNC Vertical Lathe Turning are a favorite for manufactures, fabricators, maintenance shops and machine shops.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
Work piece

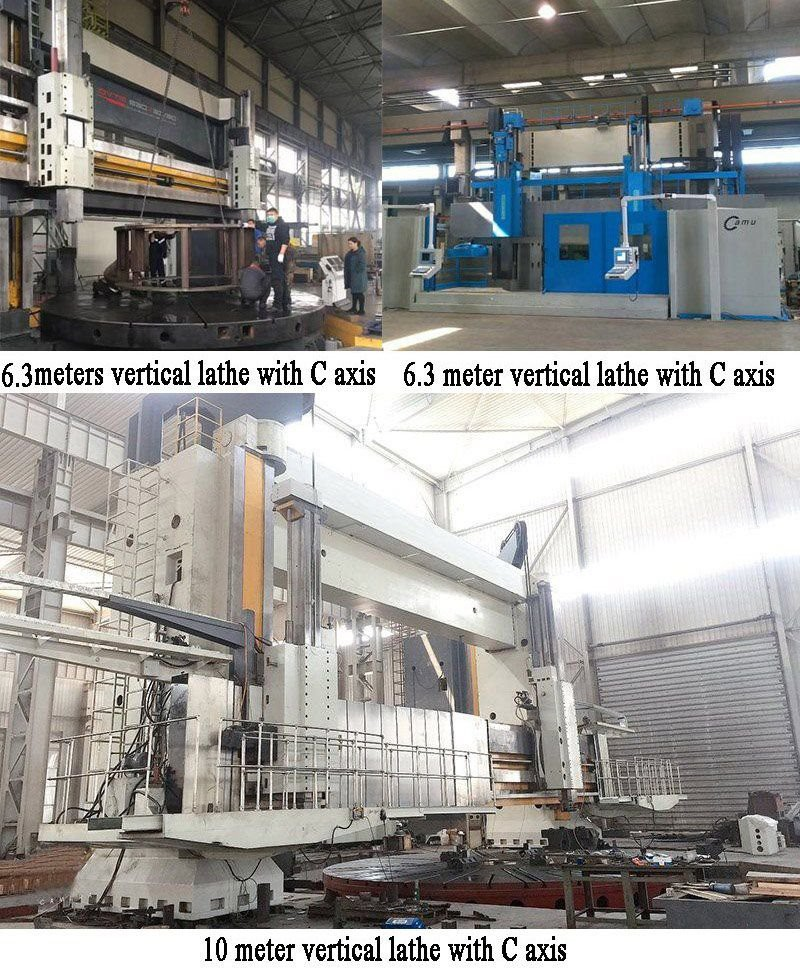

Customers
