Swing over bed: 500mm, 660mm, 800mm Spindle Bore: 82mm
| Quantity: | |
|---|---|

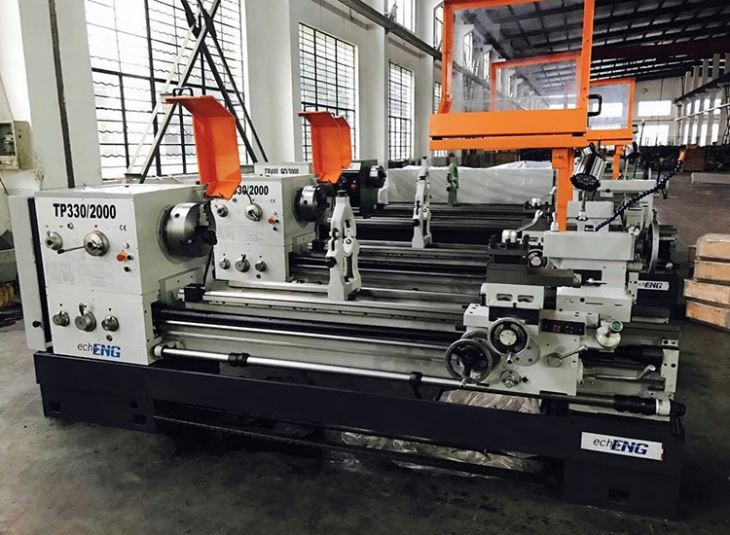

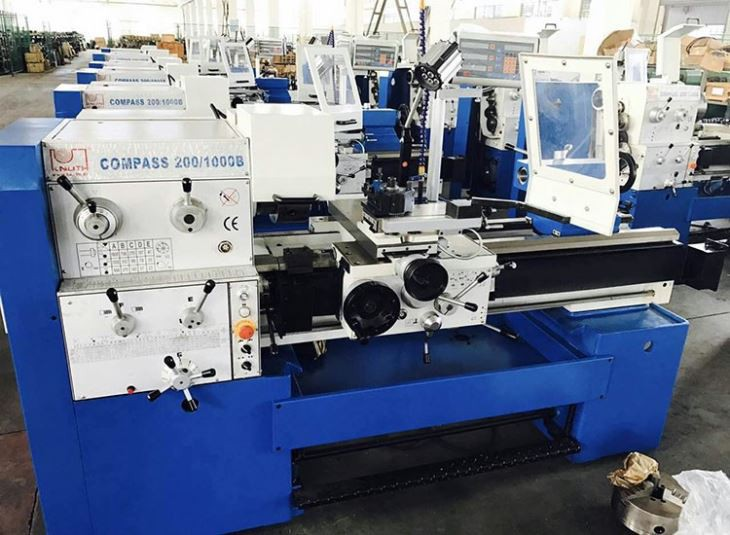

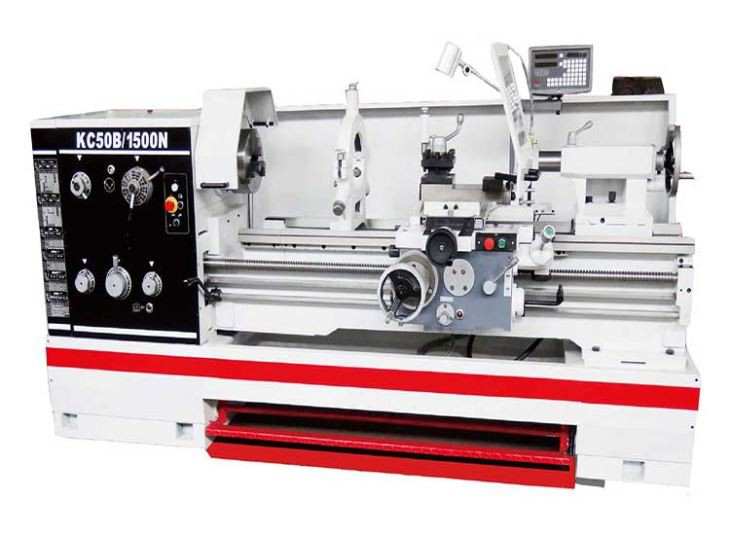

Feature of CJ-YB Horizontal Conventional Lathe Machine
Emergency stop buttons on the headstock and apron
Chuck guard monitored through limit switch
Change gear door monitored through limit switch
Restart protector in case of power cut
We can put your logo on our machine.
He voltage can be changed as per needs.
Delivery time is about 30-90 days.
All our machines are packed with sea worthy wooden package with strong fixing.
Products Specification of Horizontal Conventional Lathe Machine
Model NO. | CJ6250YB | CJ6266YB | CJ6280YB |
Swing over bed | Φ500mm(20’’) | Φ660mm(26’’) | Φ800mm(31’’) |
Swing over carriage | Φ300mm(12’’) | Φ420mm(17’’) | Φ560mm(22’’) |
Max. Swing in gap | Φ710mm(28’’) | Φ870(34’’) | Φ1010(40’’) |
Max. Length of workpiece | 1000/1500/2500/2000/3000/4000mm | ||
Effective gap length | 230mm | ||
Bed width | 405mm | ||
Spindle bore | Φ82mm | ||
Spindle taper of bore | |||
Spindle number speed | 24 steps | ||
Spindle range of speed | 9-1600rpm | ||
Threads metric pitches | 0.5-224mm/48 kinds | ||
Threads imperial pitches | 72-1/8TPI/46 kinds | ||
Thread diametral pitches | 56-1/4D/45 kinds | ||
Threads module pitches | 0.5-112mm/42 kinds | ||
Range of feeds longitudinal | 0.028-6.43mm(0.001’’-0.2392’’) | ||
Range of feeds cross | 0.012mm-2.73mm(0.004’’-0.1032’’) | ||
External diameter of the tailstock quill | Φ75mm | ||
Max. Traverse of the tailstock quill | 150 | ||
Quill taper | NO. 5 (morse) | ||
Max. Travel of compound rest | 145mm | ||
Max. Cross slide travel | 360mm | ||
Max. Size of tool shank(WxH) | 25x25mm | ||
Power of main motor | 7.5kW/9kW | ||
Over all size(LxWxH) | 2700/3200/3700/4200/5700)x1150x1800mm | ||
Net weight: | 2850-5300kg | ||

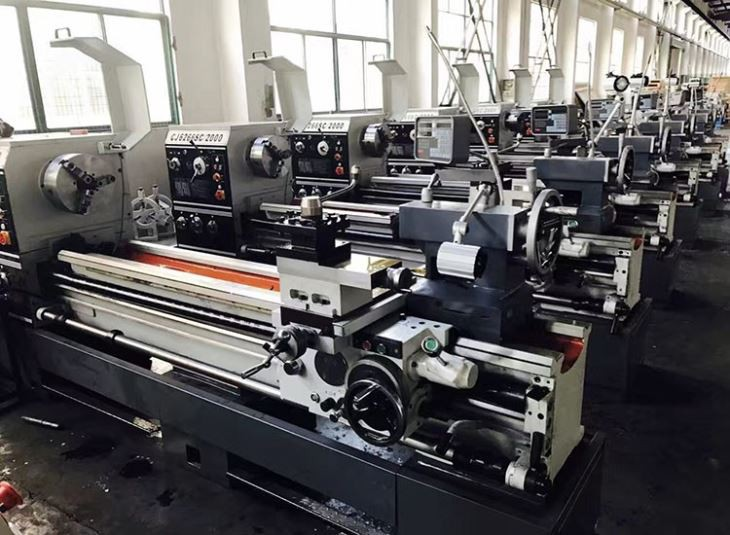

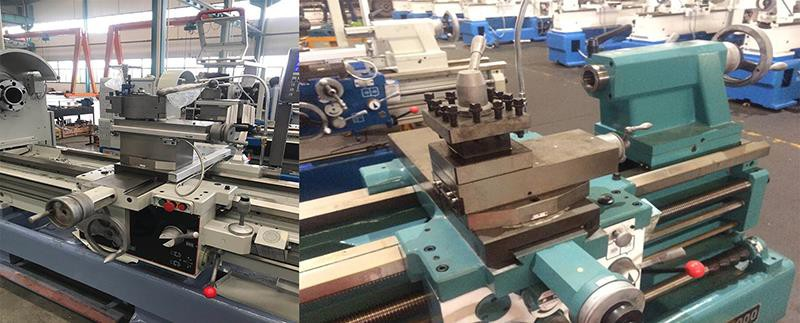

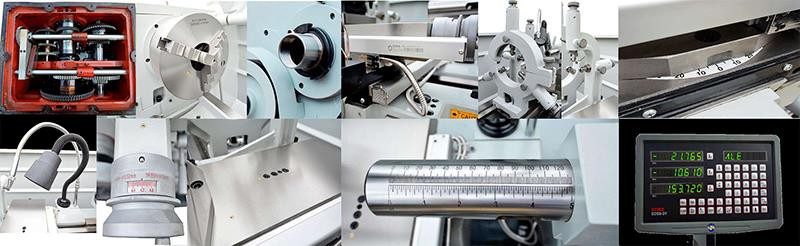

Production details

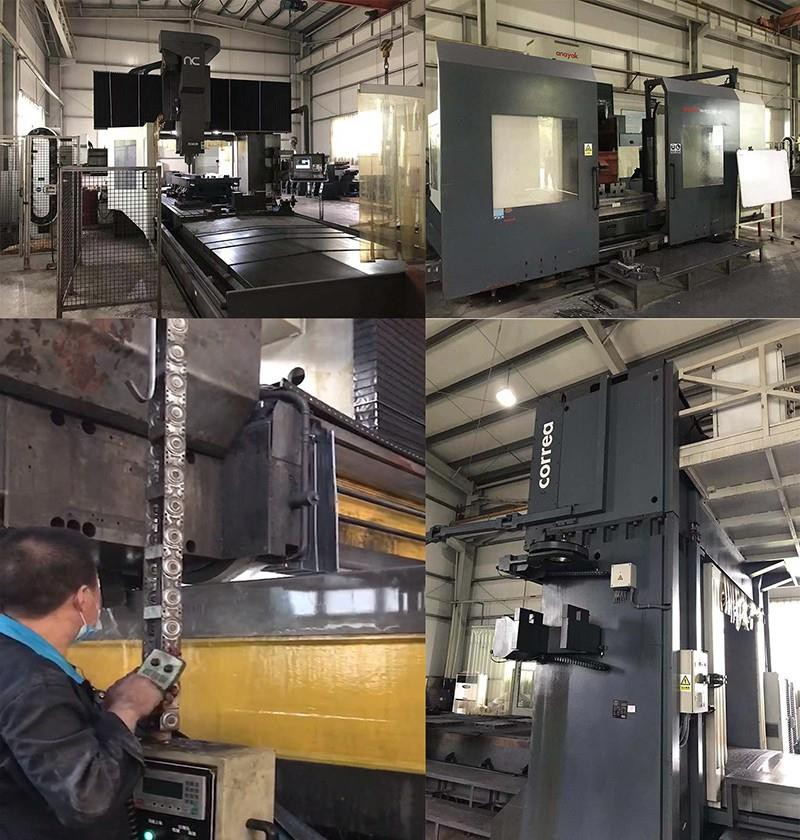

Manufacturing facilities

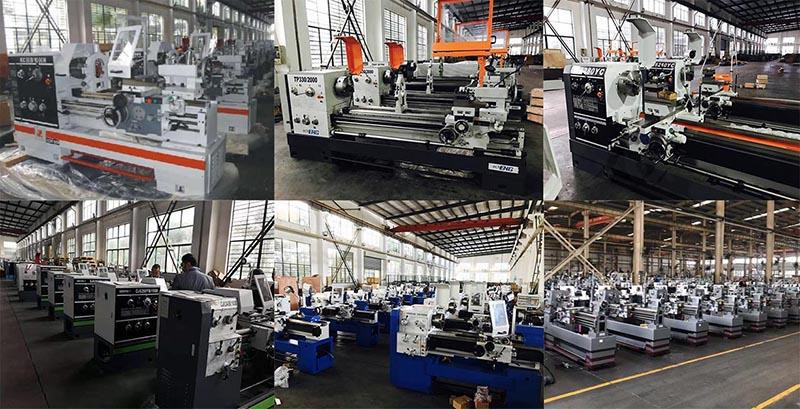

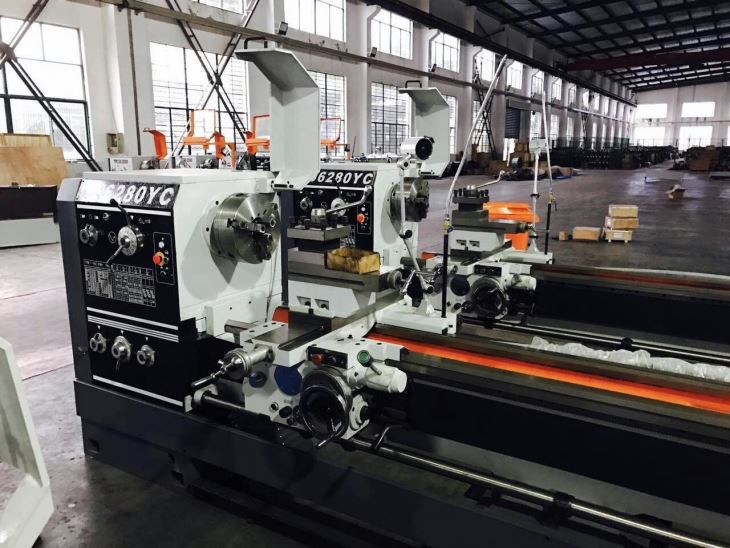

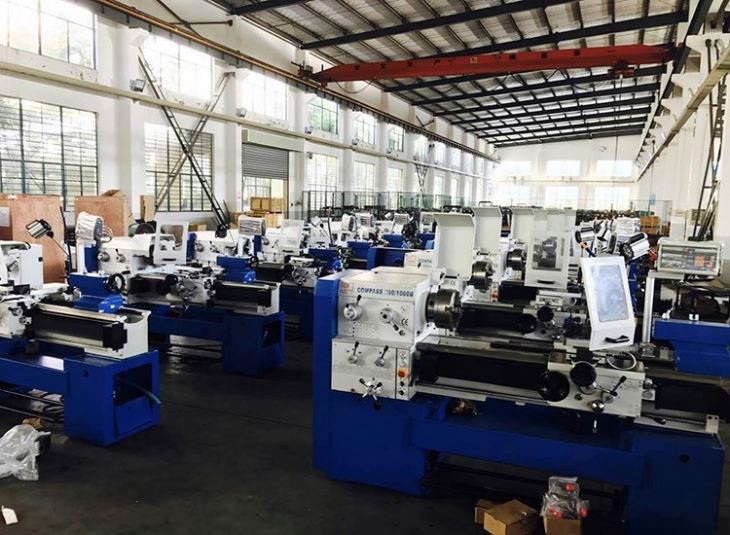

Glance of workshop

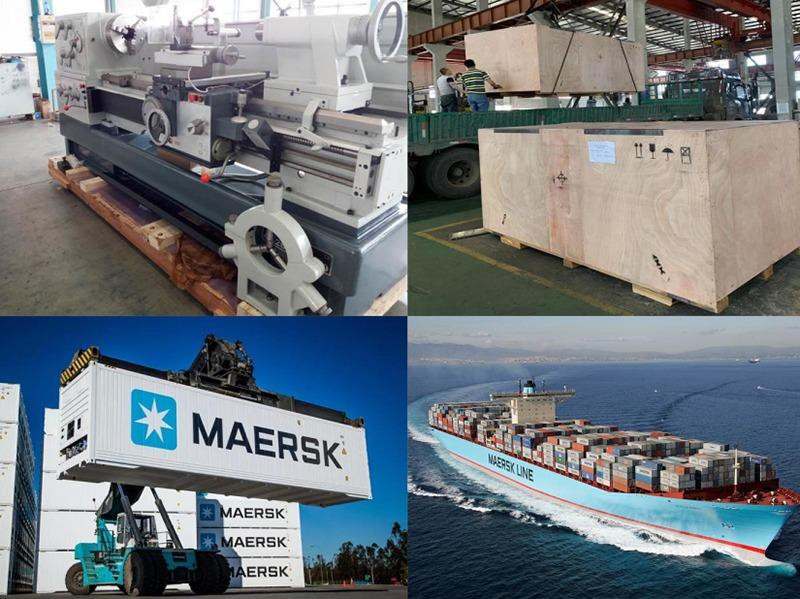

Package and Shipping
Why choose us
1.Our mission
Our machine tools can help you make your parts more perfect and win more customers.
2.Focusing on
We only focusing on machine tools before and after establishing.
What we offer is a kind of trust.
3.Professional teams
We have a professional R&D team, overseas sales team, documentary team, lorry team, customs clearance team, team for shipping, aftersales team and professional business partner we can rely on.
4.Stipulations
Strict stipulations and systems of rewards and penalties.
5.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
6.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
