A Step-by-Step Guide To Operating A Vertical Machining Center

Views: 0     Author: Site Editor     Publish Time: 2025-06-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

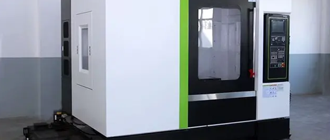

In today’s precision-driven manufacturing environment, understanding how to operate a Vertical Machining Center (VMC) efficiently is crucial. Whether you're producing aerospace components, automotive parts, or high-precision molds, the correct operation of a VMC directly impacts machining quality, productivity, and overall equipment longevity. Mastering each step—from setup to execution—ensures consistent results, minimizes downtime, and maximizes return on investment.


Step 1: Preparing the Machine

Before machining begins, thorough preparation is essential to ensure safe and accurate operation.

Powering On and System Checks

Start by switching on the main power supply and initiating the VMC’s CNC system. Most machines will run self-diagnostic checks upon startup. Verify that all systems—such as the coolant pump, lubrication, and axis motors—are functioning properly. Ensure emergency stop buttons are released and that the machine is in “Home” or “Reference” mode.

Loading and Verifying Tooling and Fixtures

Next, install the appropriate tools into the automatic tool changer (ATC) or spindle. Each tool should be measured and entered into the machine’s tool offset table with the correct length and diameter. Secure the workpiece using precision fixtures or vises, and ensure alignment using edge finders or probing systems. Incorrect setup at this stage can lead to part failure, scrap, or machine damage.


Step 2: Loading the CNC Program

Once the Vertical Machining Center is properly powered on and the tooling is set, the next critical step is to load the CNC program that will drive the machining process.

Transferring the Machining Program

Most modern Vertical Machining Centers support multiple methods for loading CNC programs, including USB flash drives, local area networks (LAN), or direct DNC communication from a programming computer. Operators should ensure that the program file—typically written in G-code—is transferred to the machine’s control unit and stored in the correct directory.

Before running any program, double-check that it matches the part drawing, material type, and tooling setup. Loading an incorrect file can cause collisions or out-of-tolerance parts.

Verifying and Editing Tool Paths

After the program is loaded, preview the tool paths using the CNC controller’s simulation or graphical interface. This dry run allows you to spot errors such as over-travel, incorrect Z-depths, or missing operations. If the tool path needs adjustment—perhaps due to a last-minute design change or different fixture height—you can make minor edits directly in the controller or reload a revised version from the CAM software.

This verification step is vital for avoiding machine crashes, tool breakage, or damaged workpieces. An accurate and validated program ensures your Vertical Machining Center performs flawlessly from the first part to the last.


Step 3: Setting Workpiece and Tool Offsets

Accurate machining in a Vertical Machining Center depends heavily on how precisely you define both the workpiece location and the tool geometry. Setting work and tool offsets is one of the most crucial steps to ensure dimensional accuracy, surface finish, and machine safety.

Clamping the Workpiece Securely

Start by clamping the raw material or part blank onto the VMC’s worktable using appropriate fixtures, vises, or custom jigs. Proper fixturing ensures the workpiece remains rigid and stationary throughout the machining cycle. Any vibration or shifting during cutting can compromise part quality or damage the tool.

Setting Work Coordinate Zero Points

Once the workpiece is secure, define the work coordinate system. This involves setting the origin (zero point) for the X, Y, and Z axes relative to the workpiece. You can do this manually using edge finders, dial indicators, or more efficiently, with the machine’s built-in touch probe system. Advanced Vertical Machining Centers often include probing systems that automatically locate part edges and surfaces, significantly reducing setup time and error risk.

Tool Length and Diameter Offset Calibration

Each tool used in the program must be calibrated for its length and, if needed, diameter. Tool length offsets ensure the spindle knows exactly how far each tool extends from the tool holder, allowing it to reach the correct cutting depth. These measurements can be input manually or automatically via a tool presetter or built-in tool measurement probe.

Accurate tool offset calibration is essential to prevent crashes, ensure proper machining depths, and maintain tight tolerances. Neglecting this step can result in part rejections or machine damage.


Step 4: Dry Run and Simulation

Before beginning actual cutting operations, a dry run—also known as an "air cut" or program simulation—is essential for verifying program accuracy and machine safety. Most modern Vertical Machining Centers offer simulation functions that allow operators to preview the program's path and detect any possible issues before tool engagement.

Running the Program Without Cutting

In this phase, the machine executes the entire CNC program without engaging the workpiece. The tools move along programmed paths above the part surface. This is done with the spindle turned off and the Z-axis raised to avoid any unintentional contact. The goal is to observe machine behavior and ensure the programmed toolpaths are logically and spatially accurate.

Checking for Potential Collisions or Errors

During the dry run, closely monitor for any signs of programming mistakes such as:

  • Tools moving beyond machine limits

  • Unexpected rapid movements

  • Conflicts between tool changes and workpiece positioning

  • Risk of collision between the spindle head, fixtures, or tool and the part

Catching these issues during a simulation can prevent costly machine crashes, tool breakage, and damage to the workpiece.

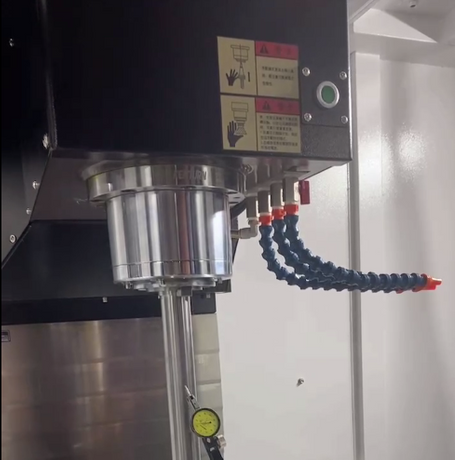

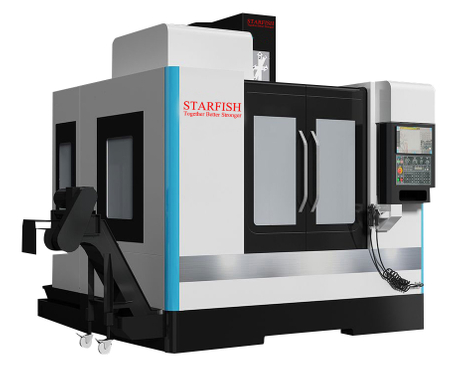

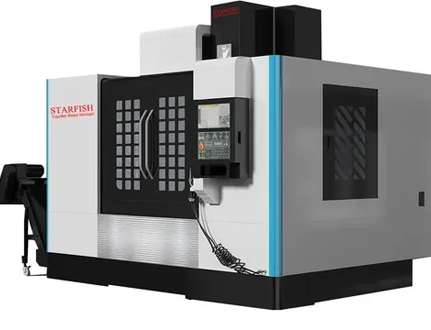

Vertical Machining Center

Step 5: Starting the Machining Process

After verifying the program through a successful dry run, you're ready to begin actual machining. This stage marks the transition from setup to production.

Initiating Spindle and Coolant Systems

Start by powering up the spindle at the programmed RPM (rotations per minute) for the first tool and activate the appropriate coolant system. Coolant helps maintain tool life, improves surface finish, and prevents overheating of both the tool and the part.

Ensure that both the tool and coolant delivery system are functioning as intended before starting the cut. Many Vertical Machining Centers support programmable coolant settings that can be tailored per tool or per operation.

Monitoring Machining Progress

As the machine starts cutting, monitor the entire process closely:

  • Check for abnormal sounds or vibrations that may indicate tool wear or material issues

  • Watch chip formation and evacuation to ensure efficient cutting

  • Be prepared to pause or stop the machine if anything appears off

Adjusting Feed and Speed If Needed

Even with a well-written program, real-world cutting conditions may require on-the-fly adjustments. Use the override controls on the Vertical Machining Center’s control panel to increase or decrease feed rates and spindle speeds. This allows the operator to optimize machining performance based on material behavior and tool response.

Maintaining a vigilant approach during the first production cycle ensures the part is machined to specifications and lays the foundation for consistent results in subsequent runs.


Step 6: Quality Control During Operation

Maintaining part quality during machining is just as critical as initial setup. Vertical Machining Centers often support in-process measurement tools that allow operators to monitor accuracy without removing the part from the machine.

Using In-Process Measurement Tools If Available

Advanced Vertical Machining Centers may be equipped with touch probes, laser measurement systems, or other sensors that can automatically check key dimensions during machining. These tools help ensure real-time feedback and allow for immediate correction if tolerances deviate.

For shops without built-in metrology systems, manual measurements using micrometers, calipers, or dial indicators can still be performed between tool changes or at specific checkpoints in the program.

Recognizing and Troubleshooting Common Issues

Operators should remain alert for signs of:

  • Tool wear or breakage (abnormal sounds, poor surface finish)

  • Material inconsistencies (hard spots, excessive burrs)

  • Vibration or chatter

  • Coolant delivery failure

Timely identification and correction prevent defective parts and reduce rework, thus protecting both productivity and part quality.


Step 7: Finishing and Machine Shutdown

After completing the machining cycle, proper shutdown procedures ensure the machine remains in good condition and is ready for the next job.

Cleaning the Machine and Work Area

Once the part is removed and inspected, clean the machine interior thoroughly:

  • Remove metal chips from the worktable, enclosure, and tool magazine

  • Wipe down fixtures and work-holding devices

  • Use compressed air cautiously to avoid forcing chips into sensitive areas

Maintaining a clean environment helps prevent mechanical problems and contributes to safer operation.

Performing Lubrication and Maintenance Checks

Many Vertical Machining Centers include automatic lubrication systems, but it's still essential to check:

  • Oil levels in lubrication and hydraulic systems

  • Coolant levels and quality

  • Air pressure if pneumatic systems are used

Spotting leaks, unusual noises, or heat can help detect maintenance needs early.

Properly Shutting Down the System

To safely shut down the VMC:

  • Return all axes to the home position

  • Cancel any active M-codes or offsets

  • Power down the control system following the manufacturer’s instructions

  • Turn off the main power and air supply if needed

This structured shutdown process ensures machine safety and longevity.


Conclusion: Why Step-by-Step Operation Matters

Operating a Vertical Machining Center with precision and care is essential for maintaining productivity, minimizing errors, and achieving consistent high-quality results. From initial setup to finishing and maintenance, following a structured approach ensures that your machine runs safely and efficiently.

As manufacturing technology advances, understanding and correctly implementing every step of the VMC operation process becomes even more valuable. For businesses looking to enhance machining capabilities, investing in a high-performance Vertical Machining Center—and using it properly—is a smart and future-ready move.

To explore reliable, advanced VMCs, consider contacting Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd.. Their machines are engineered for precision, durability, and ease of use—ideal for modern workshops aiming for excellence. Visit their official website to learn more or get in touch for tailored solutions.
