Swing over bed: 360mm, 400mm, 460mm, 500mm, 560mm Spindle Bore: 65mm, 80mm(D6)
| Quantity: | |
|---|---|

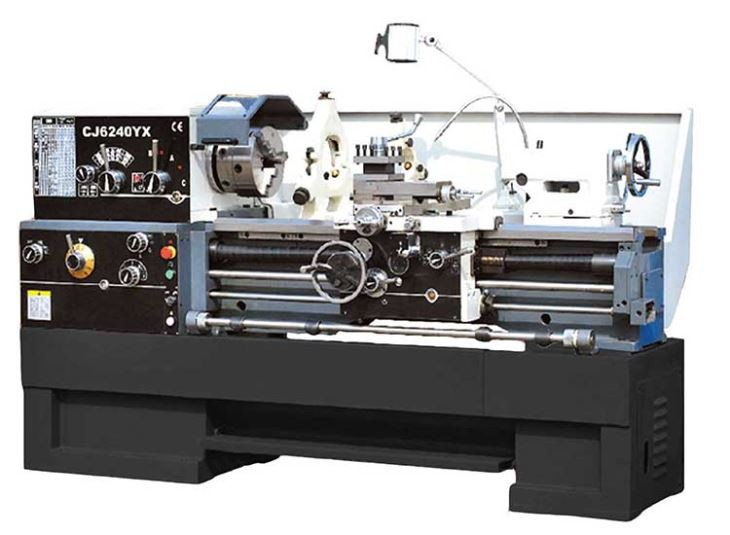

Feature of CJ-YX Metal Lathe 2-AXIS DRO
Adopting whole structure, the guide surface hardened by superfrequencies
All cast iron construction provides solid foundation for vibration absorption and rigidity
Be good at rigidity and accuracy
Hardened & precision ground bedways for long lasting accuracy
What we offer is a kind of trust.
Products Specification of Metal Lathe 2-AXIS DRO
Model NO. | CJ6236YX | CJ6240YX | CJ6246YX | CJ6250YX | CJ6256YX |
Swing over bed | Φ360mm(14’’) | Φ400mm(16’’) | Φ460mm(18’’) | Φ500mm(20’’) | Φ560mm(22’’) |
Swing over carriage | Φ220mm(8’’) | Φ250mm(10’’) | Φ330mm(12’’) | Φ340mm(13’’) | Φ390mm(15’’) |
Max. Swing in gap | Φ600mm(24’’) | Φ660mm(26’’) | Φ700mm(28’’) | Φ740mm(29’’) | Φ780mm(31’’) |
Max. Length of workpiece | 1000/1500/2000mm | ||||
Effective gap length | 200mm | ||||
Bed width | 335mm | ||||
Spindle bore | Φ80mm(D8) | ||||
Spindle taper of bore | M.T. NO.7 | ||||
Spindle number speed | 12 steps | ||||
Spindle range of speed | 42-1800rpm | ||||
Threads metric pitches | 0.5-20mm/24 | ||||
Threads imperial pitches | 72-1 5/8 TPI/6 | ||||
Thread diametral pitches | 96-3 1/4 DP/45 | ||||
Threads module pitches | 0.25-10mm/20 | ||||
Range of feeds longitudinal | 0.004-2.46mm | ||||
Range of feeds cross | 0.02mm-1.23mm | ||||
External diameter of the tailstock quill | Φ75mm | ||||
Max. Traverse of the tailstock quill | 130 | ||||
Quill taper | NO. 5 (morse) | ||||
Max. Travel of compound rest | 100mm | ||||
Max. Cross slide travel | 280mm | ||||
Max. Size of tool shank(WxH) | 25x25mm | ||||
Power of main motor | 5.5kW | ||||
Over all size(LxWxH) | (2510/2990/3490)x1150x1800mm | ||||
Net weight: | 2355/2510 2485/2630 2635/2835/3055 2800/3000/3205kg | ||||
Production details of Metal Lathe 2-AXIS DRO

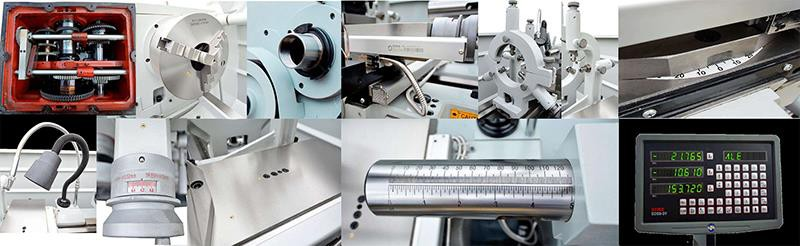

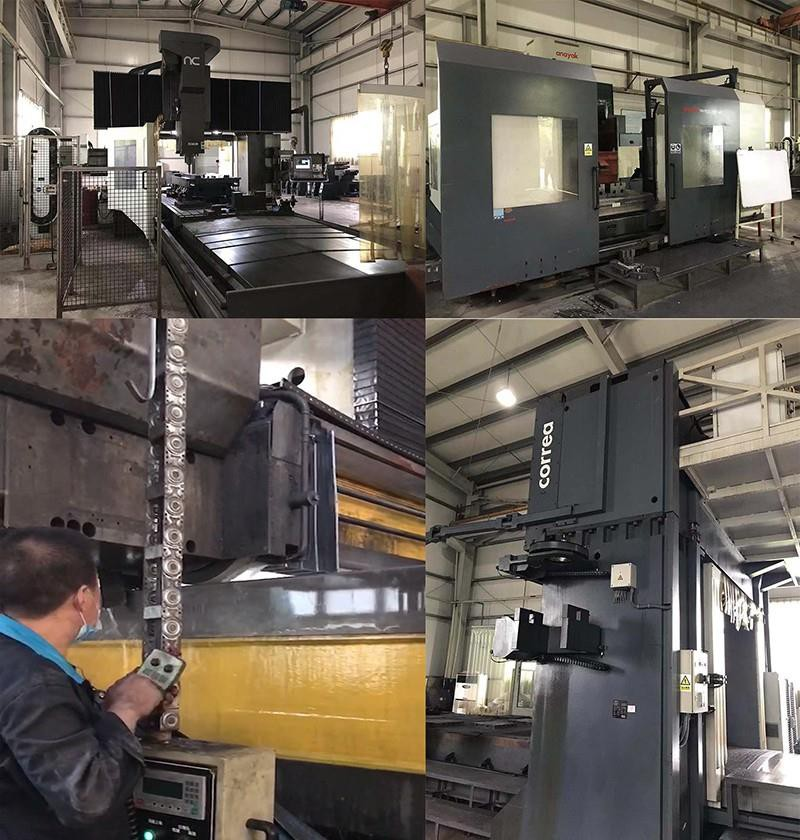

Manufacturing facilities of Metal Lathe 2-AXIS DRO

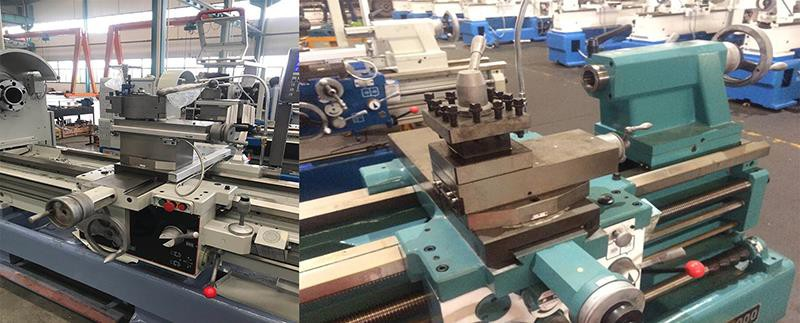

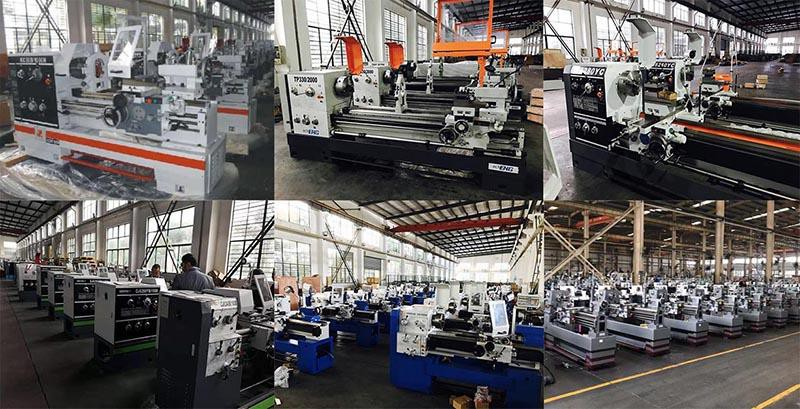

Glance of workshop of Metal Lathe 2-AXIS DRO

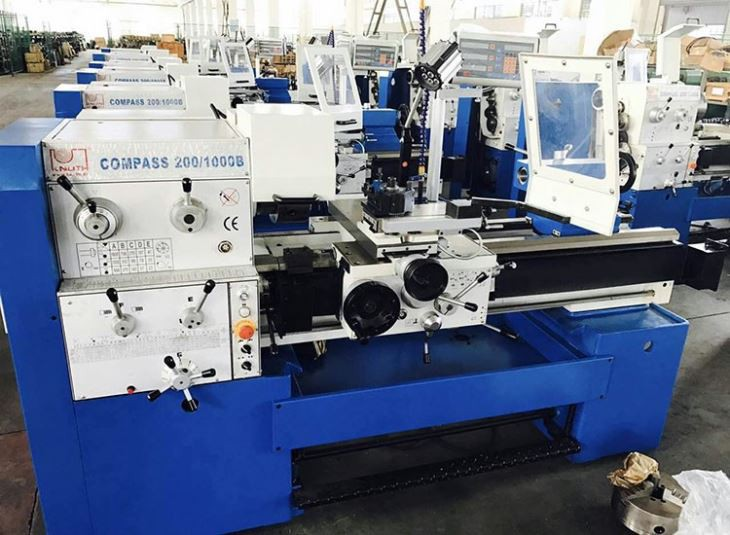

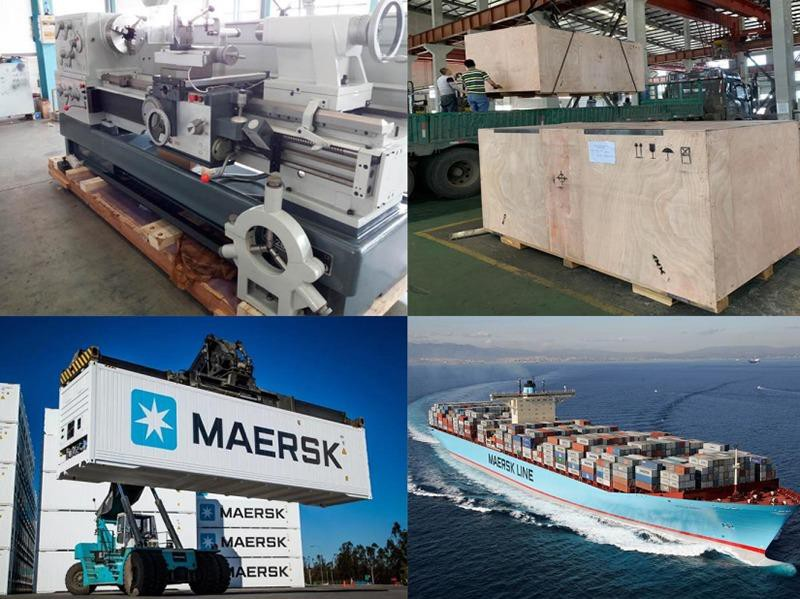

Package and Shipping of Metal Lathe 2-AXIS DRO
