Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

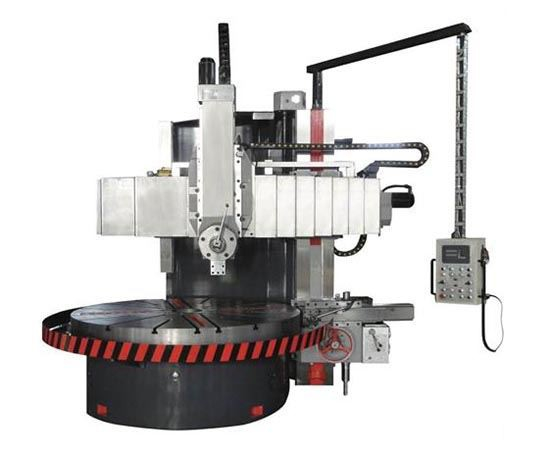

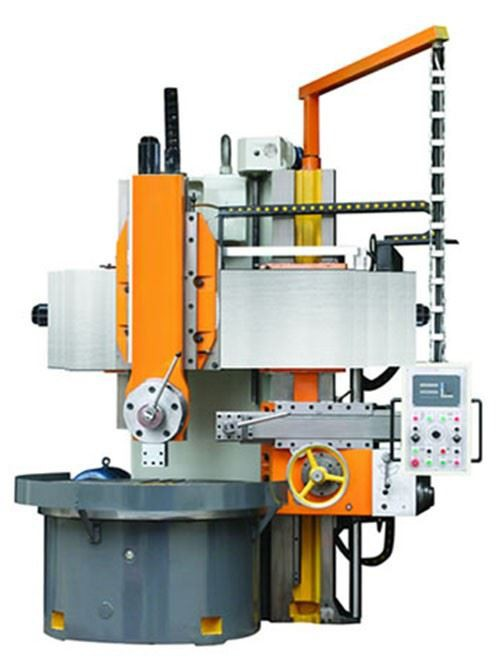

Feature of VTL Lathe Machine
Based on the concept of building the automatic vertical lathe, our company made a significant improvement of the original CA51 series. The worktable structure of CNC lathe and PLC controlling technology were used for this series.
1. Preloaded rolling-guideway worktable.
- High rotation-precision spindle.
- High loading capacity (up to 10t or OEM).
- Free maintenance. Needed spray lubrication for the rolling bearing structure only.
- Low friction, low electricity consumption.
2. Speed-changing is controlled by OMRON PLC instead of a turning valve.
3. All guide faces are coated imported guideway soft belts, to lower the friction.
4. Electric components are of SCHNEIDER or SIEMENS.
5. A wide range of options available: square ram, 5-position tool turret, square ram of lengthened travel range, model for machining motor housing specially, DRO (Digital readout), etc.
Products Specification of VTL Lathe Machine
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working

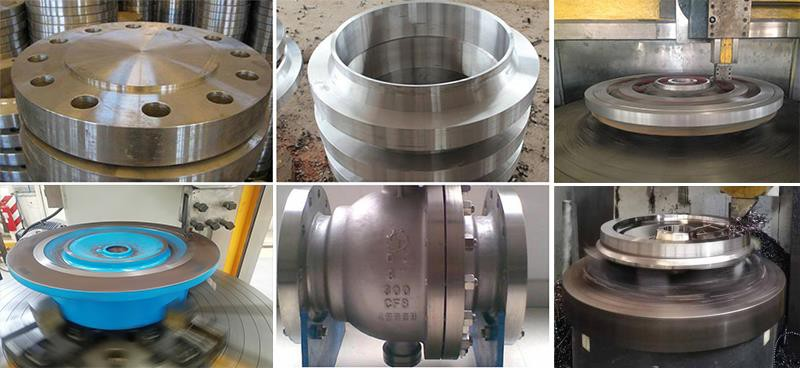

Work piece by VTL Lathe Machine
Customers: SIEMENS, ITT
Serious and professional testing
Package and Shipping
Manufacturing facilities...
