Application of Mini Air Sealed Bag Film Blowing Machines The mini air sealed bag film blowing machine mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao,...
| Quantity: | |
|---|---|

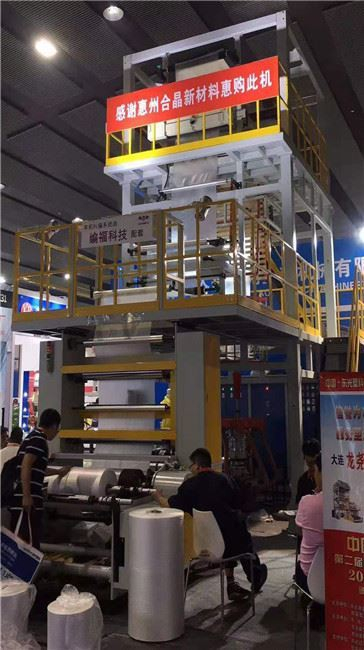

Application of Blown Film Lines
This film production lines mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao, IBM and other e-commerce and express industries.

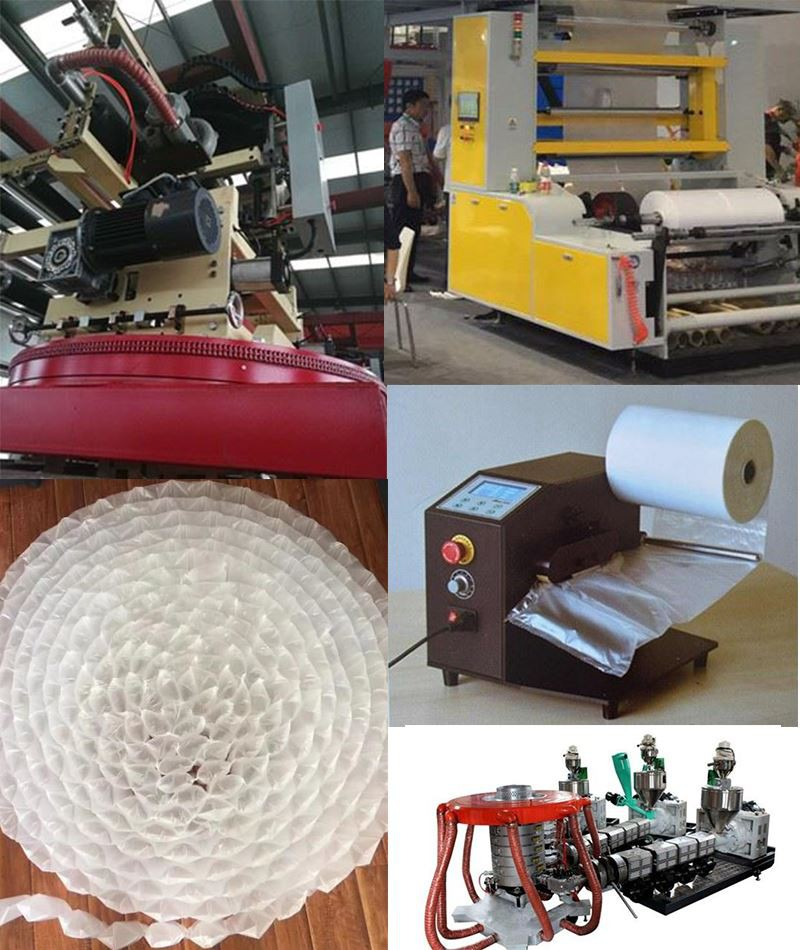

This unit is mainly equipped with 3 sets extruders, equipped with haul-off oscillating rotary tower system, EPC system, Siemens PLC, auto winder and the hot slitting and sealing system,also can equipped with the one color or two color printing machine online 1 or 2 color printing,so the efficiency is improved, the output is increased.
In the extrusion of plastics, the raw compound material is commonly in the form of hurdles (small beads, often called resin) that are gravity fed from a top mounted hopper into the barrel of the extruder. Additives such as colorants and UV inhibitors (in either liquid or pellet form) are often used and can be mixed into the resin prior to arriving at the hopper. The extruder technology though it differs in that it is usually a continuous process.
While pultrusion can offer many similar profiles in continuous lengths, usually with added reinforcing, this is achieved by pulling the finished product out of a die instead of extruding the polymer melt through a die.
The material enters through the feed throat (an opening near the rear of the barrel) and comes into contact with the screw. The rotating screw (normally turning at e.g 120 rpm) forces the plastic beads forward into the heated barrel. The desired extrusion temperature is rarely equal to the set temperature of the barrel due to viscous heating and other effects. In most processes, a heating profile is set for the barrel in which three or more independent PID-controlled heater zones gradually increase the temperature of the barrel from the rear (where the plastic enters) to the front. This allows the plastic beads to melt gradually as they are pushed through the barrel and lowers the risk of overheating which may cause degradation in the polymer.
Parameter of Blown Film Lines
Type of the machine | SJGM-Z50×30×2+55×30×1-1300 | SJGM-Z45×30×3-1100 | SJGM-Z55×30×2+ 50×30×1-1300 |
max film width | 800mm/1000mm | 600mm | 800mm/1000mm |
thickness of the film | 0.013mm-0.03mm | 0.013mm-0.03mm | 0.013mm-0.03mm |
max output | 50kg/h - 80kg/h - 50kg/h | 50kg/h-50kg/h-50kg/h | 80kg/h - 50kg/h - 80kg/h |
Extrusion Unit | |||
main motor | 22kw / 30kw / 22kw | 15kw / 18.5kw / 15kw | 30kw / 22kw / 30kw |
screw diameter | Φ50mm-Φ55mm-Φ50mm | Φ45mm-Φ45mm-Φ45mm | Φ55mm-Φ50mm-Φ55mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 | 0.24kw×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer |
Die Unit | |||
type of the diehead | stationary die | stationary die | stationary die |
die diameter | HDPE Φ80mm / Φ120mm | HDPE Φ80mm | HDPE Φ140mm |
air blower fan | 5.5kw | 4kw | 5.5kw |
Haul-Off Unit | |||
type of the tower | oscillating tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×1300mm | Φ210×1100mm | Φ210×1300mm |
haul-off motor | 1.5kw | 1.5kw | Φ213×1100mm |
height of the machine | 7m | 6.2m | 8m |
Winder Unit | |||
type of winder | Auto single winder | Auto single winder | Auto single winder |
winder roller dia.& width | Φ300×1300mm | Φ300×1100mm | Φ300×1300mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm |
Other Parts | |||
hot slitting and sealing knife | |||
EPC | EPC auto edge position control system | ||
Tension control system | Auto | ||
Principle:
This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electronic control system, casting die, two-roll calendering, etc.
Its working principle is: the material flows from the hopper into the plasticizing and extruding state of the extrusion device into a casting state, and then comes out of the host through the die, and is calendered by a two-roll calender
Application range:
Applicable materials include TPU laminating, PE and other thermoplastic casting grade materials
Development of new material formula
Material casting performance test
Optimization of casting production process parameters
Product performance:
Each roller is independently driven by a motor, and the roller speed is controlled accurately
Hard chrome plated mirror roller with 304 stainless steel roller core, reliable quality and high surface finish
The aluminum alloy flattening roller is anodized on the surface to ensure a higher flatness of the film
Combine with a single screw extruder and a casting die to complete the casting process of the material
Realize the integrated functions of casting, trimming and winding of cast film
Adjust the distance between the casting roll and the casting die through the lifting mechanism to realize the casting process with different air intervals
Optional independent touch screen control components to achieve independent control of the unit
Mold temperature controller/water chiller can be selected to accurately control the temperature of the casting roll
Optional waste collection device, convenient for trimming and waste collection, improving the quality of winding

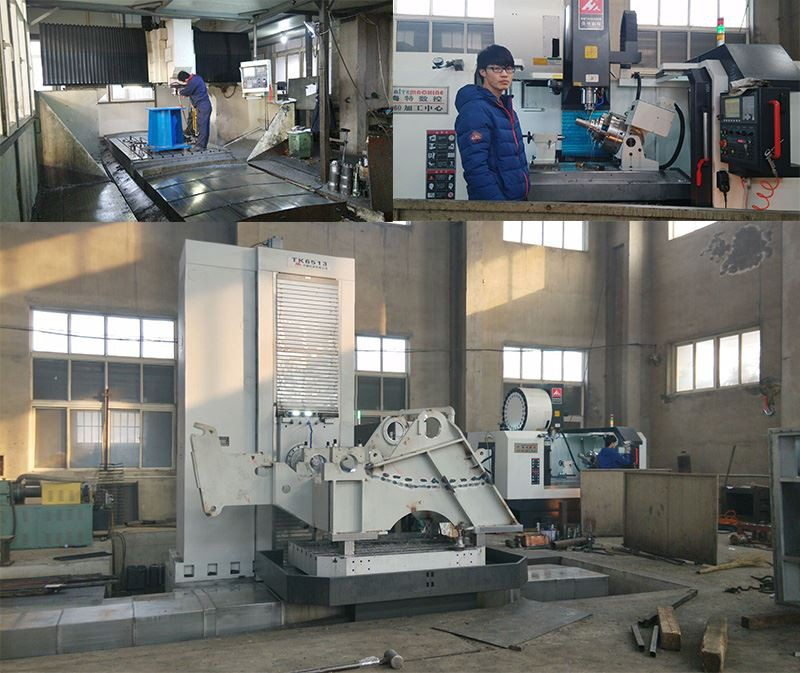

Main machining facilities

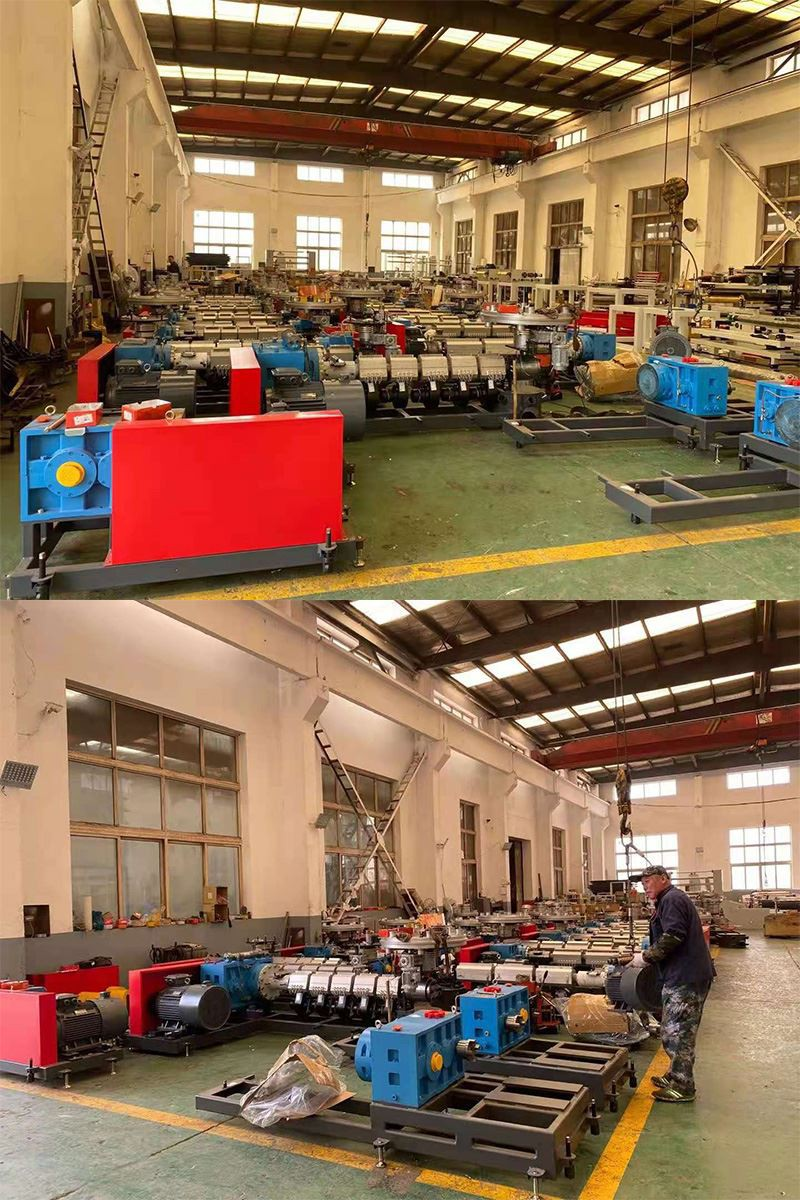

Workshop

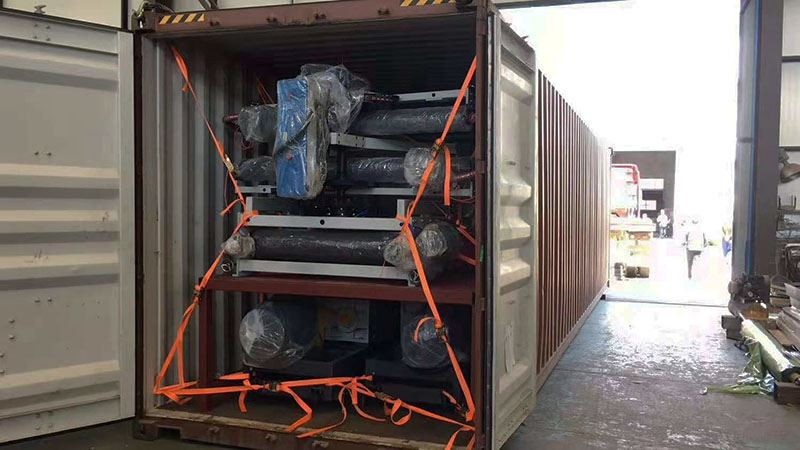

Delivery
