As industries such as aerospace, energy, and heavy equipment manufacturing continue to evolve, the demand for precision machining of increasingly complex components has grown significantly. Modern parts often feature intricate geometries, tight tolerances, and challenging materials that push the limits of traditional machining methods.
These components may include turbine casings, large bearing housings, impellers, and precision sealing rings—all requiring not just accuracy, but also consistency and efficiency in high-volume or large-format production. Meeting these demands calls for advanced machining solutions capable of handling size, complexity, and material hardness with minimal error margins.
This is where CNC vertical lathes become essential. With their robust structure, vertical orientation, and integration of intelligent control systems, CNC vertical lathes provide manufacturers with the ideal platform for producing complex components with high precision and repeatability. Their ability to support heavy workpieces and execute multi-axis operations makes them a vital asset in modern, high-tech manufacturing environments.
CNC vertical lathes are precision machining tools specifically designed to handle large, heavy, and complex cylindrical components. Unlike traditional horizontal lathes, vertical lathes position the workpiece upright, allowing gravity to assist in stabilizing heavy parts during machining. This configuration significantly enhances rigidity, accuracy, and ease of setup—especially for parts with large diameters.
These machines are typically classified into two main types based on their structural design: single-column and double-column vertical lathes.

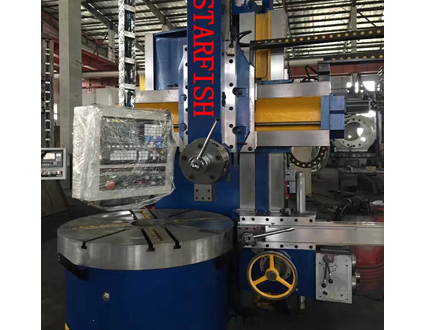

Single-column vertical lathes are generally more compact and cost-effective, ideal for medium-sized components or applications where space is limited.
Double-column vertical lathes, on the other hand, provide higher rigidity and better support for ultra-large and ultra-heavy parts, making them suitable for industries like aerospace, wind power, and large-scale energy equipment manufacturing.
The vertical layout of these lathes offers a significant advantage when machining complex rotating parts, such as turbine rings or bearing housings, as it enables better control of concentricity and overall geometry. Combined with CNC technology and optional multi-axis configurations, CNC vertical lathes offer unmatched performance in producing precision components that require high structural integrity and dimensional accuracy.
CNC vertical lathes offer several critical advantages that make them ideal for machining complex components across demanding industries such as aerospace, energy, and heavy equipment manufacturing.
High-Rigidity Structure for Heavy-Duty Machining
One of the standout features of CNC vertical lathes is their exceptionally rigid machine design. The vertical configuration allows for a more compact and robust frame, capable of supporting heavy workpieces without deformation. This structural stability ensures consistent performance during high-load cutting operations, enabling precise machining even when working with tough materials like titanium alloys or stainless steel.
Multi-Axis Capabilities for Complex Surfaces
Advanced CNC vertical lathes often come equipped with multi-axis control—such as C-axis and optional Y-axis functionalities—which allows for the machining of intricate contours, asymmetric shapes, and complex surface geometries. This flexibility is especially valuable when dealing with components like impellers, turbine discs, or large flanges that require multi-angle cutting in a single setup.
Automatic Tool Changers and In-Process Measurement
To further enhance productivity and precision, many vertical lathes integrate automatic tool changers (ATC) and in-process measurement systems. These features reduce manual intervention, minimize setup time, and allow real-time monitoring and correction of machining parameters. As a result, manufacturers can achieve tighter tolerances, reduce rework, and ensure uniform quality across production batches.
By combining strength, versatility, and automation, CNC vertical lathes play a vital role in overcoming the challenges associated with complex component machining, delivering both precision and efficiency in every cycle.
In today’s high-performance industries, manufacturers are increasingly required to process difficult-to-machine materials such as titanium alloys, nickel-based superalloys, and hardened stainless steel. These materials are essential for applications that demand high strength, corrosion resistance, and temperature tolerance—particularly in aerospace, energy, and defense sectors. However, their physical properties also make them challenging to cut with conventional methods.
CNC vertical lathes are uniquely equipped to handle such materials with efficiency and precision. Their high-torque spindles and rigid machine frames allow for aggressive cutting parameters without compromising surface quality or dimensional accuracy. The vertical configuration also helps reduce vibration and tool deflection, which are common issues when working with hard metals.
Moreover, these machines excel in the single-setup machining of complex components, such as:
Large bearing housings
Sealing rings with intricate grooves
Turbine casings and impeller rings
The ability to clamp large, heavy, and awkwardly shaped parts vertically provides superior control over geometries that require high concentricity and fine tolerances. Multi-axis capability enables the machining of complex profiles and surfaces without the need for repositioning or secondary operations.
By integrating powerful drive systems, advanced controls, and specialized tooling, CNC vertical lathes offer a reliable solution for producing high-quality parts from the toughest materials—making them indispensable for complex and critical component manufacturing.
The practical benefits of CNC vertical lathes are best illustrated through real-world applications across industries where component complexity and precision are non-negotiable.
Aerospace Engine Components
In the aerospace sector, components such as engine casings, bearing seats, and turbine rings require extremely tight tolerances and high concentricity. CNC vertical lathes enable the machining of these critical parts in fewer setups, reducing error accumulation and improving part quality. In one case, a manufacturer reported a 30% increase in machining consistency for large turbine ring components after switching from a horizontal lathe to a vertical model with multi-axis capabilities.
Energy Industry Sealing Rings
Large-diameter sealing rings used in power generation equipment—especially in nuclear and thermal plants—demand exceptional flatness and roundness. Using CNC vertical lathes, these parts can be processed in a single clamping, significantly reducing the number of machining steps and minimizing geometric deviations.
Wind Turbine Shaft-End Components
For wind energy manufacturers, main shaft end flanges and bearing housings often exceed 1,500 mm in diameter. These parts benefit from the vertical lathe’s ability to handle heavy workpieces safely and accurately. Customers have reported improved throughput and lower defect rates thanks to better stability and reduced manual repositioning.
Across all these examples, companies using CNC vertical lathes experienced:
Fewer setups and reduced cycle times
Improved yield and part uniformity
Enhanced production throughput and cost savings
These results underscore the essential role that CNC vertical lathes play in manufacturing efficiency and quality assurance for complex, high-value components.
In today’s competitive manufacturing landscape, where component designs are becoming more intricate and material requirements more demanding, CNC vertical lathes have emerged as an essential solution. Their unique structural advantages, multi-axis capabilities, and high rigidity make them irreplaceable when machining complex parts that require both precision and efficiency.
From aerospace engine rings to wind turbine hubs and large sealing components in the energy sector, CNC vertical lathes consistently deliver superior results in accuracy, surface finish, and overall productivity. By minimizing setups, integrating automated functions, and accommodating difficult materials, these machines directly address the core challenges of modern manufacturing.
For companies aiming to scale their production capacity and meet stricter quality standards, investing in advanced CNC vertical lathes is a strategic move. Partnering with experienced machine tool providers—such as Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd.—ensures access to tailored solutions, technical support, and long-term value.
