Introduction

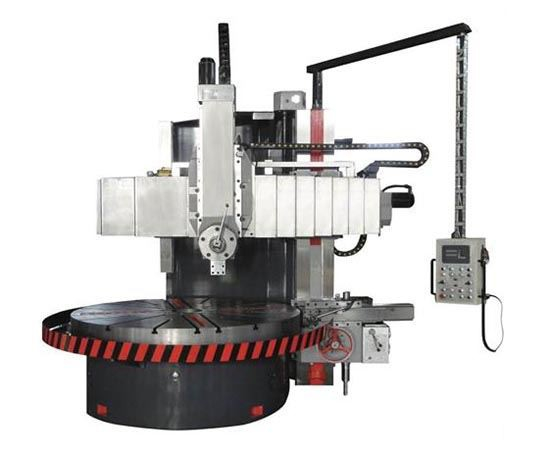

1. The are especially suited for machining engine and turbine components, which are primarily used in the turning industry as well as for alternative and classical power generation. The vertical lathes are characterized by a complete cast design, high-precision static and dynamic positioning as well as long-lasting reliability.
2. Gear made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45，gear grinder，Precision can reach level 6.Thereby reduce the vibration and noise of Manual Turret Lathe, improved efficiency and reliability.
3. The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the machine. The contact surface of the beam and the column rail is adhered with a PTFE wear-resistant rail soft belt, which has a small friction coefficient and greatly prolongs the service life of the Manual Turret Lathe.
Products Specification
Parameter can be customized
TheManual Turret Lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
The key parts of Manua Turret Lathe which is used for 20 years, they match very well.

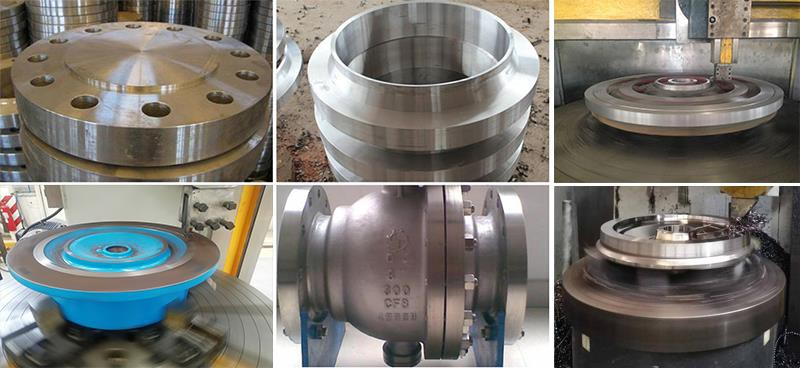

Work piece
We use our vertical lathe to machine train wheel.
Customers
Customer include ITT, Siemens
Serious and professional testing
Package and Shipping
Training
1. Training in Manufacturer workshops (for free)
2. Training in buyers company (for charge,normally two or three days needed )
• 1st day: inspection cable connection,the finished foundation is qualified guide customer know each components.
name and functions as well
• 2nd day: demo and teach user do calibration and use customer
workpieces to machine
• 3rd day: review all operation step and learn each parts maintenance method.
Manufacturing facilities
