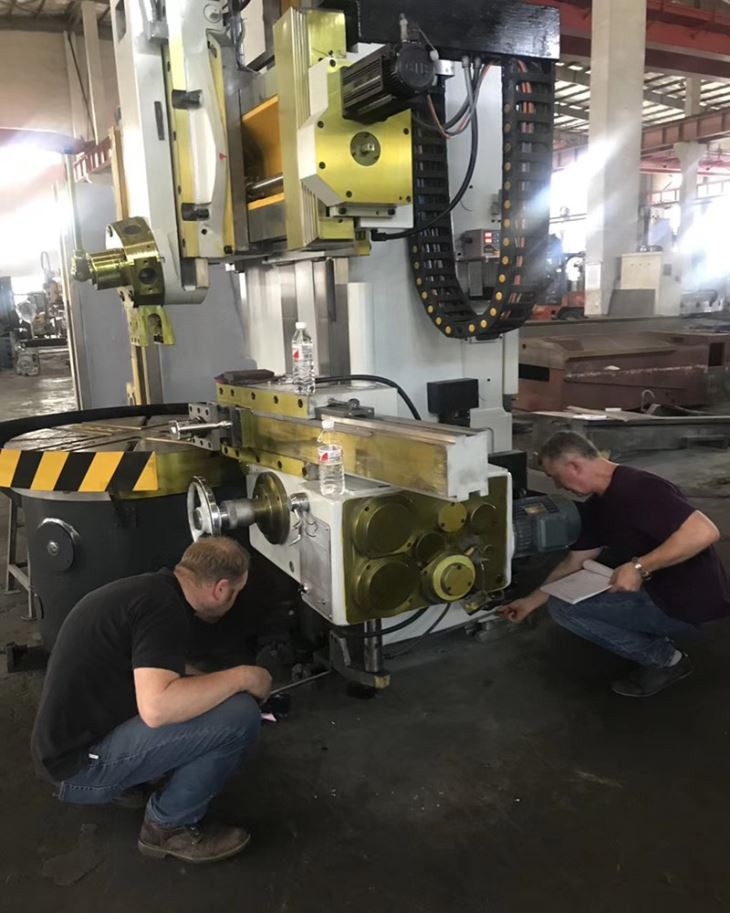

Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Introduction
1. The Single Column Vertical Turret Lathe Machine strong technical force, the advanced production equipment, and the perfect administration system. Our productions have good quality, advanced technology.These single & double column lathe and NC vertical lathe have gained perfect praise by consumers since put into market.
2. Based on excellent processing equipments, strong technical force, perfect inspection way, and inpectable management system. Baili Machine has passed National ISO9001:2008 Quality Management System Certification.
3. Vertical Turret Lathe Machine is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function and grinding system
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | steplesss | steplesss | steplesss | steplesss | steplesss |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Feature:
1. The table of vertical Turret Lathe Machine adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.
2. The column cross rai l adopt high strengthness and high wear-resistance grey cast iron.
Firction pairs of guideway in horizontal and vertical diretion adopt wear-resistance grey cast iron.
3. Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.
Black chromium plane of new type for batton siation.
4. The rail head is designed with leadscrew for horizontal and vertical transmission.
5. Pentagonal turret pinion plate index positioning with high strenthness and rigidity.
6. a Lubrication of cross is supplied with oil by hand pump.
