Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Introduction of Single Column Vertical Turning Lathe Machine
1 CK Single Column Vertical Turning Lathe Machine is an advanced equipment with high performance, wide working processing scope, and high production efficiency. They are used for mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face, grooving, arc surface, and all kinds of curvilinear surfaces, thread, etc.
2. The base, worktable. lathe body and beam are made of ferrosteel with high strength and high abrasive resistance, tempering treatment, eliminates internal stress and deformation.
3. A well-known Guideway Grinder guarantees a smooth and very straight guideway.
4. CNC system and servo motor is SIEMENS, FUNAC
5. The hydraulic device of the static pressure guideway oil of the worktable and the lubricating oil of the transmission parts is equipped with an oil temperature control device to ensure a small oil temperature rise and thermal deformation of the worktable.
The worktable is equipped with an encoder to realize closed-loop control. Realize the feed rate per revolution, thread, and constant speed cutting and table indexing.
6. This machine is equipped with a floor-standing console, which is equipped with a FANUC operation panel and all operation keys of the machine. It can be operated according to the programming of the machining parts, and the required actions can also be manually operated.
7. In addition, it is equipped with a set of hand-held portable operation boxes, which contain commonly used operation keys of CNC tool post and hand pulse, so the operation of this machine is convenient and flexible.
Products Specification
The parameter can be customized
The Single Column Vertical Turning Lathe Machine can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

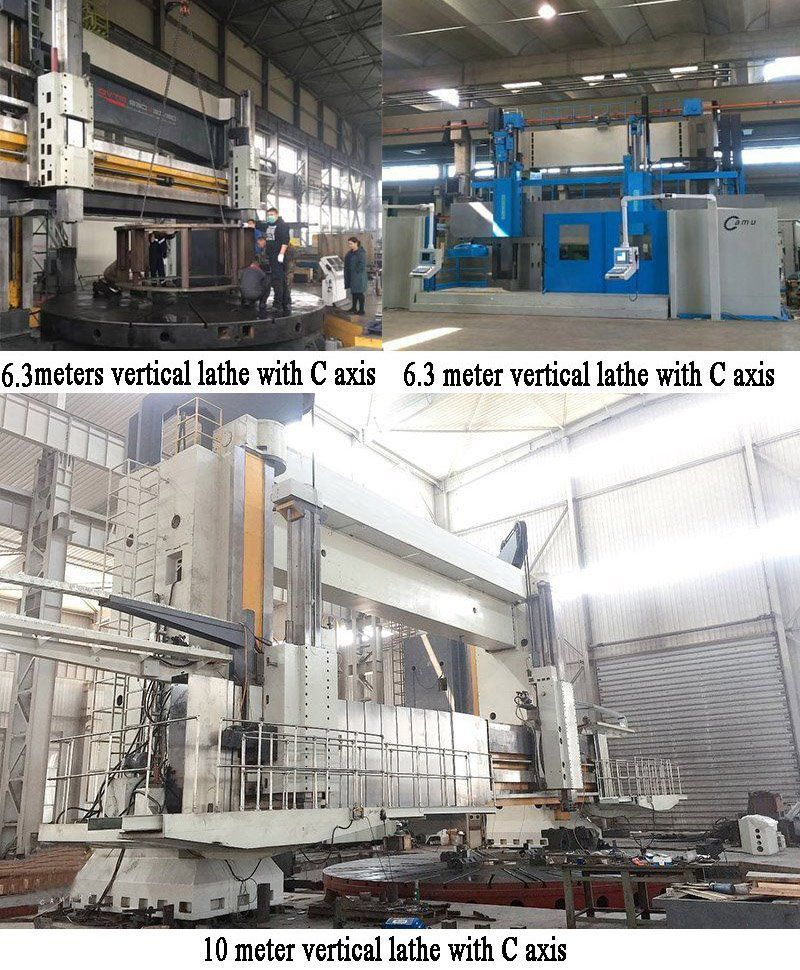

Product details
Work piece
Customers of CNC VTL Machine customers
Serious and professional Testing
Package and Shipping
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
