Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. CNC Vertical Metal Lathe Machine offer smooth running, superior speed control and maximum reliability in a cost effective solution.
2. CNC Vertical Metal Lathe Machine utilizes the latest technologies to ensure high performance and meet the ever increasing demand for greater productivity, considering at all time the need for versatility, easy maintenance, and economical production cost.
3. The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the machine.
4. The structure of whole working table is hot symmetrical, main gear shifting mechanism was fixed on the base of working table and the bed of lathe.
5. Ring shaped base guideway, the flatness of base guideway and table guideway is ensured by manual match scraping. To reduce the impact of table thermal deformation to machining accuracy, thermal symmetrical structure is adopted to achieve less thermal deformation and ensure stable table running.
6. Machine electrical control system consists of: CNC system, machine control, machine auxiliary part control, control cabinet and machine operation control. Whole machine adopts 3 phase concentrated power supply. Good PE protection earth line is required.
Products Specification
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

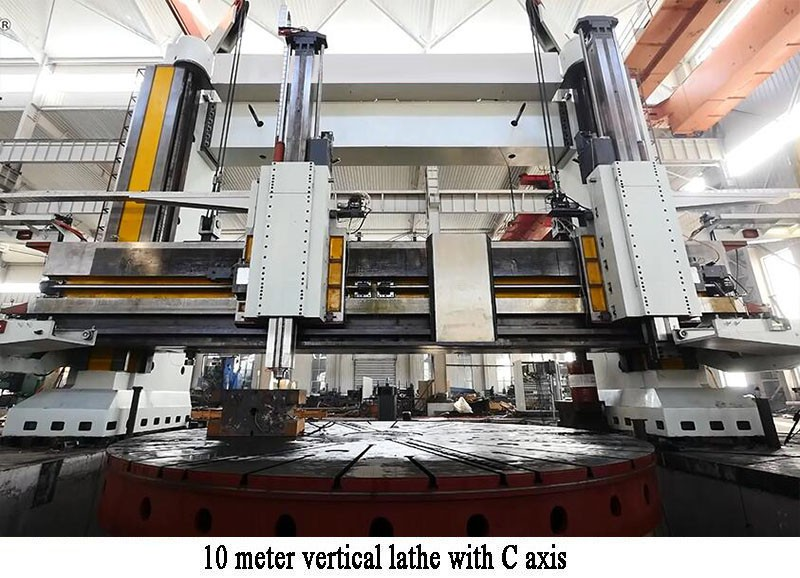

Details
Work piece
Customers
Serious and professional testing
Package and Shipping
Aftersales: very parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
