Swing over bed: 500mm, 660mm, 800mm Spindle Bore: 82mm
| Quantity: | |
|---|---|

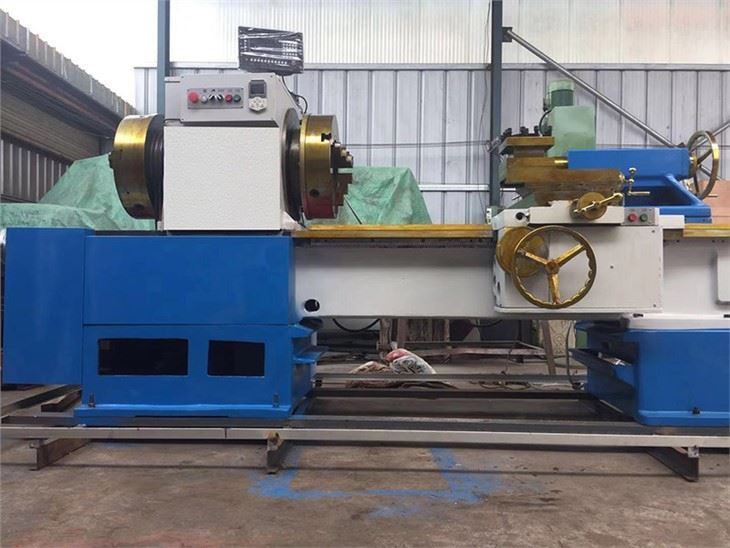

Introduction of Vehicle Drive Shaft Lathes
The Q1325G Vehicle Drive Shaft Lathescan help you repair Vehicle Drive Shaft Lathes perfectly.
Indpendent Spindle with no gear,
It cannot process thread just turning surface of drive shaft.
It is easier to maintenance, lubricate, operate.
Product Introduction of Vehicle Drive Shaft Lathes
1. High rigidity and low vibration base
2. Thermal treated cast bed
3. Hardened and precision ground bedways
4. Safety overload device
5. Wear-resistant phosphor bronze leadscrew nuts
6. High capacity coolant tank provides sufficient coolant output
Products Specification of Vehicle Drive Shaft Lathes
Item | Unit | Q1325G | Q1313G |
Swing over bed | mm | 630 | 500/400 |
Swing over carriage | mm | 350 | 330/230 |
Guideway width | mm | 550 | 360 |
Spindle bore | mm | 250 | 130 |
Max. OD of workpiece | mm | 245 | 125 |
Max. Turning length | mm | As request | As request |
Max. Working speed | mm | 15-450 | 15-450 |
Toolpost position | 4 position | 4 position | |
Guideway hardness | HRC52 | HRC52 | |
Main spindle power | kW | 7.5kW | 5.5kW |
Chuck O.D. | mm | 500 | 320 |
X/Z feeding | Manual feeding | Manual feeding | |
X travel | mm | 350 | 320/180 |
Z Travel | mm | 1000+ | 1000+ |

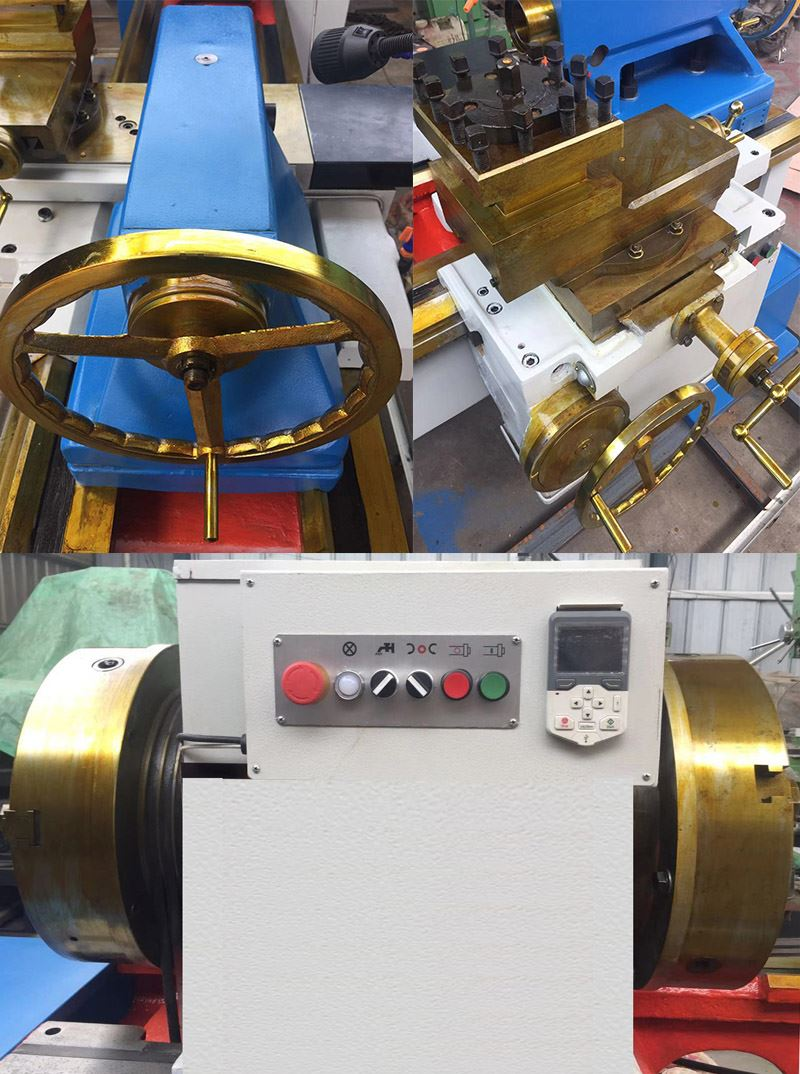

Details of Vehicle Drive Shaft Lathes
