Feature of Rotor Machine Balancing Range of Application This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool ,...
Availability: | |
---|---|
Quantity: | |

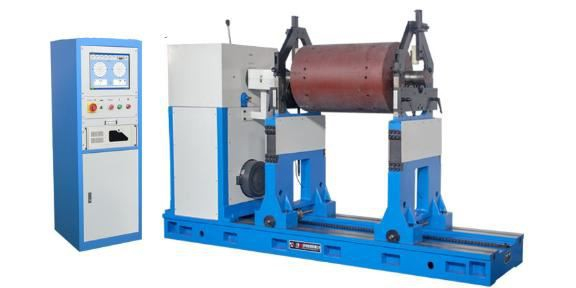

Feature of Rotor Machine Balancing
Model | Unit | SFQ-3000 H |
Monitor | JP-580 LCD | |
Max weight of workpiece | kg | 3000 |
Max diameter of workpiece | mm | Φ 2100 |
Distance between two support bearings | mm | 160-2280 |
Journal diameter scope of workpiece | mm | Φ25~240 |
Diameter scope of driving belt | mm | Φ50~900 |
Balancing workpiece rotary speed (when the work piece with the diameter Φ100mm) | r/min | 921,1329 r/min (Variable frequency speed regulation) |
Motor power | kW | 7.5 |
Min achievable residual unbalance amount | mm/kg | 1 |
Imbalance amount (Uneven URR) decrease rate | 90% | |
Gross weight | kg | 1200 |
Package dimension (L x W x H) | mm | Case 1: 750x800x1980; Case 2: 2700x900x1700 |
Range of Application

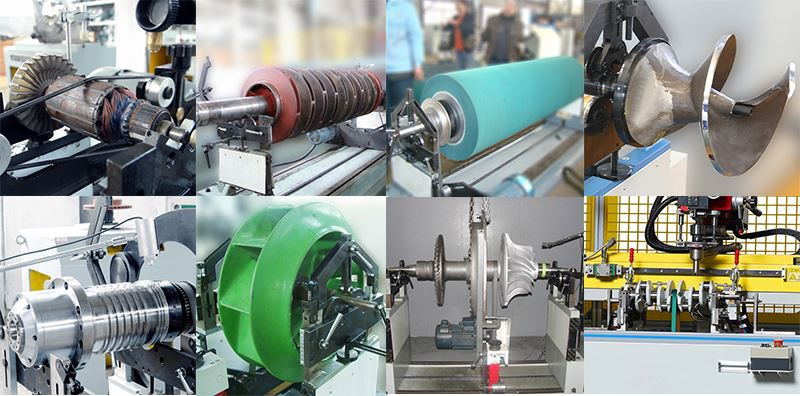

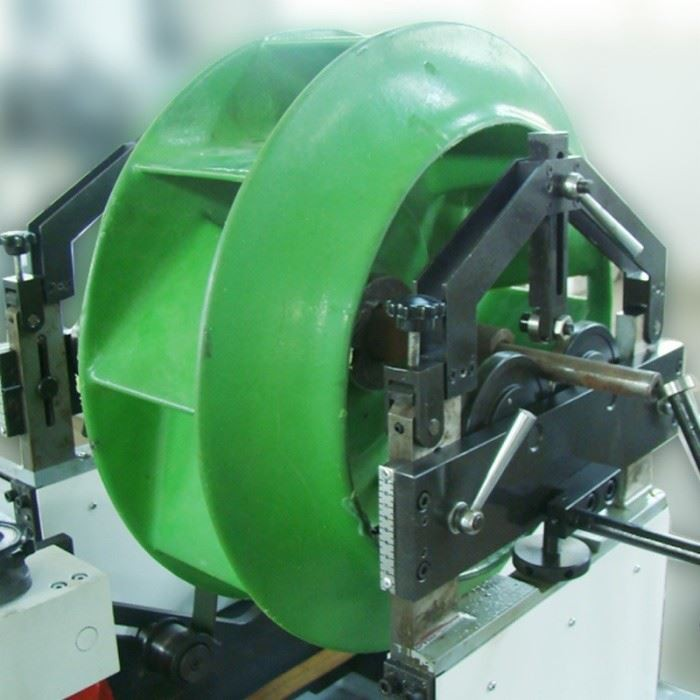

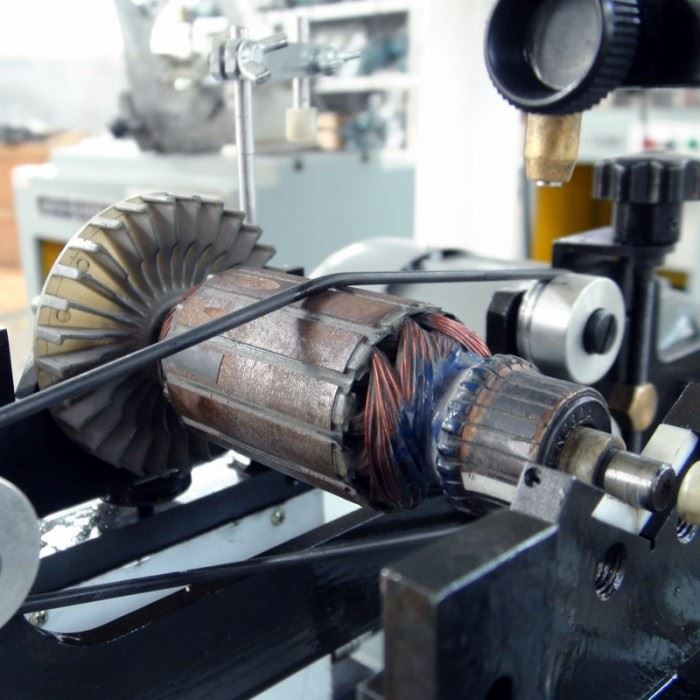

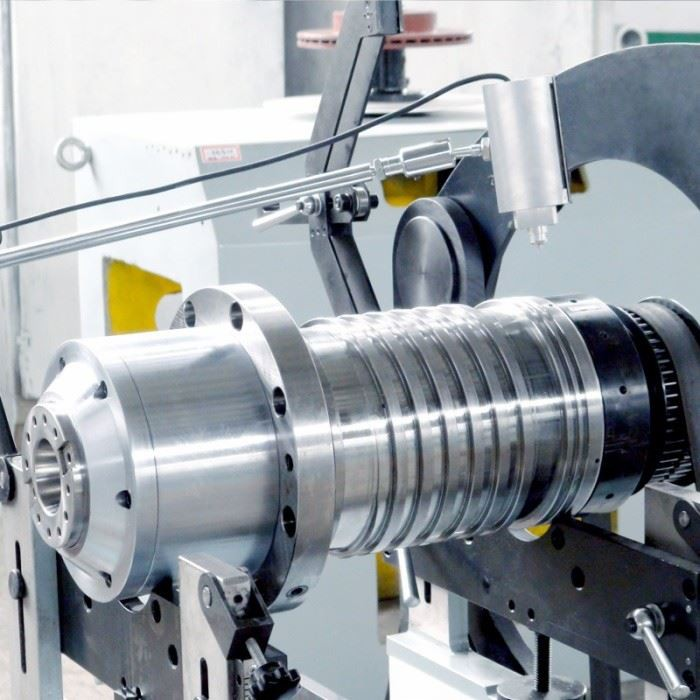

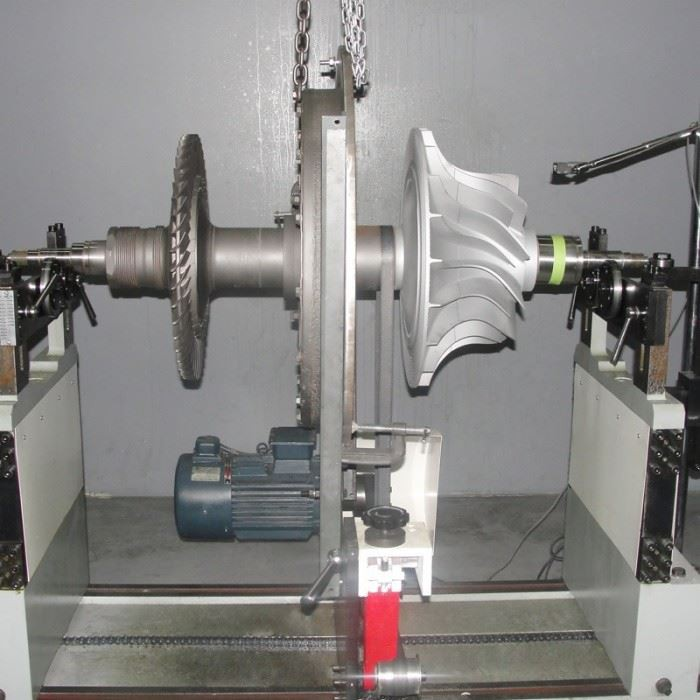

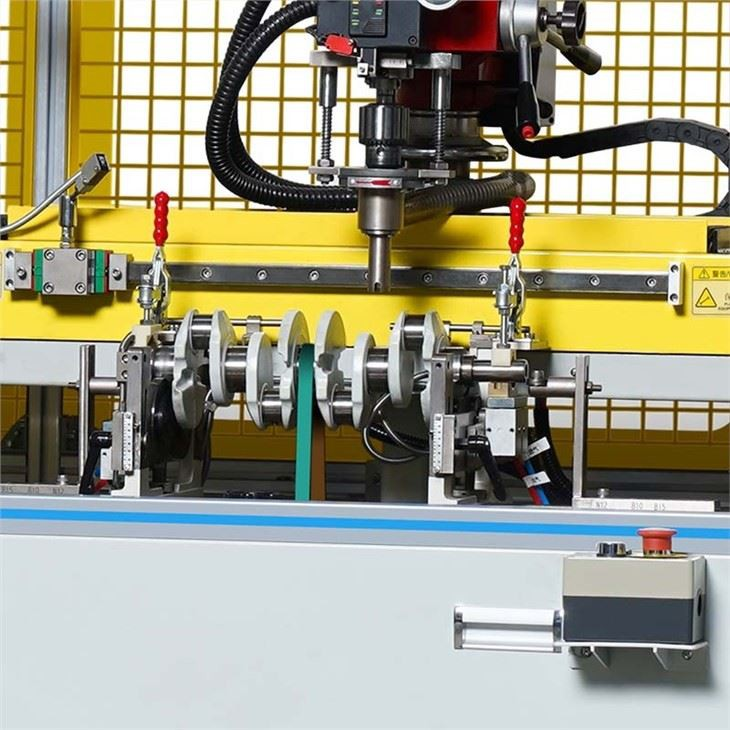

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Electrical Measuring System
