Introduction: Drive Shaft Balancer is mainly used in the production and repair of all kinds drive shaft factories. It can balance one piece / two pieces/ three pieces and four pieces drive shaft. Manual welders and safety cover can be attached. Parmameters
| Quantity: | |
|---|---|

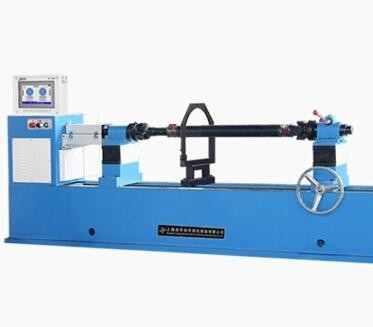

Introduction of Railway Transmission Balancing Mahchine:
Accurate and efficientIntuitive and easy to operate software

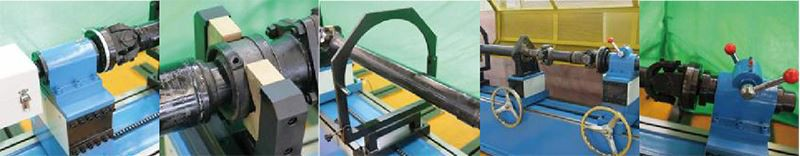

Reinforced external pedestals designed to withstand high axial loads on the splined connector
The middle pedestals of the machine are specially designed to accept the support bearings of a drive shaft, without disassembly
Balancing speeds up to 5000 rpm
Protective mechanisms that prevent the drive shaft from falling out of the machine
Angle indexing display in switch-off mode
Balancing reports are saved in database for later us
Software can be updated free in whole working life, language include: English, Spanish, Russia etcs.
24 month of warranty time.
Parmameters of Railway Transmission Balancing Mahchine
Technical data | SFHC-100 | SFHC-350 | SFHC-1100 | SFHC-3500 |
Max Mass of Workpiece (kg) | 100 | 350 | 1100 | 3500 |
Effective length of workpiece(mm) | 2000 | 2000 | 3000 | 3000 |
Max Diameter of Workpiece(mm) | Φ130 | Φ130 | Φ400 | Φ400 |
Shaft tube diameter of workpiece(mm) | Ø120 | Ø120 | Ø300 | Ø300 |
Balancing speed(mm) | 16001) | 16001) | 410-7501) | 410-7501) |
Motor Power(KW) | 1.52) | 2.22) | 32) | 5.52) |
Technical data | SFCT-100 | SFCT-350 | SFCF-100 | SFCF-350 |
Max Mass of Workpiece (kg) | 100 | 350 | 100 | 350 |
Effective length of workpiece(mm) | 4500 | 4500 | 4000 | 4000 |
Max Diameter of Workpiece(mm) | Φ130 | Φ130 | Φ130 | Φ130 |
Shaft tube diameter of workpiece(mm) | Ø120 | Ø120 | Ø120 | Ø120 |
Balancing speed(mm) | 32001) | 32001) | 32001) | 32001) |
Motor Power(KW) | 2.22) | 2.22) | 2.22) | 2.22) |
Universal joint torque(N.M) | 60 | 60 | 60 | 60 |

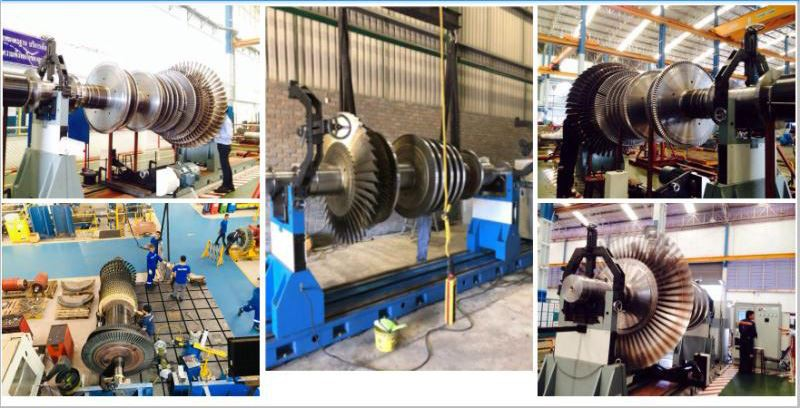

Successful Cases

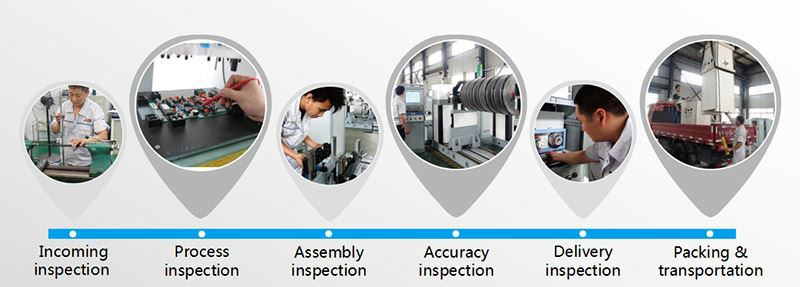

Strict Product Quality Control
Approved Certificates:
Customers

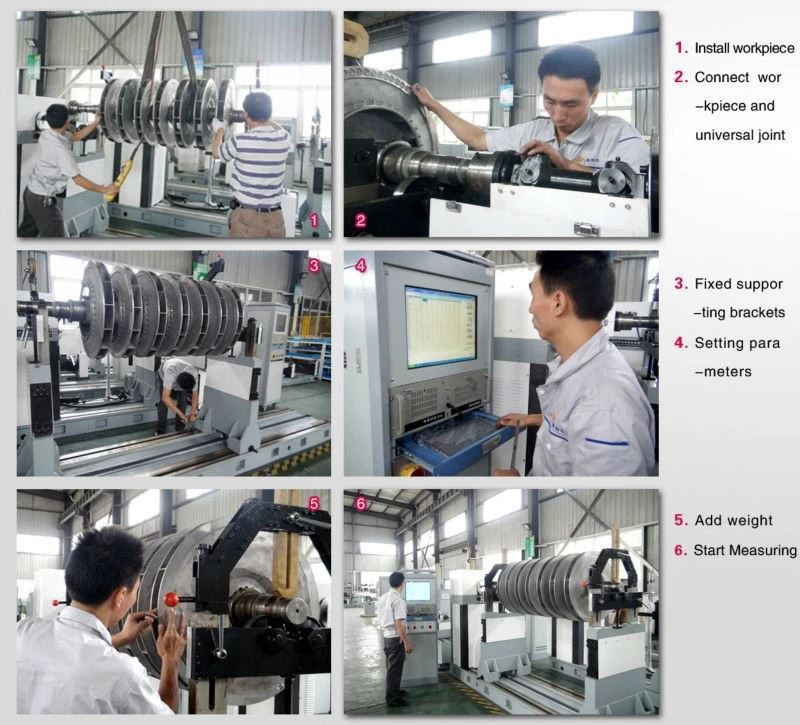

Workshop debugging

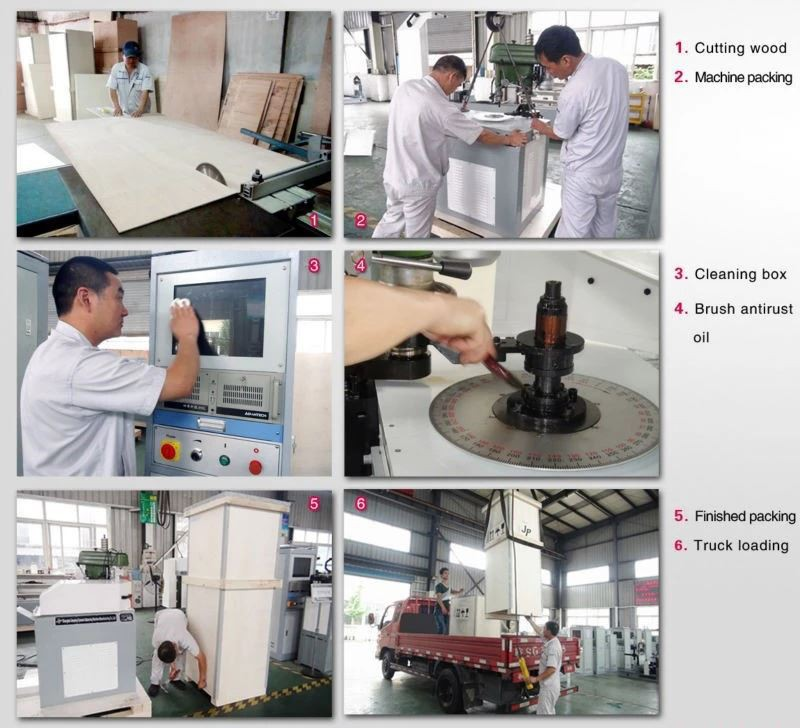

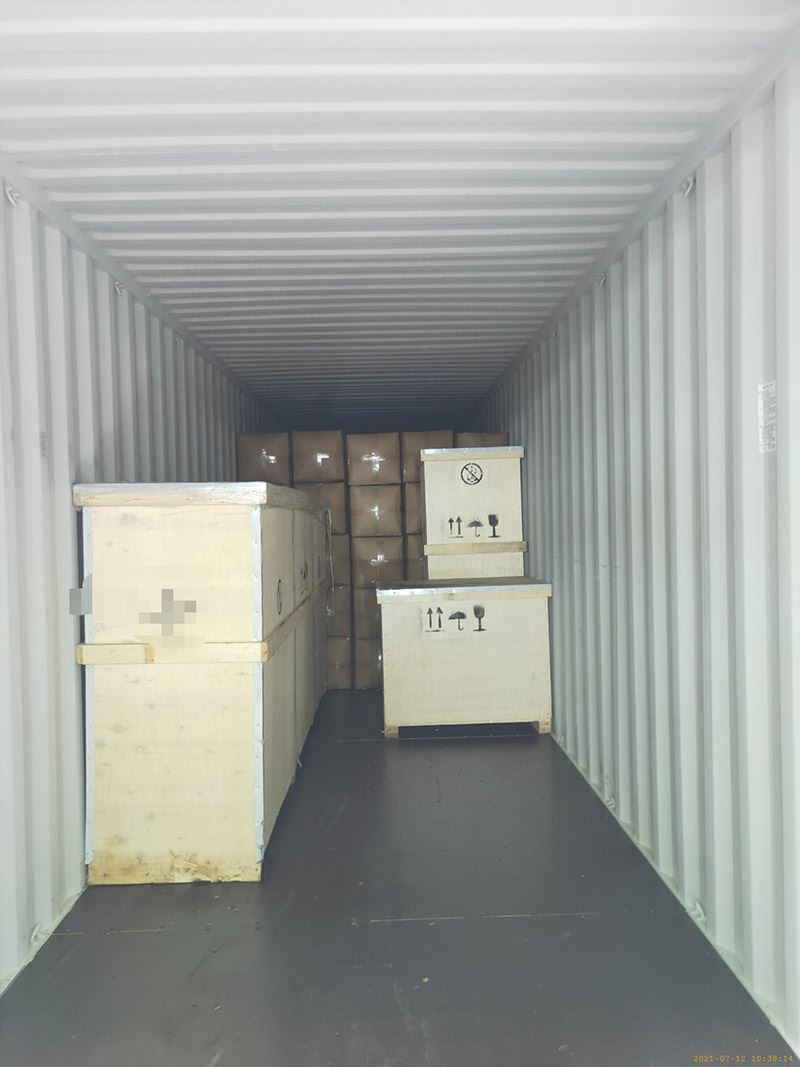

Packaging
