Production Description of Grinding Wheel Dynamic Balancing Machine • Specially designed,solid brackets can effectively transmit mechanical force • Durable and reliable sensor possesses high sensitivity and good linearity • Permanent calibration brings high accuracy • Special clamp offers higher...
| Quantity: | |
|---|---|

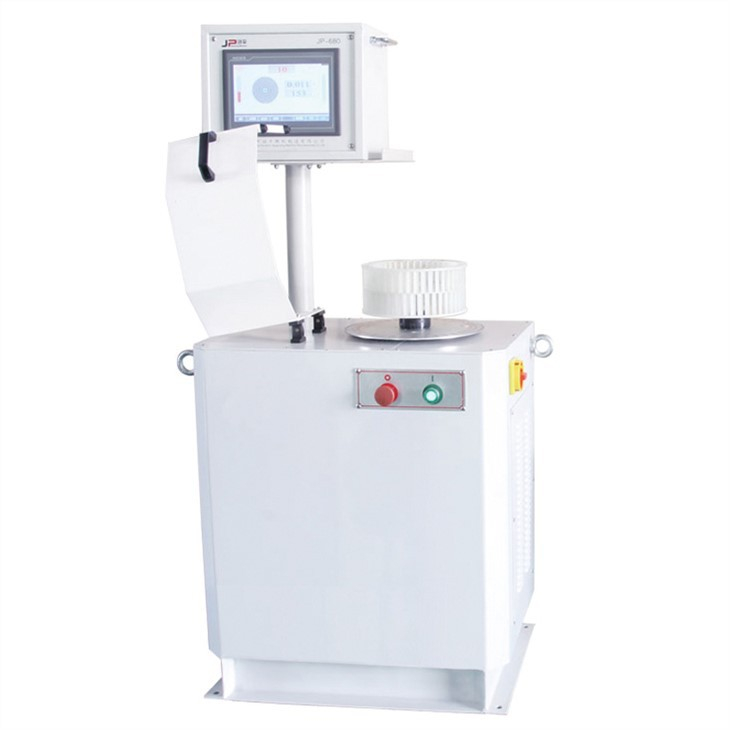

Production Description of Grinding Wheel Dynamic Balancing Machine
• Specially designed,solid brackets can effectively transmit mechanical force
• Durable and reliable sensor possesses high sensitivity and good linearity
• Permanent calibration brings high accuracy
• Special clamp offers higher accuracy and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• As the customer's request,the de-weighting system can be equiped
Range of Application of Grinding Wheel Dynamic Balancing Machine

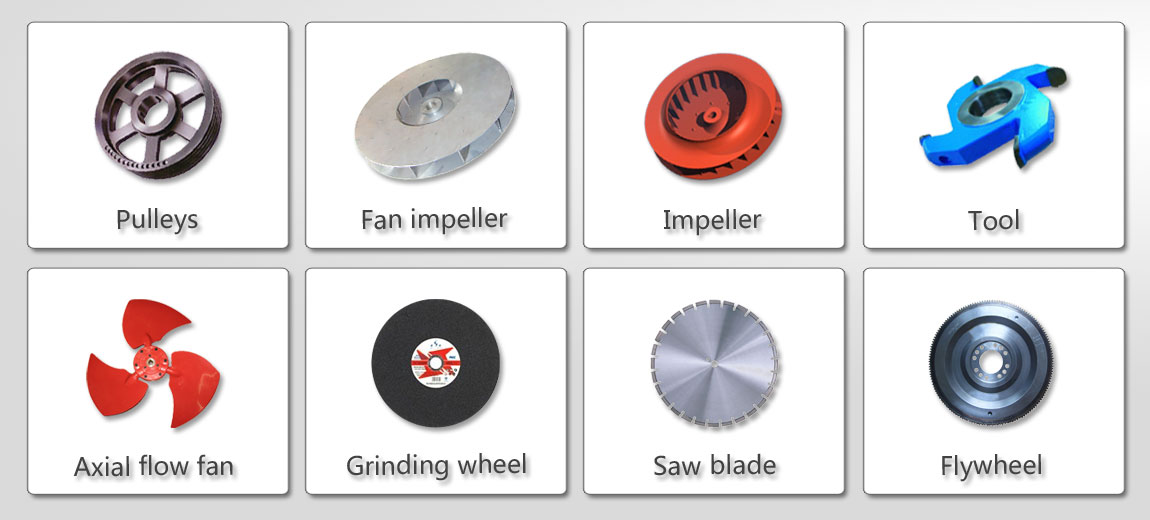

Mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc , saw blade, brake, tool, torque converter , belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.

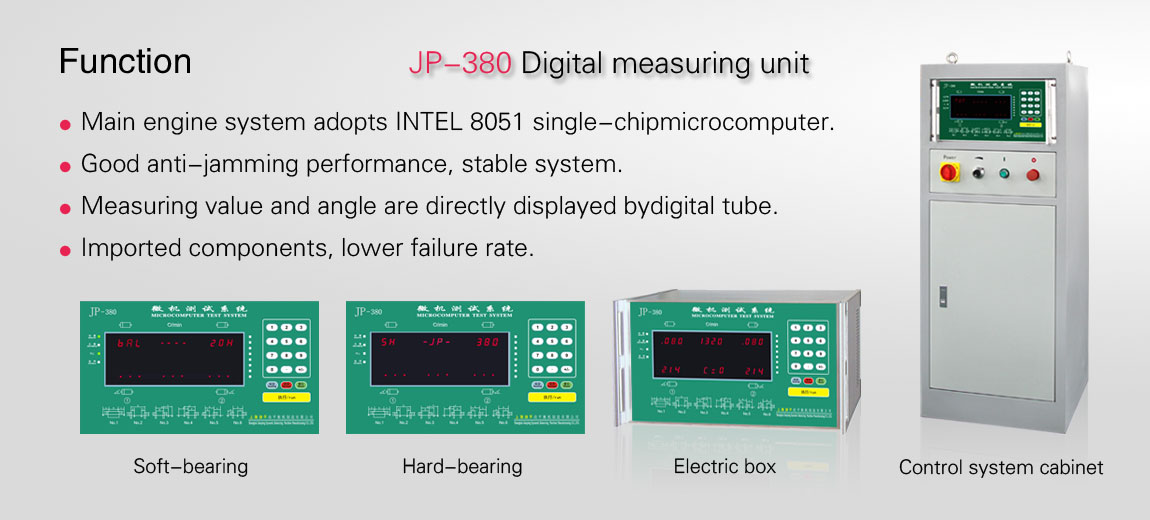

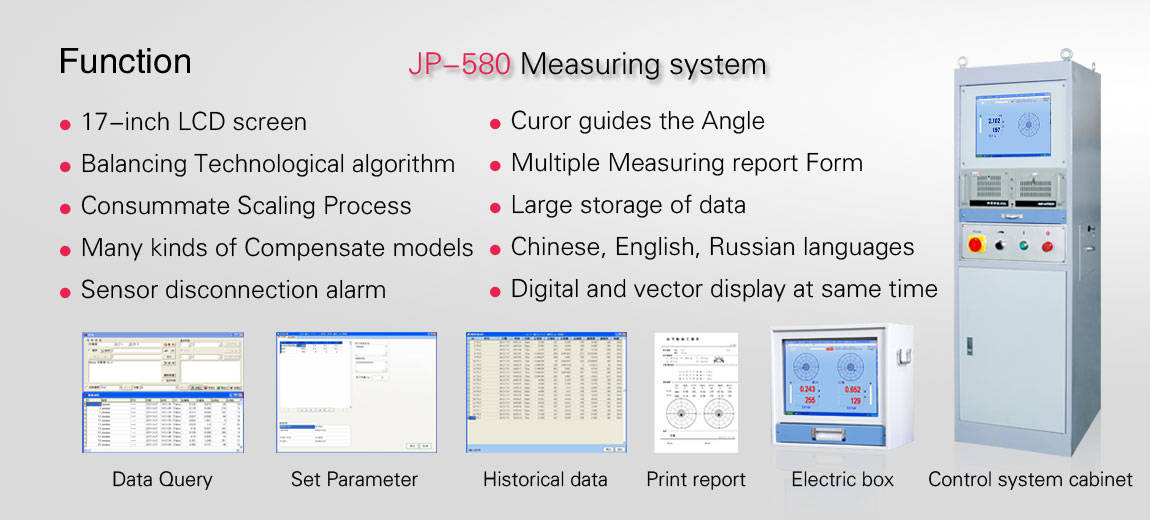

Electrical Measuring System (Option)
Production Parameters
Technical data at a glance | SFLD-5 |
Weight of Workpiece (kg) | 5 |
Max. Outer Diameter of Workpiece (mm) | 350 |
Height of Workpiece (mm) | 120 |
Rotating Speed of Main Shaft (r/min ) | 900 |
Motor Power (KW) | 0.18 |
Min Achievable Residual Unbalance Amount. (e mar ) | 2g· mm/kg |
Strict Product Quality Control
Company Certificates:
Production Description of Grinding Wheel Dynamic Balancing Machine
• Specially designed,solid brackets can effectively transmit mechanical force
• Durable and reliable sensor possesses high sensitivity and good linearity
• Permanent calibration brings high accuracy
• Special clamp offers higher accuracy and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• As the customer's request,the de-weighting system can be equiped
Range of Application of Grinding Wheel Dynamic Balancing Machine
Mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc , saw blade, brake, tool, torque converter , belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.
Electrical Measuring System (Option)
Production Parameters
Technical data at a glance | SFLD-5 |
Weight of Workpiece (kg) | 5 |
Max. Outer Diameter of Workpiece (mm) | 350 |
Height of Workpiece (mm) | 120 |
Rotating Speed of Main Shaft (r/min ) | 900 |
Motor Power (KW) | 0.18 |
Min Achievable Residual Unbalance Amount. (e mar ) | 2g· mm/kg |
Strict Product Quality Control Company Certificates:
