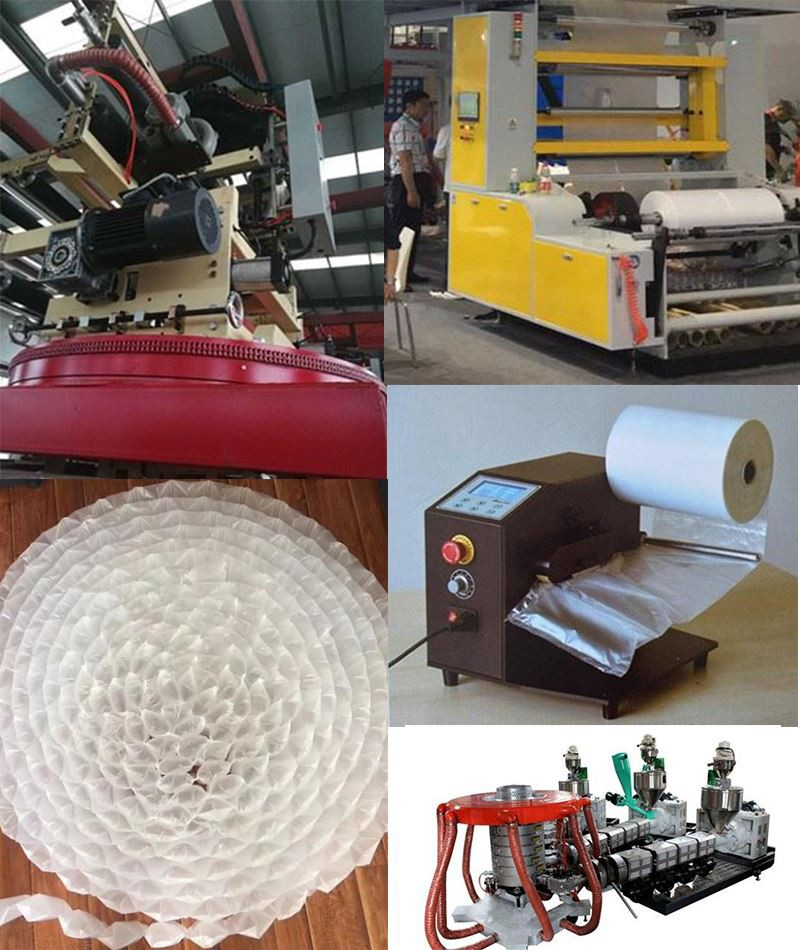

Application of Mini Air Sealed Bag Film Blowing Machines The mini air sealed bag film blowing machine mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao,...
| Quantity: | |
|---|---|

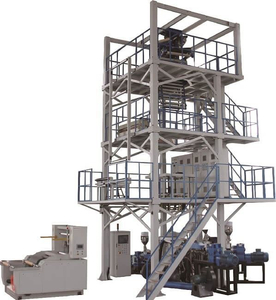

Introduction of Blown Film Extrusion Machine
The A-B-A blown film machine consists of two extruders, normally of two different sizes. The most common ones today are the combination of a 45mm screw diameter together with a 55mm for T-shirt bag production. For garbage bags, normally a 55mm screw diameter with a bigger 65mm is used. In the A-A outer layer, normally 20% of CaCO3 is used, with some additional of color masterbatch, LLDPE and a larger percentage of HDPE. The B layer can be used with larger percentage of CaCO3 with HDPE raw material. In-house recycled pellets can also be used to the mixture.
Besides reducing a significant amount of raw material used in the formula, another advantage of the ABA machine is that the 3 layer film that it produces is 30% stronger than film produced by a mono layer extruder. The ABA machine is also much more economic comparing to an ABC three layer machine as it has one extruder less.
Parameter of Blown Film Extrusion Machine
Type of the machine | SJGM-Z50×30×2+55×30×1-1300 | SJGM-Z45×30×3-1100 | SJGM-Z55×30×2+ 50×30×1-1300 |
max film width | 800mm/1000mm | 600mm | 800mm/1000mm |
thickness of the film | 0.013mm-0.03mm | 0.013mm-0.03mm | 0.013mm-0.03mm |
max output | 50kg/h - 80kg/h - 50kg/h | 50kg/h-50kg/h-50kg/h | 80kg/h - 50kg/h - 80kg/h |
Extrusion Unit | |||
main motor | 22kw / 30kw / 22kw | 15kw / 18.5kw / 15kw | 30kw / 22kw / 30kw |
screw diameter | Φ50mm-Φ55mm-Φ50mm | Φ45mm-Φ45mm-Φ45mm | Φ55mm-Φ50mm-Φ55mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 | 0.24kw×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer |
Die Unit | |||
type of the diehead | stationary die | stationary die | stationary die |
die diameter | HDPE Φ80mm / Φ120mm | HDPE Φ80mm | HDPE Φ140mm |
air blower fan | 5.5kw | 4kw | 5.5kw |
Haul-Off Unit | |||
type of the tower | oscillating tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×1300mm | Φ210×1100mm | Φ210×1300mm |
haul-off motor | 1.5kw | 1.5kw | Φ213×1100mm |
height of the machine | 7m | 6.2m | 8m |
Winder Unit | |||
type of winder | Auto single winder | Auto single winder | Auto single winder |
winder roller dia.& width | Φ300×1300mm | Φ300×1100mm | Φ300×1300mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm |
Other Parts | |||
hot slitting and sealing knife | |||
EPC | EPC auto edge position control system | ||
Tension control system | Auto | ||

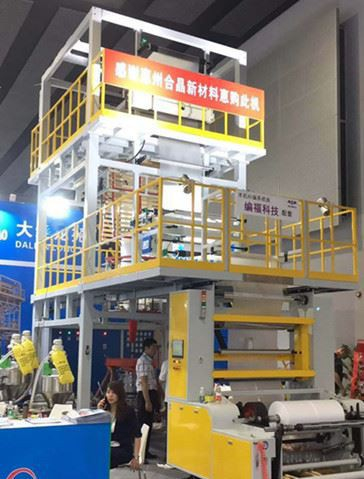

Workshop of Blown Film Extrusion Machine

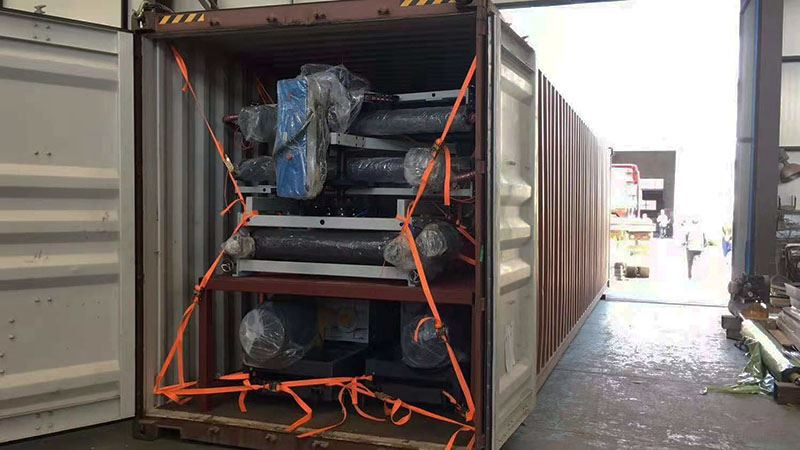

Delivery
