Feature of Conventional Double Colunm Vertical Lathe
1. The Conventional Double Colunm Vertical Lathe is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc.
3. The base and column use one-piece high quality castings.
4. Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency.
5. Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving.
6. Machine can equip optical ruler to realize full close loop control.
7. CNC system: SIEMENS, FANUC system.
Production Parameter of Conventional Double Colunm Vertical Lathe
The vertical lathe can be equipped with CNC controller and C axis for milling and boring function.
Parameter | Unit | C5225 | C5235 | C5240 | C5245 | C5250 | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 2250 | 2850 | 3600 | 3800 | 4200 | 5700 | 6300/7100 | 7100/ 7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 2500 | 3500 | 4000 | 4500 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500/3150 | 2000/2500 /3150 | 2000/2500 /3150 | 2500/3150 /4000 | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 10/16 | 10/16/20/32 | 25/32/20/32 | 25/32/50/63 | 25/32/40/50/63 | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 40000 | 40000 | 50000 | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 30000 | 35000 | 35000 | 35000 | 35000 | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 80000 | 80000 | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | stepless | step | step | step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.63-63 | 0.63-63 | 0.5-50 | 0.5-50 | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 1400 | 1900 | 2200 | 2450 | 2700 | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1000 | 1250/1400 | 1000/1250/1400 | 1000/1250/1400 | 1400/1600/2000 | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 350 | 350 | 300 | 300 | 350 | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30 | -15-+30 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 40×50 | 50×50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 55 | 55 | 75 | 90 | 110 | 132 | 132 | 160 | |
Weight | T | 38 | 45 | 50 | 55 | 70 | ||||||
Details of Conventional Double Turret Vertical Lathe

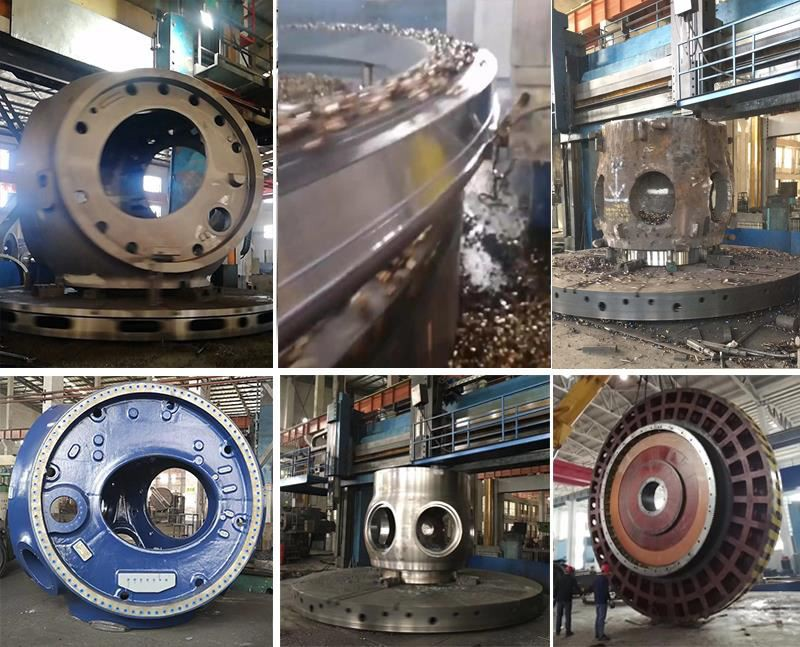

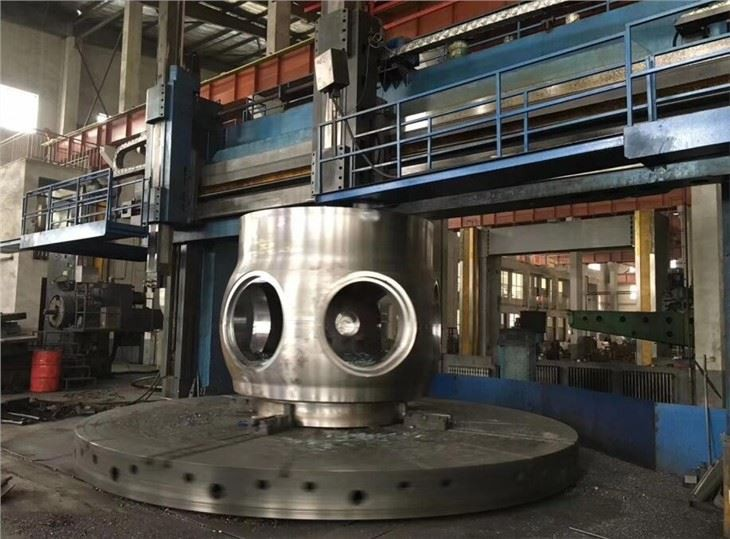

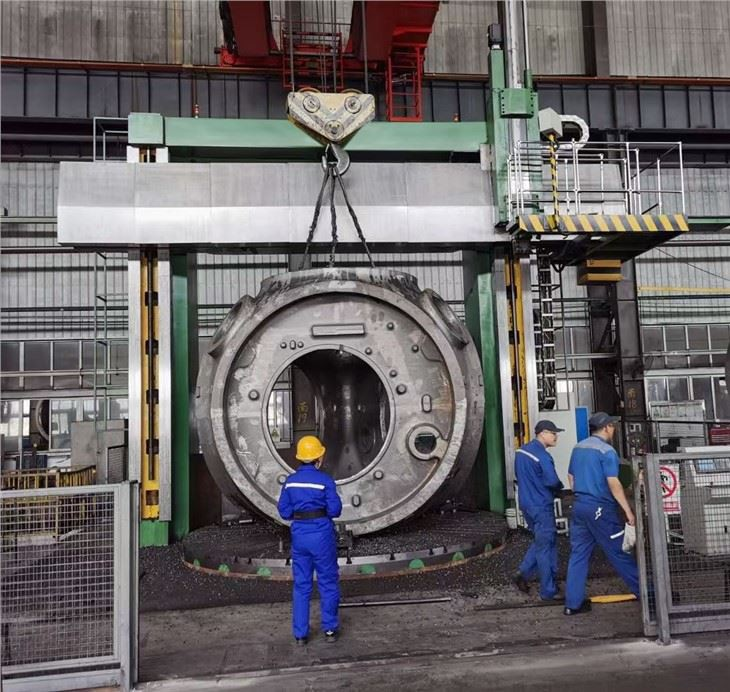

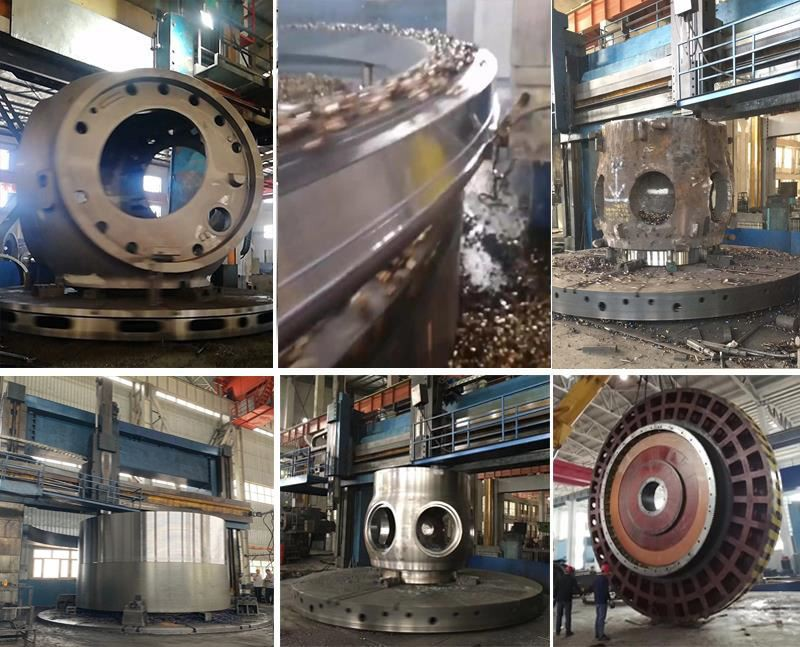

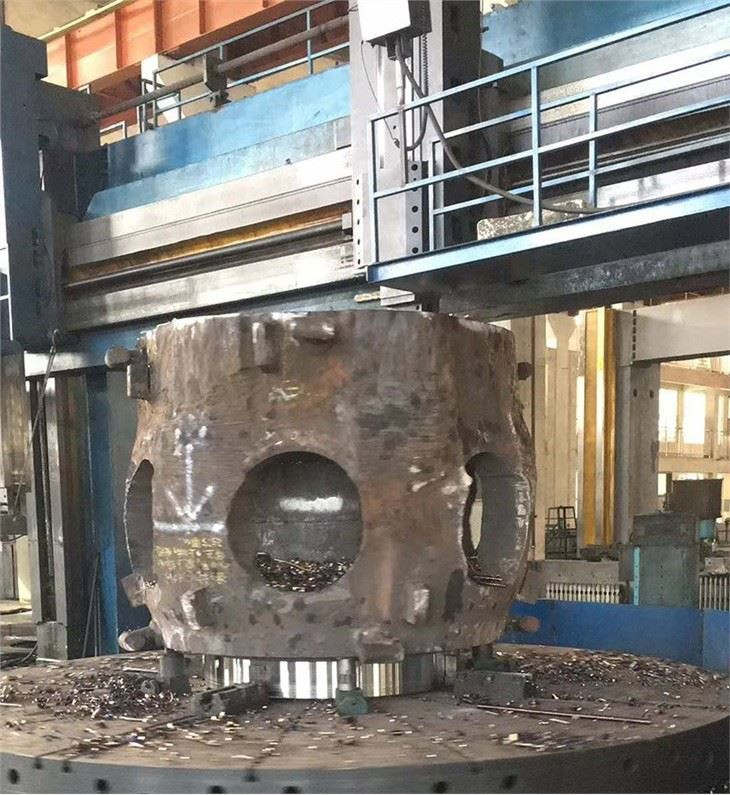

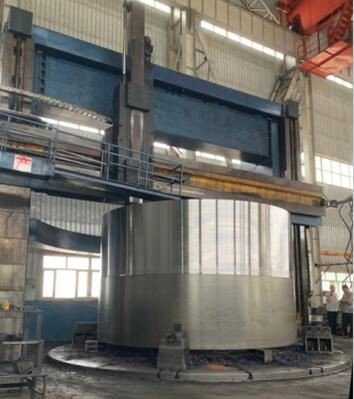

Workpiece
Work piece
Customers: ITT, SIEMENS
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.

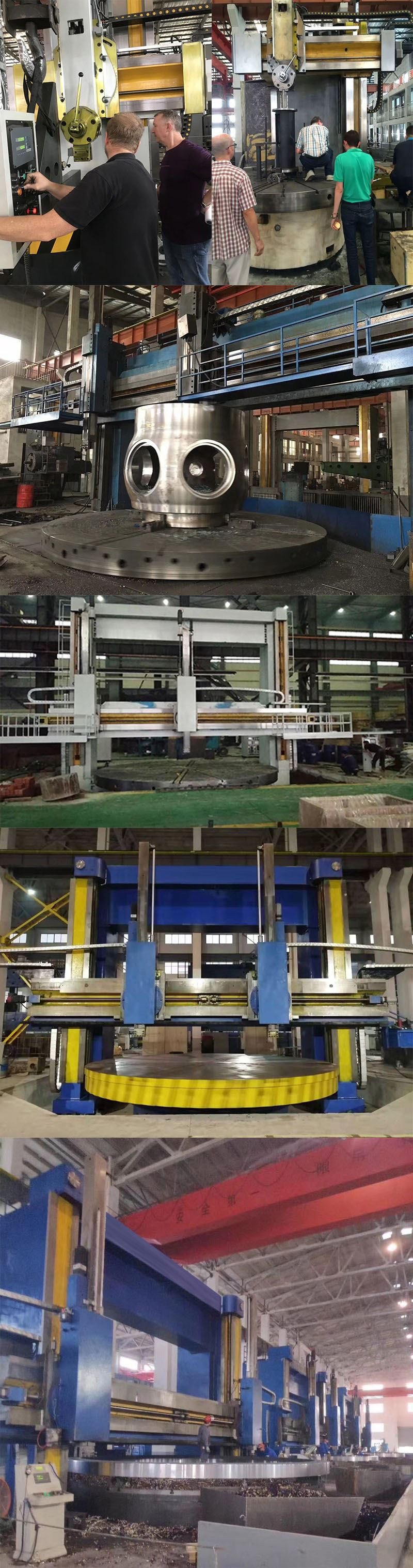

Serious and professional testing
Package and Shipping
