Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Products Specification
Parameter is can be customized
The CNC VTL Lathe Machine can be equipped with C axis for milling and boring function.
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Feature
1. CK series Single Column CNC VTL Lathe Machine is suitable for high-speed steel, hard alloy cutlery and ceramic cutlery, which can make rough and accurate turning for external cylindrical surface, internal and external conical surface, screw thread, circular arc surface and complex curved surface for black metal, colored metal and some nonmetal part.
2. Gearbox
Gear is made of 40 cr high quenching treatment, hardness reaches HRC40-45, tooth surface gear grinding, precision can be up to level 6, to reduce vibration and noise, improving the machining efficiency and reliability of the machine tool
3. Feed System
Feed system (X axis and Z axis) is driven by 16NM ac servo motor. to achieve horizontal and vertical feed of tool post and fast movement by directly connected with the ball screw via flexible coupling.
4. Beam
The interface of beam and column guide rail has PTFE wear-resistant guide soft belt, has a small friction coefficient, greatly extend the service life of the CNC VTL Lathe Machine
5. Electrical System
Electrical parts are Siemens or Schneider, ensure high reliability of machine.
The electrical components have sign with clear persistent writing.
Overall neat wiring, line number is complete, and clear last writing.
Hydraulic pressure system and components of automatic lubrication system adopt domestic licensed product or high quality products. The quality is reliable.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

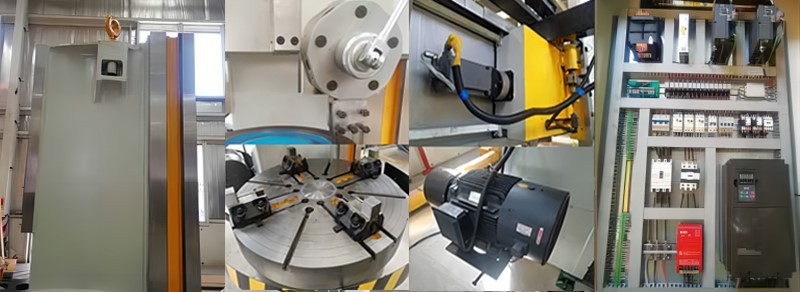

Production details

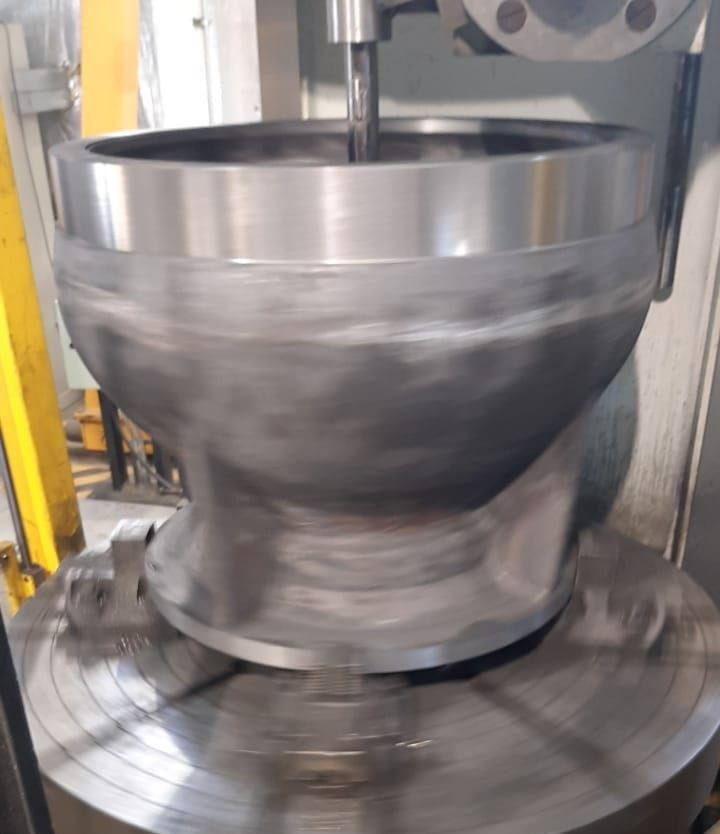

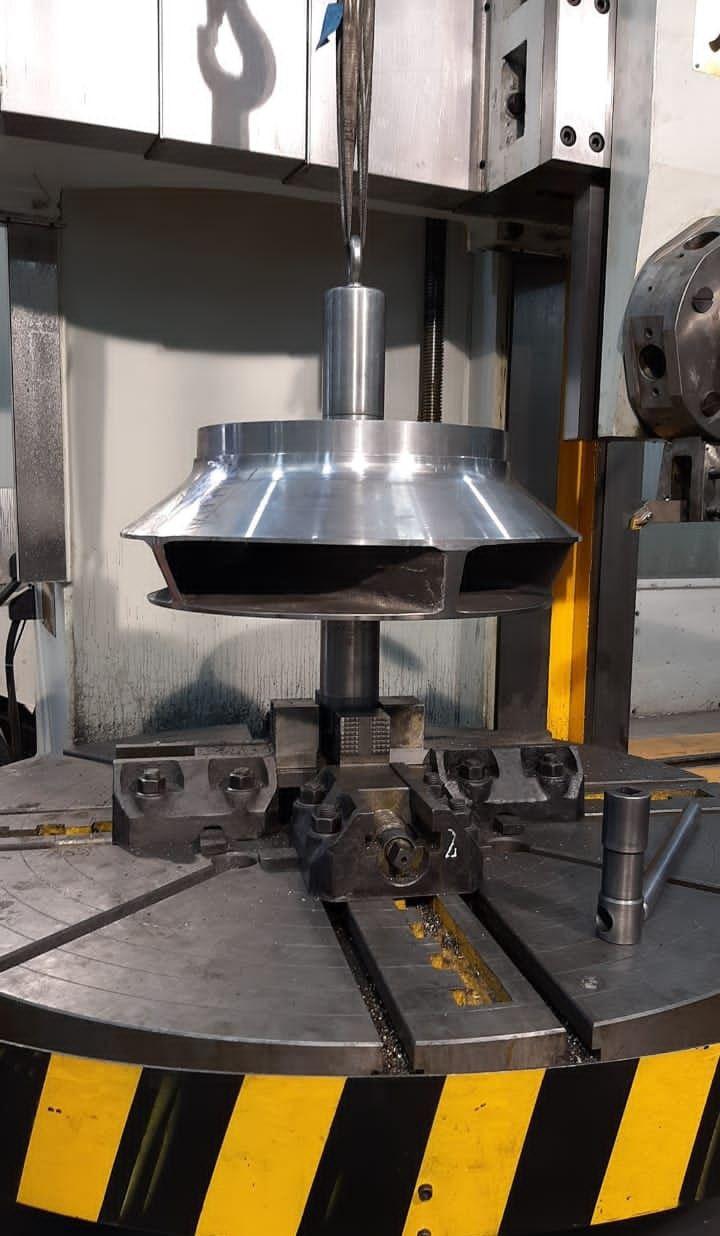

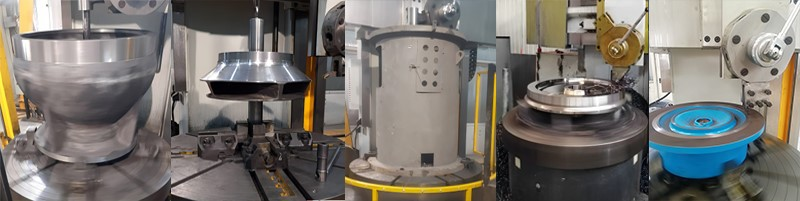

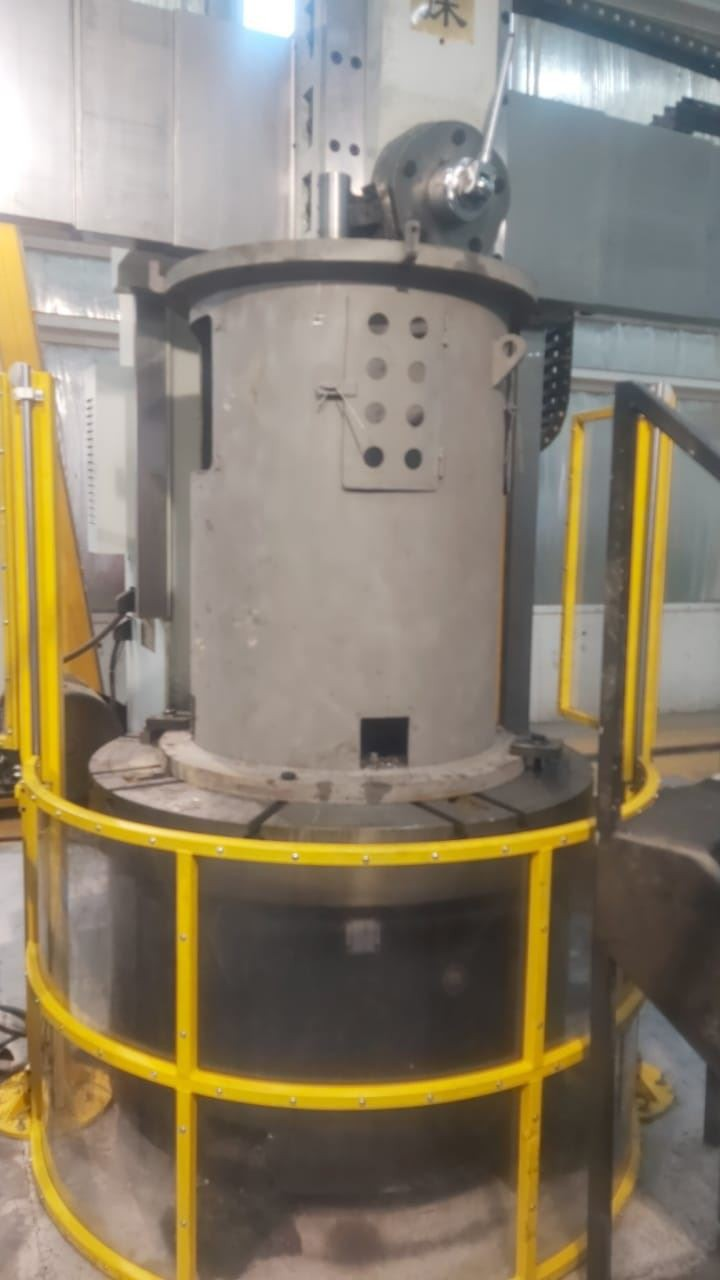

Work piece
Customers
Our customers include ITT, Siemens......
Various size meet your various needs.

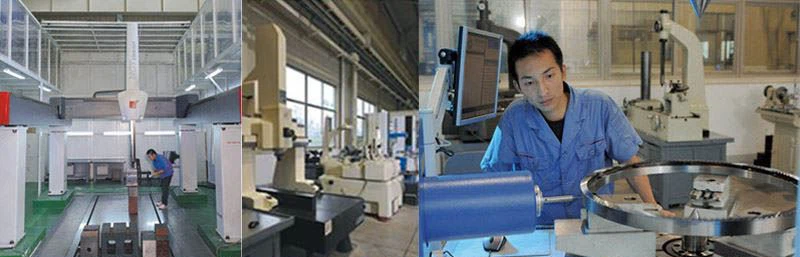

Testing professionally
Package
