Feature of Soft Bearing Balancing Machine
1.Manual loading or unloading
2.12 inch touch screen
3.Advanced balancing software
4.Automatic measuringdrilling and retesting
5.Twice correction or more can be excuted by removing-weight
6.Rigid bed-structure design ensures long service life
7.It is widely used to balance clutch flywheel pulley pump impeller etc

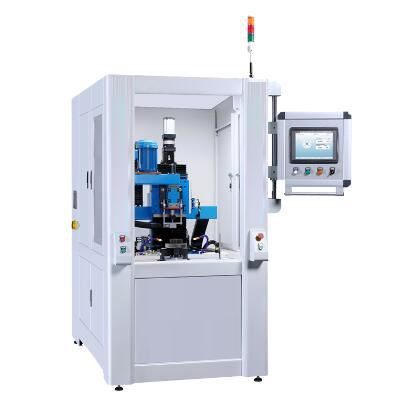

Parameter of Single-Station Auto-Drilling Balancing Machine
Parameters of Balancing Unit | PHLZ1-5 | PHLZ1-35 | PHLZ1-150 |
Mass of Workpiece(kg) | 5(clamp included) | 35(clamp included) | 150(clamp included) |
Max Height of Workpiece (mm) | 200 | 200 | 200 |
Max Diameter of Workpiece (mm) | 40-400 | 100-400 | 200-600 |
Balancing Speed（r/min) | 800 | 800 | 800 |
Motor Power（kw） | 0.75 | 1.5 | 7.5 |
Min Achievable Residual Unbalance Amount (g.mm/kg) | 3 | 3 | 3 |
Drilling Speed（r/min） | 1500 frequency conversion | 1500 frequency conversion | 1500 frequency conversion |
Cutting Spindle Motor Power(kw) | 0.75 | 0.75 | 1.5 |
Max Allowed Correct Times | 2 | 2 | 2 |
Machine Weight(ton) | 1.5 | 1.5 | 2 |
Dimensions(mm) | 950*1700*2000 | 950*1700*2000 | 950*1700*2000 |
Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Processing Period(s) | 8-12 | 8-12 | 15-20 |
Total Power（kw） | 7.5 | 8 | 15 |
Rotor thickness (mm) | 150 | 150 | 200 |
Operating Voltage（v） | AC:380External | AC:380External | AC:380External |
Drilling Method | Standard drill | Standard drill | Standard drill |
Balancing Machine Type | Hard bearig bracket | Hard bearig bracket | Hard bearig bracket |
Average Gas Consumption | 6 L/min | 6 L/min | 6 L/min |
Unbalance Reduction Rate | ≥95% | ≥95% | ≥95% |
Protection | Phase sequence protection. Overload protection. Pressure detection | ||
Strict Product Quality Control
Approved Certificates:
