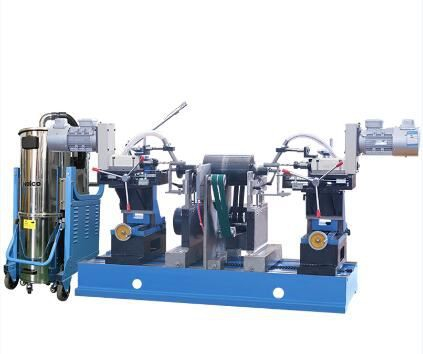

Feature of Motor Rotor Balancing Machine • Specially designed brackets,employ high wearing-resistance suporting chip • Durable and reliable sensor possesses good linearity • Upcut belt-driving ensures measurement of high precision and convenient installation and uninstallation of rotors • Servo...
| Quantity: | |
|---|---|
Feature of Motor Rotor Balancing Machine
• Specially designed brackets,employ high wearing-resistance suporting chip
• Durable and reliable sensor possesses good linearity

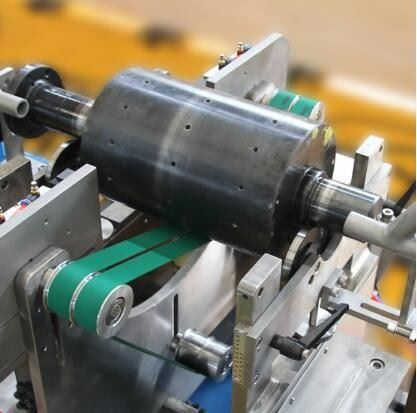

• Upcut belt-driving ensures measurement of high precision and convenient installation and uninstallation of rotors
• Servo drive,stepless acceleration and deceleration,auto-positioning of the unbalance location
• Advanced electrical measuring system and friendly man-machine interface
• Powerful statistical reporting capabilities
Area Industry1 rotor
Area Industry2 ac dc motor
Area Industry3 Electrical Motor
Area Industry4 Auto Fan Motor
Area Industry5 Car Motors
Area Industry6 model airplane motor
Area Industry7 Servo motor
Area Industry8 Starter Motor
Area Industry9 Lifting Motor
Area Industry10 armature
Feature of Motor Rotor Balancing Machine
Technical data at a glance | SFQ-160-XX |
Max Mass of Workpiece(kg) | 160 |
Max Diameter of Workpiece (mm) | Φ350 |
Distance Between Two Support Bearings (mm) | 200~650 |
Journal Diameter Scope of Workpiece (mm) | Φ 15~75 |
Diameter Scope of Driving Belt (mm) | Φ100-350 |
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 1260 Stepless speed regulation |
Motor Power (kw) | 1.5 Frequency conversion |
Length of Bed (mm) | 1500 |
Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg |
Strict Product Quality Control
Approved Certificates:
