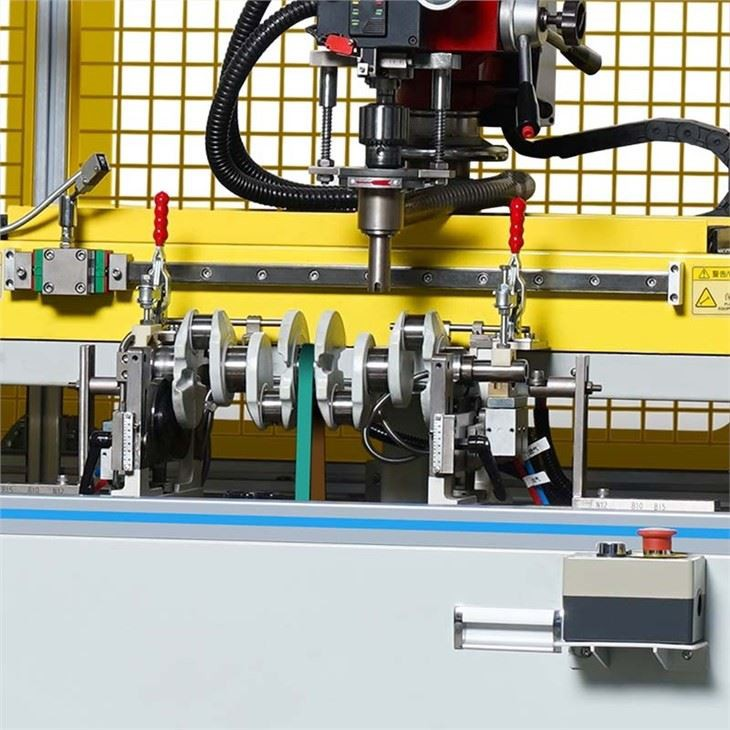

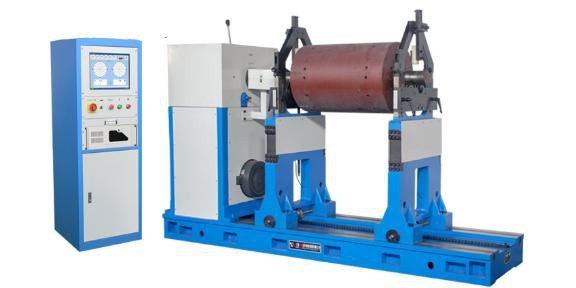

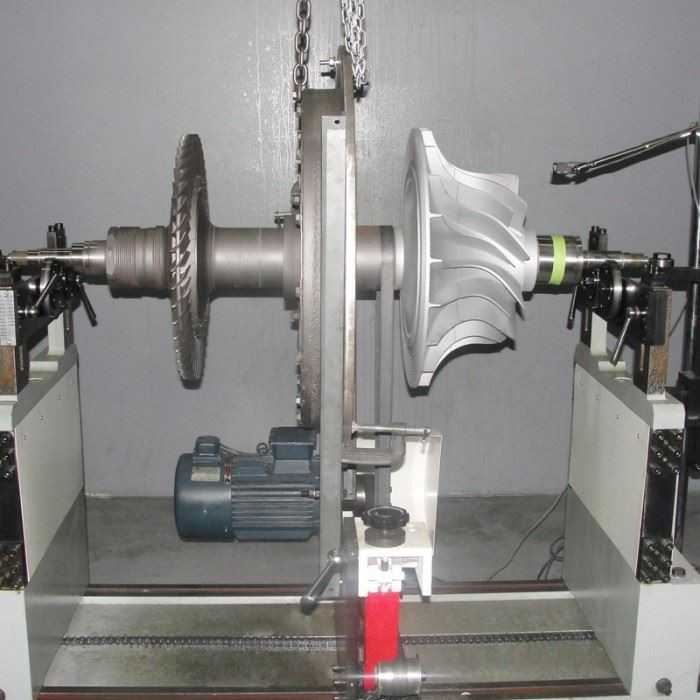

Feature of Dynamic Balancing Machine 1. Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving offers...
| Quantity: | |
|---|---|
Application:
1. The Dynamic Balancing Machine is to measure the size and position of the unbalanced amount of rotating objects (rotors). The main performance of the dynamic balancing machine is to use two comprehensive indicators, the minimum achievable residual unbalance and the reduction rate of the dynamic balancing machine. The former is the minimum value of the residual unbalance that the balancing machine can make the rotor reach, and it is a measure of the highest balance of the balancing machine. Ability indicator; the latter is the ratio of the reduced imbalance after a correction to the initial imbalance.

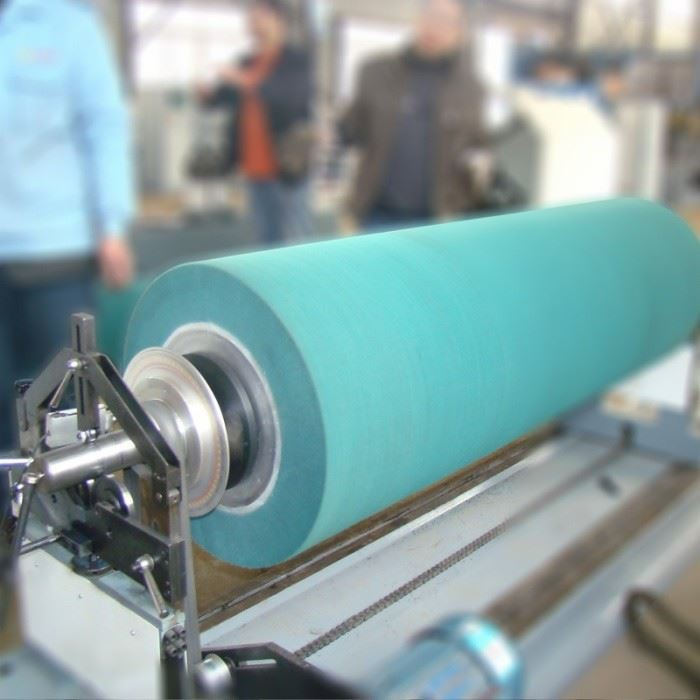

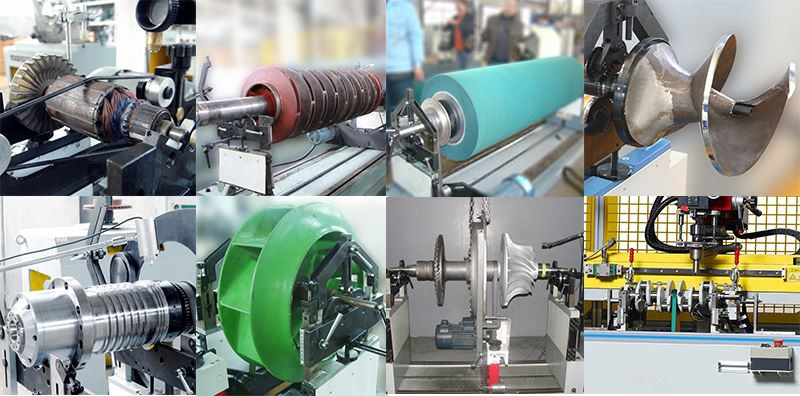

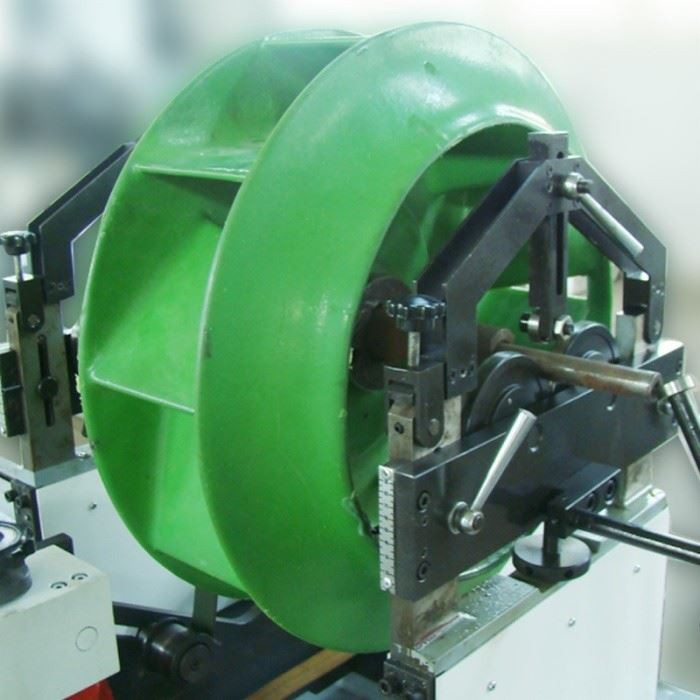

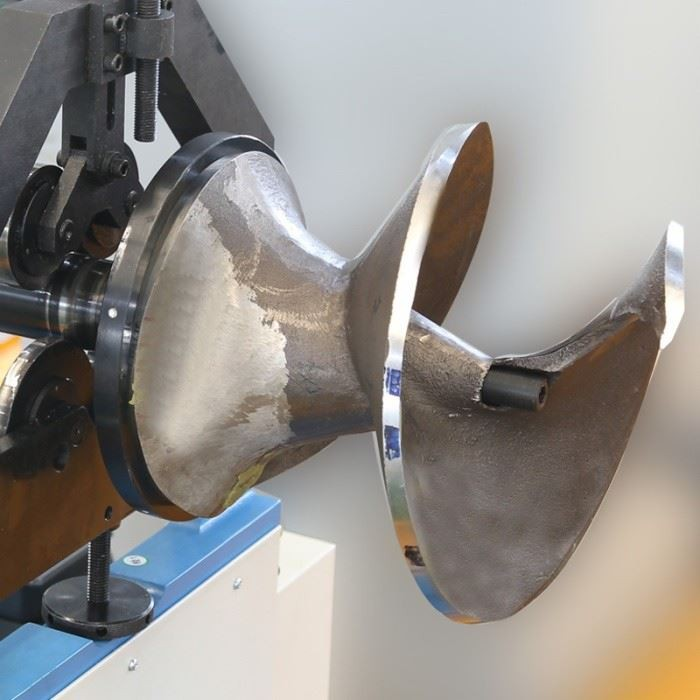

2. This Dynamic Balancing Machine is widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc ..
3. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency.
Parameter:
Technical data | PHQ-1000H | PHQ-2000H | PHQ-3000H | PHQ-5000 |
Max Mass of Workpiece(kg) | 1000 | 2000 | 3000 | 5000 |
Max Diameter of Workpiece (mm) | Φ1600 | Φ1800 | Φ2100 | Φ2400 |
Distance Between Two Support Bearings (mm) | 160~1780 | 160~1780 | 160~2280 | 500~2200 |
Journal Diameter Scope of Workpiece (mm) | Φ 25~1204) | Φ25~1204) | Φ25~1204) | Φ40~380 |
Diameter Scope of Driving Belt (mm) | Φmax700 | Φmax800 | Φmax900 | Φ50~1000 |
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 1330,19181) | 684,9861) | 921,13291) | 795,18531) |
Motor Power (kw) | 42) | 5.52) | 7.52) | 152) |
Strict Product Quality Control
Approved Certificates:

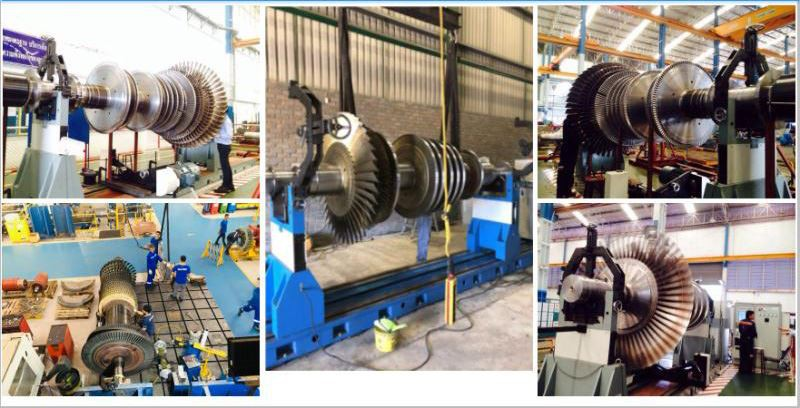

Customers
We provide clients with high-quality products, sufficient accessories and
good technical services. Any of our customers, including those who already
own our products, we can provide technical consulting and commissioning,
maintenance, modification, performance identification and other services.
As long as you have the needs, we will be happy to serve you!
Maintenance
1. During the warranty: free replace the Damaged or broke part by non-human causes
2. Over warranty :just pay components cost price, we have safety stock for all parts
3. Software updated lifetime for free when Manufacturer have new vesion
4. For simple operation issue, through whatsapp/video/phone call deal with directly
5. For difficult issue, invite engineer to help you repair or debugging onsite
6. We also can provide 365 days 24 hours online technical support
Warranty
The equipment is guaranteed for 24 months from the date of shipping.

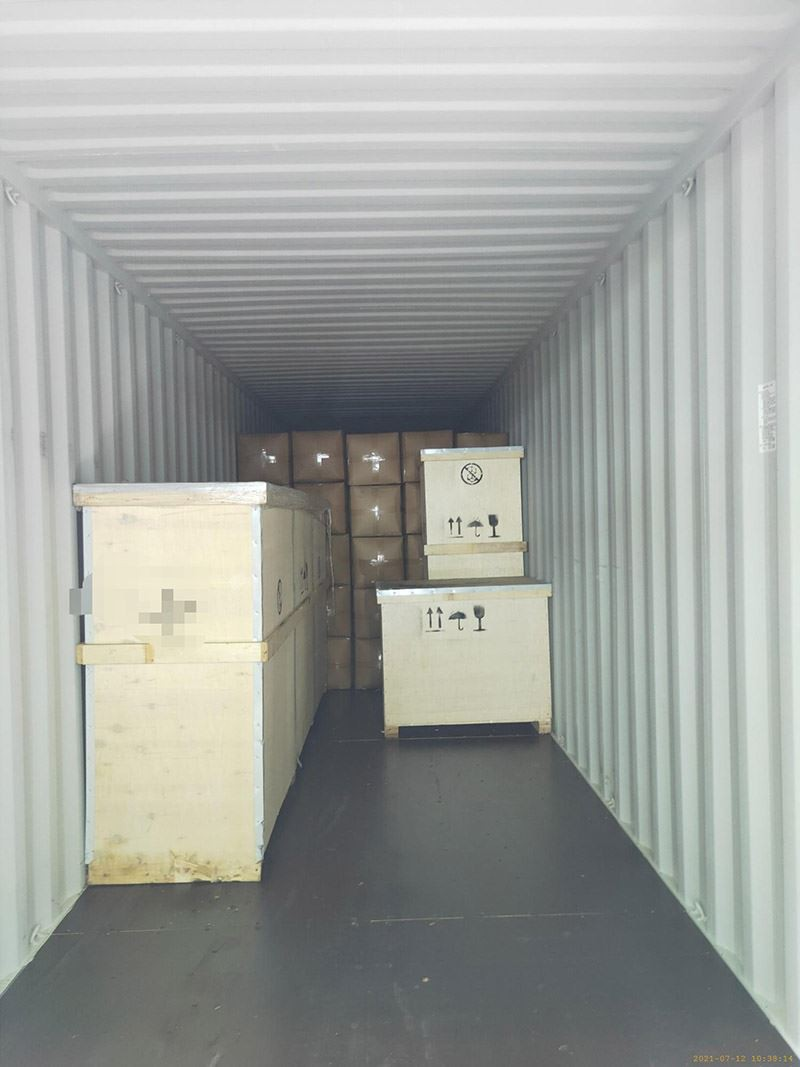

Package
Standard exporting wooden box with plywood veneer material non - fumigation,
Required logo will be painting on box like damp, fragile and etc...
if buyer have any special requirements, please discussing with seller in advance.

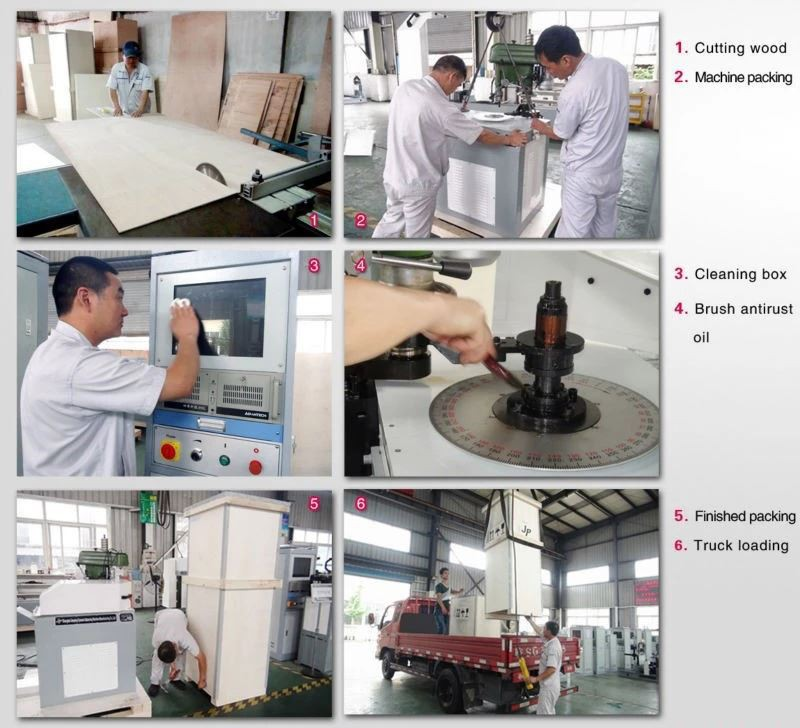

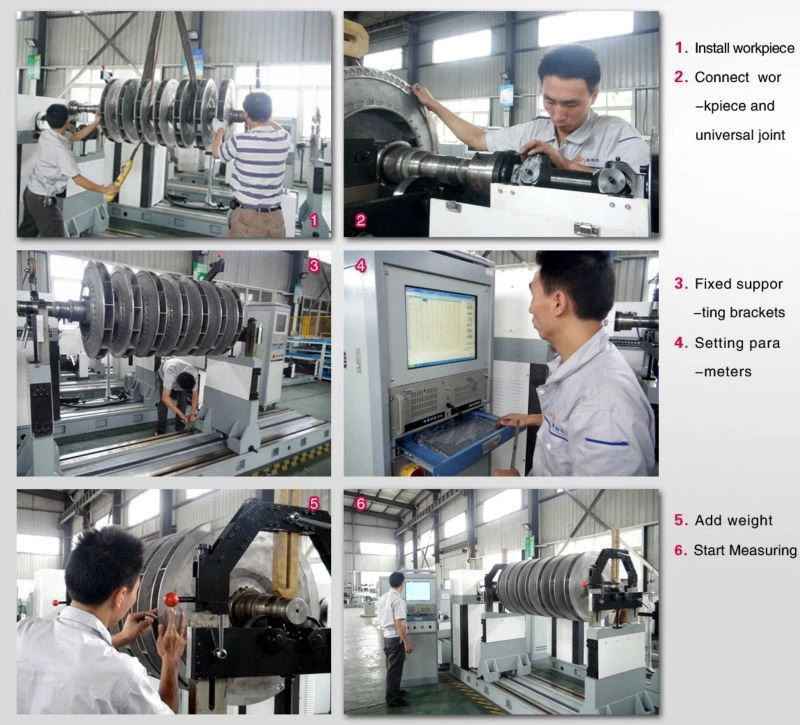

Workshop debugging
Packaging
